 Coin-Cell Battery
Dell™Inspiron™9300ServiceManual
Removing the Coin-Cell Battery
Replacing the Coin-Cell battery
Removing the Coin-Cell Battery


1. Follow the instructions in "Before Working Inside Your Computer."

2. Remove the hinge cover.

3. Remove the keyboard.

4. Remove the existing coin-cell battery:
a. Disconnect the battery cable connector from the system board.
b. Press the release latch on the side of the coin-cell battery compartment, and lift up the battery.
Replacing the Coin-Cell battery

1. Install the replacement battery:
a. With the positive side up, insert the battery at a 30-degree angle under the release latch, and then push the battery into place.
b. Connect the battery cable to the connector on the system board.

2. Replace the keyboard.

3. Replace the hinge cover.
CAUTION: Before you begin the following procedure, see the safety instructions in the Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
NOTICE: To avoid damaging the system board, you must remove the main battery before you begin working inside the computer.
NOTE: You may experience slight resistance when you lift the battery because of an adhesive underneath the battery that holds it in place.
1

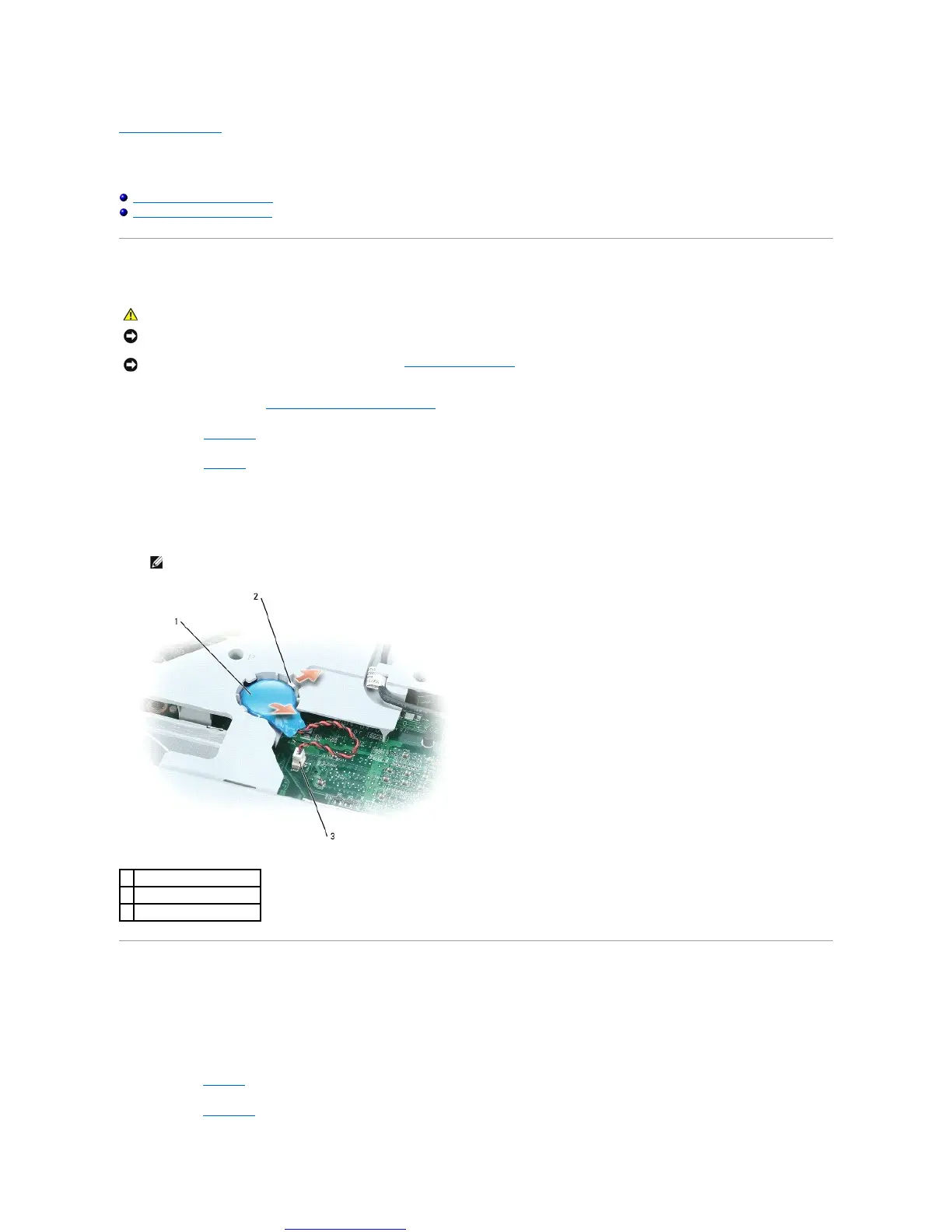

coin-cell battery
2
release latch
3
battery cable connector
