98 Adding and Replacing Parts
4
Install the replacement modem:
a
Connect the modem cable to the modem.
NOTICE: The connector is keyed to ensure correct insertion. If you feel resistance, check the connector and
realign the card.
b
Align the modem with the screw holes and press the modem down into the connector on the
system board.
c
Replace the screw that secures the modem to the system board.
5
Replace the modem cover.
Hinge Cover
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically
touching an unpainted metal surface (such as a connector on the back of the computer).

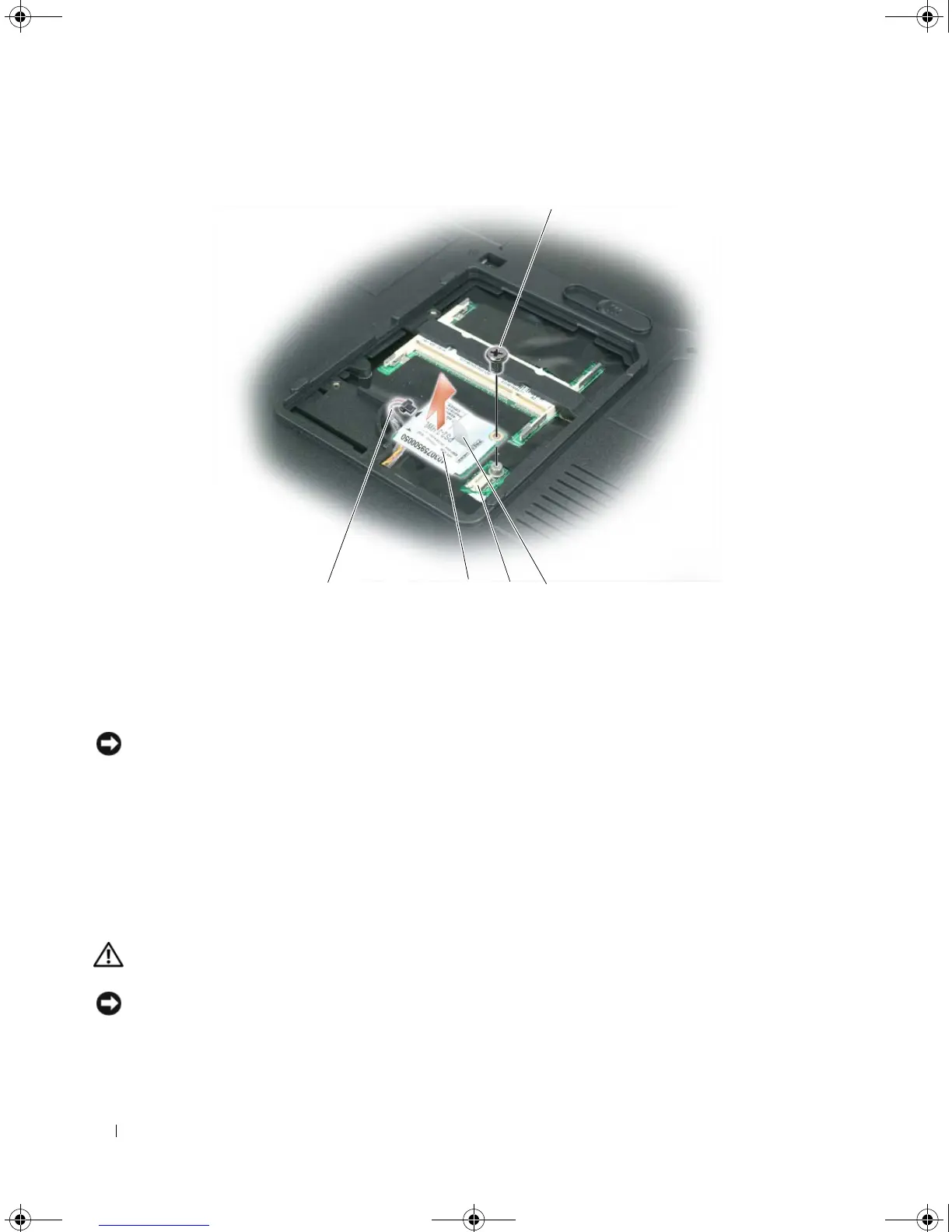

1 modem screw 2 modem pull-tab 3 modem connector on system board
4 modem 5 modem cable
1
24 35
book.book Page 98 Friday, December 21, 2007 3:22 PM
