Dell Latitude 7320 Detachable User Manual

Steps

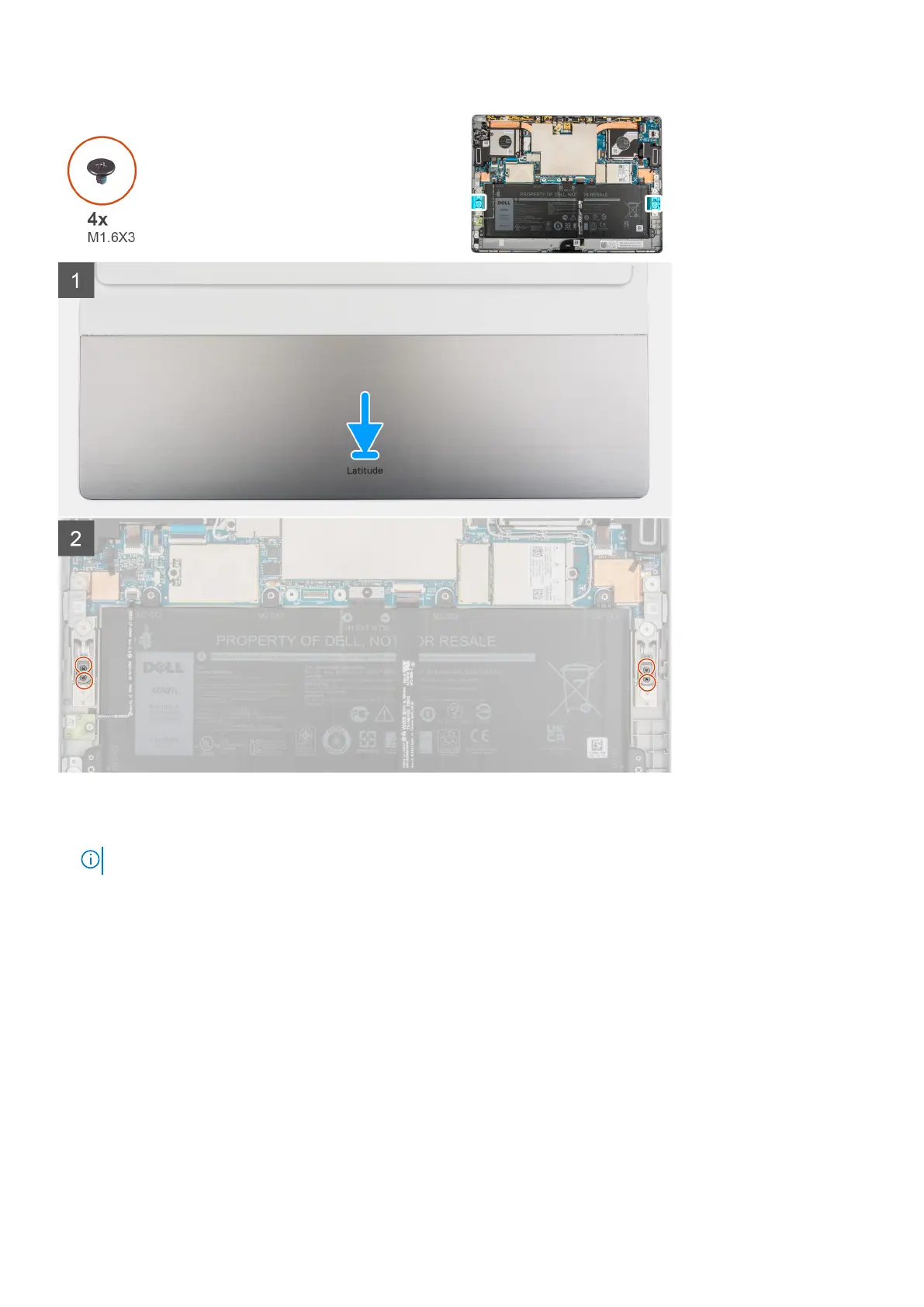

1. Align the screw holes on the kick stand with the screw holes on the frame, and flip the system.
NOTE: Ensure that the pins on the kick stand are inserted into the alignment holes on the kick stand hinges.
2. Replace the four (M1.6x3) screws that secure the kick stand to the kick stand hinges.
Next steps
1. Install the display assembly.
2. Install the SIM tray.
3. Follow the procedure in After working inside your computer.
38
Removing and installing components

Dell Latitude 7320 Detachable Specifications

General

Graphics	Intel Iris Xe Graphics
Wireless	Intel Wi-Fi 6 AX201, Bluetooth 5.1
Display	1920 x 1280
RAM	Up to 16GB LPDDR4x
Storage	Up to 1TB PCIe NVMe SSD
Operating System	Windows 10 Pro, Windows 11 Pro
Battery	40 Whr
Ports	2 x USB Type-C Thunderbolt 4, 1 x Audio Jack
Camera	5MP front camera, 8MP rear camera
Security	Fingerprint Reader, IR Camera for Windows Hello
Processor	11th Gen Intel Core i3/i5/i7
Dimensions	288.4 mm x 207.9 mm x 8.44 mm
