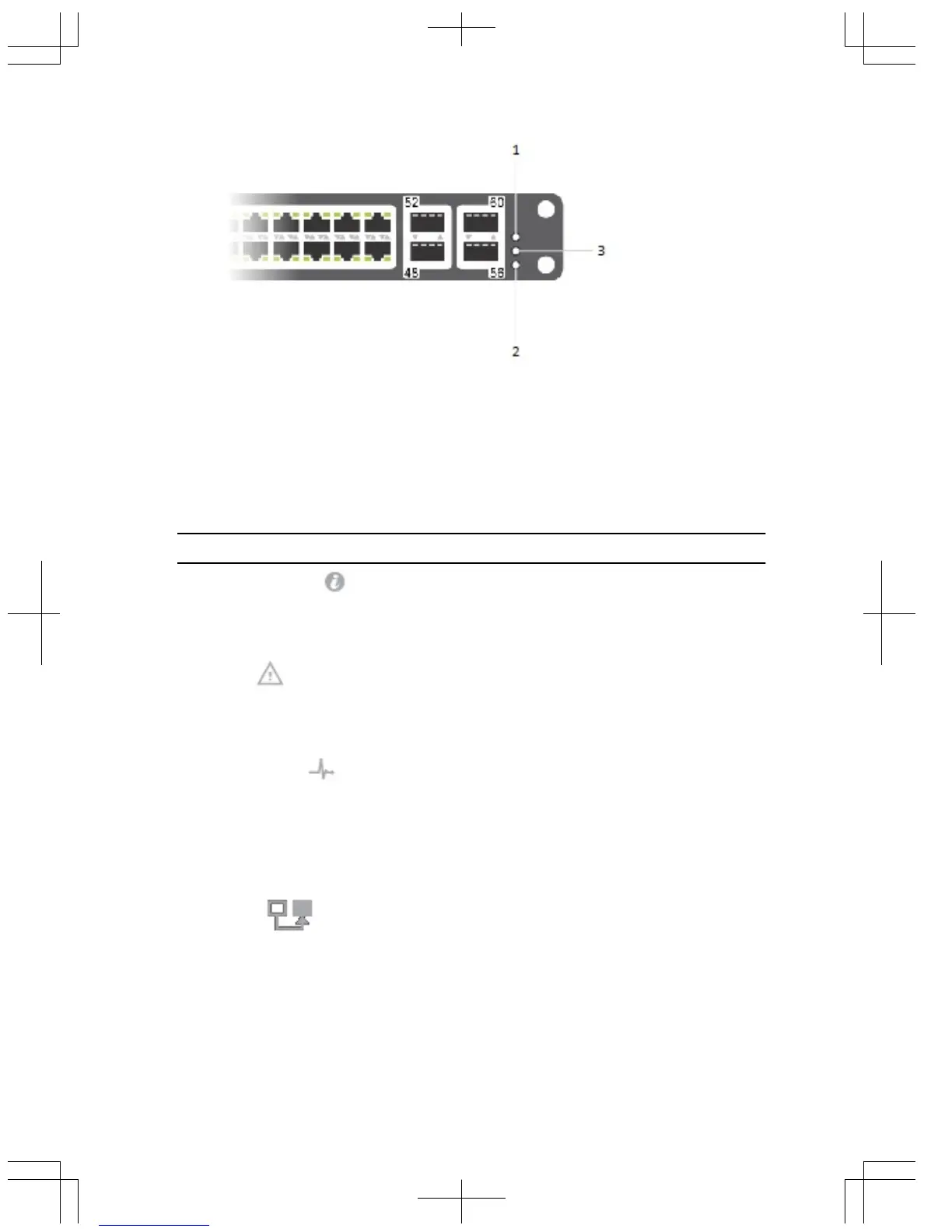

Figure 6. System LEDs (I/O Panel)
1. Locator beacon LED
2. Alarm LED
3. System status LED
Table 2. System LED Displays (Utility and I/O Panel)
Label LED Color/Display Description
Locator beacon LED
Off
Blue
No activity
System beacon/
locator
Alarm LED
Off
Amber solid
Red solid
No alarm
Minor alarm
Critical alarm
System status LED
Off
Green solid
Green blinking
Amber solid
No power
Normal operation
System is booting
System in card
problem state
Master LED
Green solid
Green blinking
Off
Switch in Stacking
Master mode OR
Switch in
Standalone mode
Switch in Stacking
Standby mode
10
