Installing a Fibre Channel Module
1. Use the grab handle on the Fibre Channel module to slide it into the switch module
slot.
2. Connect any network interface cables to the attached module.

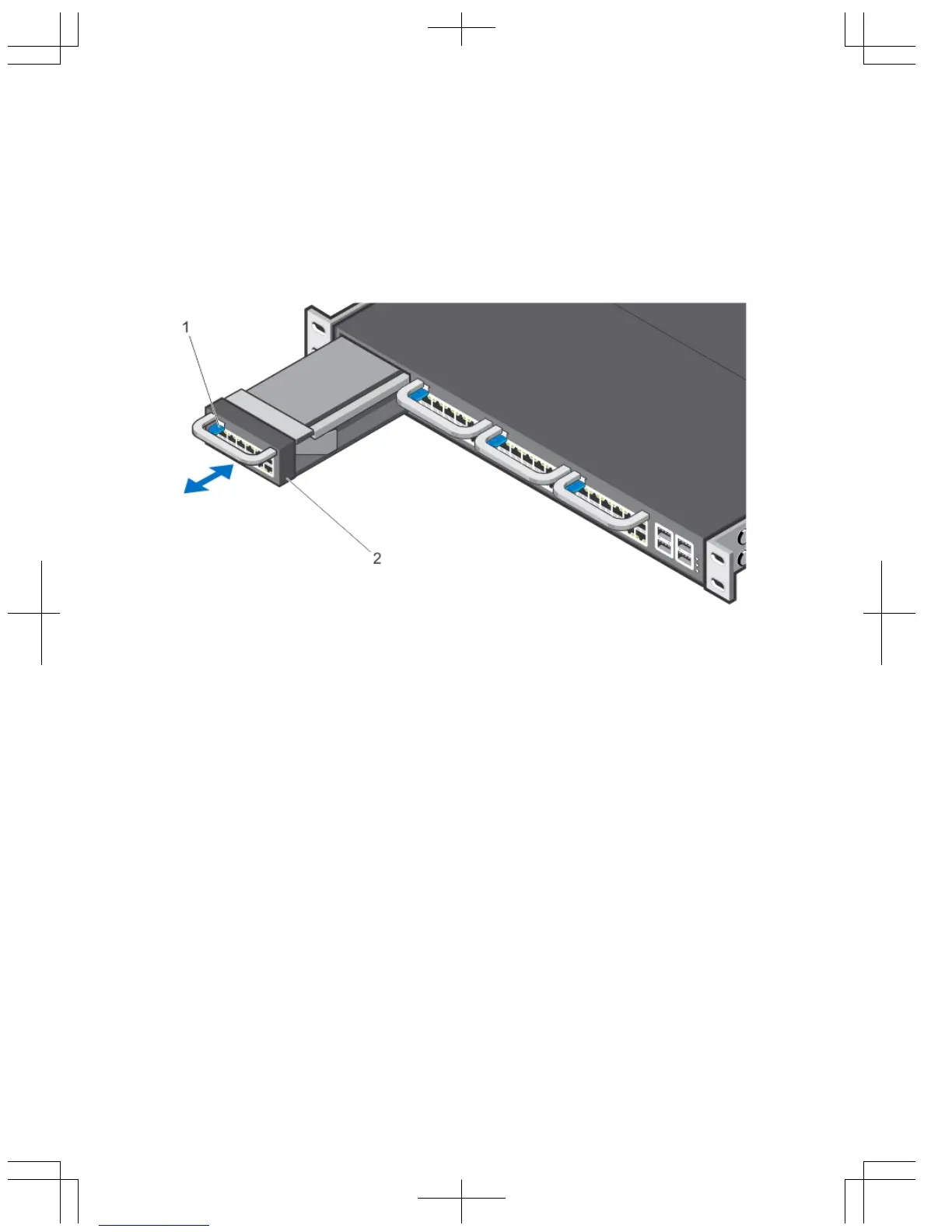

Figure 14. Installing a Fibre Channel Module
1. Release latch
2. Fibre Channel Module
Important Points to Remember for Installing an AC Power Supply
• The PSU slides into the slot smoothly. Do not force a PSU into a slot as this
action may damage the PSU or the S5000 chassis.
• The S5000 supports AC and DC power supplies with two air-flow directions (I/O
to Utility and Utility to I/O). The S5000 does not support mixing PSU types, that is,
you cannot replace an AC PSU with a DC PSU and an AC-R PSU with a DC-R
PSU. The fan airflow direction for both the PSUs must be the same.
• For AC PSUs, an illuminated translucent handle indicates the power status.
• To view the log messages, use the show logging command. For more
information, refer to the System Logs chapters of the
FTOS Command Line
22
