System Status
You can view S6000 status information in several ways, including LEDs and
boot menu options. You can also view status information through the command
line interface (CLI) show commands and with simple network management
protocol (SNMP). For more information about these options, refer to the FTOS
Command Line Reference Guide and FTOS Configuration Guide for the S6000
System.
As shown in
Figure 3-3
, the S6000 includes LED displays on both the I/O and
PSU side of the chassis.

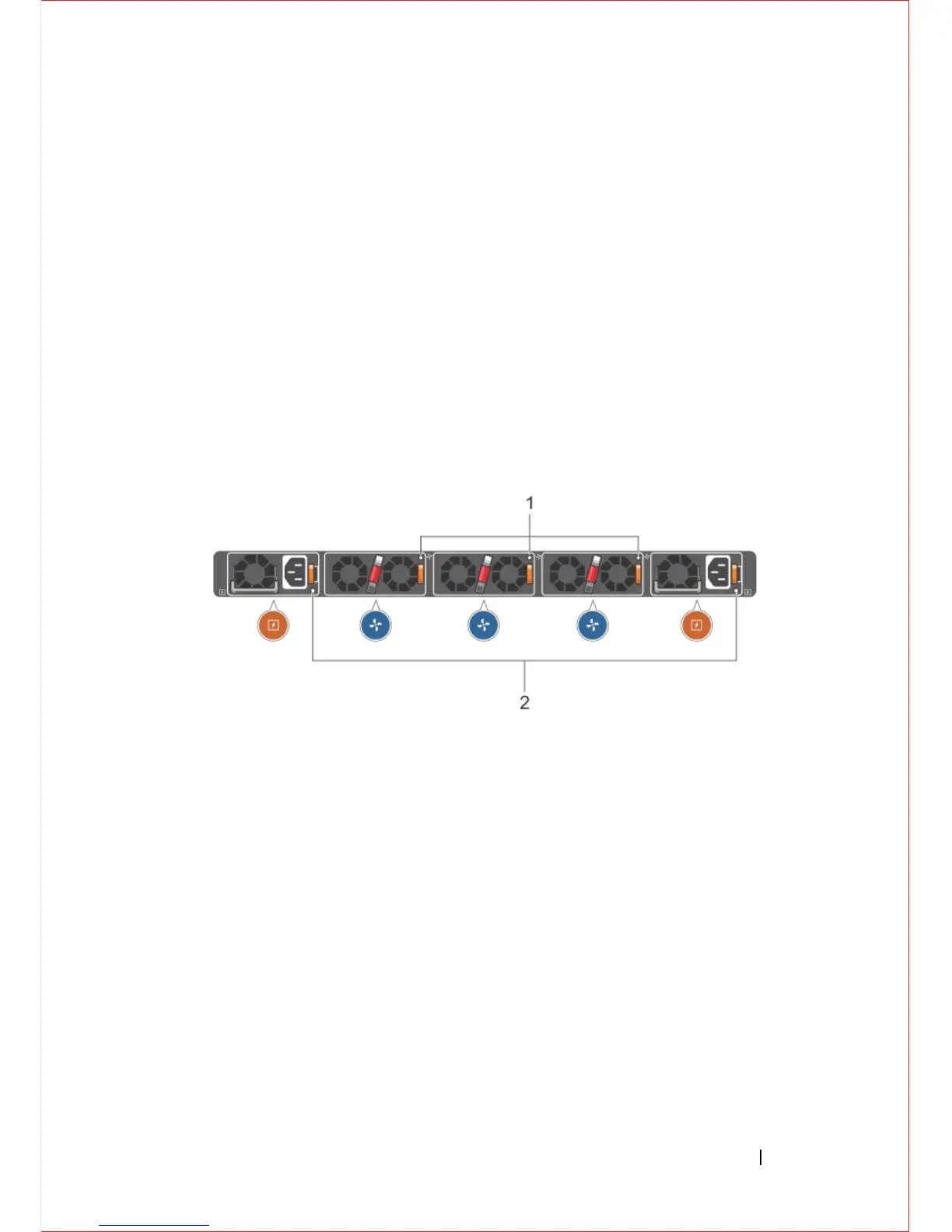

Figure 3-3. S6000 PSU and Fan Tray LEDs
1- Fan Tray 0-2 LEDs
2 - PSU 0-1 LEDs
