Dell OptiPlex 3090 User Manual

Removing and installing components
NOTE: The images in this document may differ from your computer depending on the configuration you ordered.
Recommended tools
The procedures in this document may require the following tools:
● Phillips screwdriver #0
● Phillips screwdriver #1
● Torx #5 (T5) screwdriver
● Plastic scribe
Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws, and
then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is
restored when the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when
replacing a component.
NOTE: Screw color may vary with the configuration ordered.

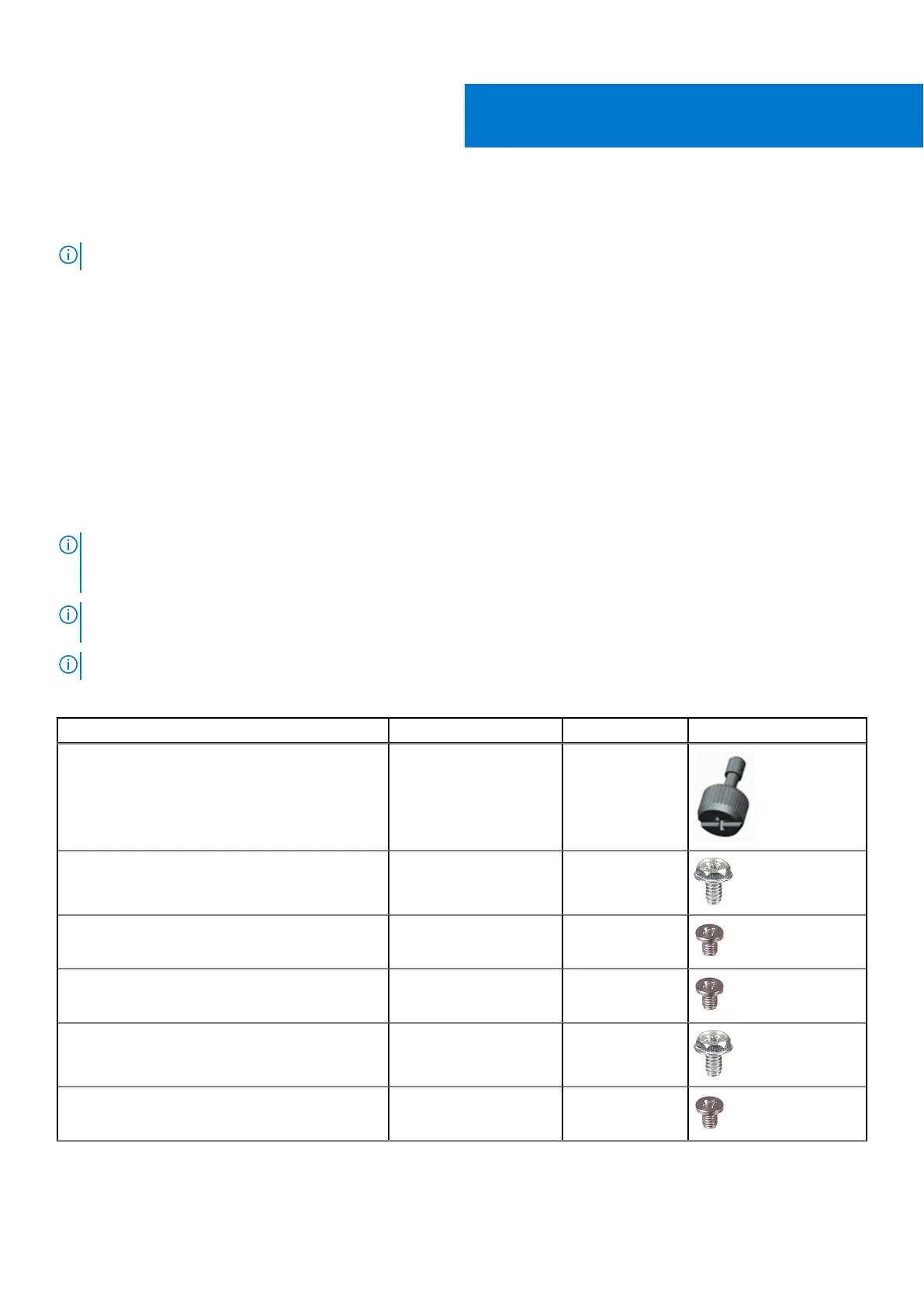

Table 1. Screw list
Component Screw type Quantity Image
Side cover #6-32 2
Front I/O bracket #6-32 2
M.2 2230/2280 Solid-state drive M2x3.5 1
WLAN card M2x3.5 1
Power supply unit #6-32 3
2.5 in. hard-drive bracket M3x3.5 4
2
10 Removing and installing components

Dell OptiPlex 3090 Specifications

General

Processor cache	8 MB
Processor cores	4
Processor model	i5-1145G7
Processor family	Intel® Core™ i5
Configurable TDP-up	28 W
Processor frequency	- GHz
Configurable TDP-down	12 W
Processor manufacturer	Intel
Processor boost frequency	4.4 GHz
Configurable TDP-up frequency	2.6 GHz
Number of processors installed	1
Configurable TDP-down frequency	1.1 GHz
Non-ECC	Yes
Memory slots	2x SO-DIMM
Internal memory	16 GB
Memory channels	Dual-channel
Memory clock speed	3200 MHz
Internal memory type	DDR4-SDRAM
Maximum internal memory	64 GB
Microphone in	No
DisplayPort version	1.4
USB 2.0 ports quantity	0
Power supply	65 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz
Operating shock	110 G
Operating altitude	-15.2 - 3048 m
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating altitude	-15.2 - 10668 m
Non-operating vibration	1.3 G
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	0 - 35 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Antenna type	2x2
LAN controller	Realtek RTL8111HS
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth version	5.0
Cabling technology	10/100/1000Base-T(X)
WLAN controller model	Qualcomm QCA61x4A
Ethernet LAN data rates	10, 100, 1000 Mbit/s
WLAN controller manufacturer	Qualcomm
SSD capacity	256 GB
SSD interface	NVMe, PCI Express
Storage media	SSD
SSD form factor	M.2
Operating system architecture	64-bit
Chassis type	UFF
Product color	Black
Cable lock slot type	Kensington
Discrete graphics card model	Not available
On-board graphics card model	Intel Iris Xe Graphics
Audio chip	Realtek ALC3204-CG
Audio system	High Definition Audio
Product type	Mini PC

Weight and Dimensions

Depth	19.7 mm
Width	96.1 mm
Height	256.2 mm
Weight	650 g
