Dell OptiPlex 3090 User Manual

System board
Removing the system board
Prerequisites
1. Follow the procedure in before working inside your computer.
NOTE: Your computer’s Service Tag is stored in the system board. You must enter the Service Tag in the BIOS setup
program after you replace the system board.
NOTE: Replacing the system board removes any changes that you have made to the BIOS using the BIOS setup
program. You must make the appropriate changes again after you replace the system board.
NOTE: Before disconnecting the cables from the system board, note the location of the connectors so that you can
reconnect the cables correctly after you replace the system board.
2. Remove the side cover.
3. Remove the front bezel.
4. Remove the fan duct.
5. Remove the memory module.
6. Remove the wireless.
7. Remove the M.2 2230 SSD/M.2 2280 SSD.
8. Remove the coin-cell battery.
9. Remove the graphics card/ powered graphical processing unit.
10. Remove the processor fan and heat-sink assembly.
11. Remove the processor.
About this task

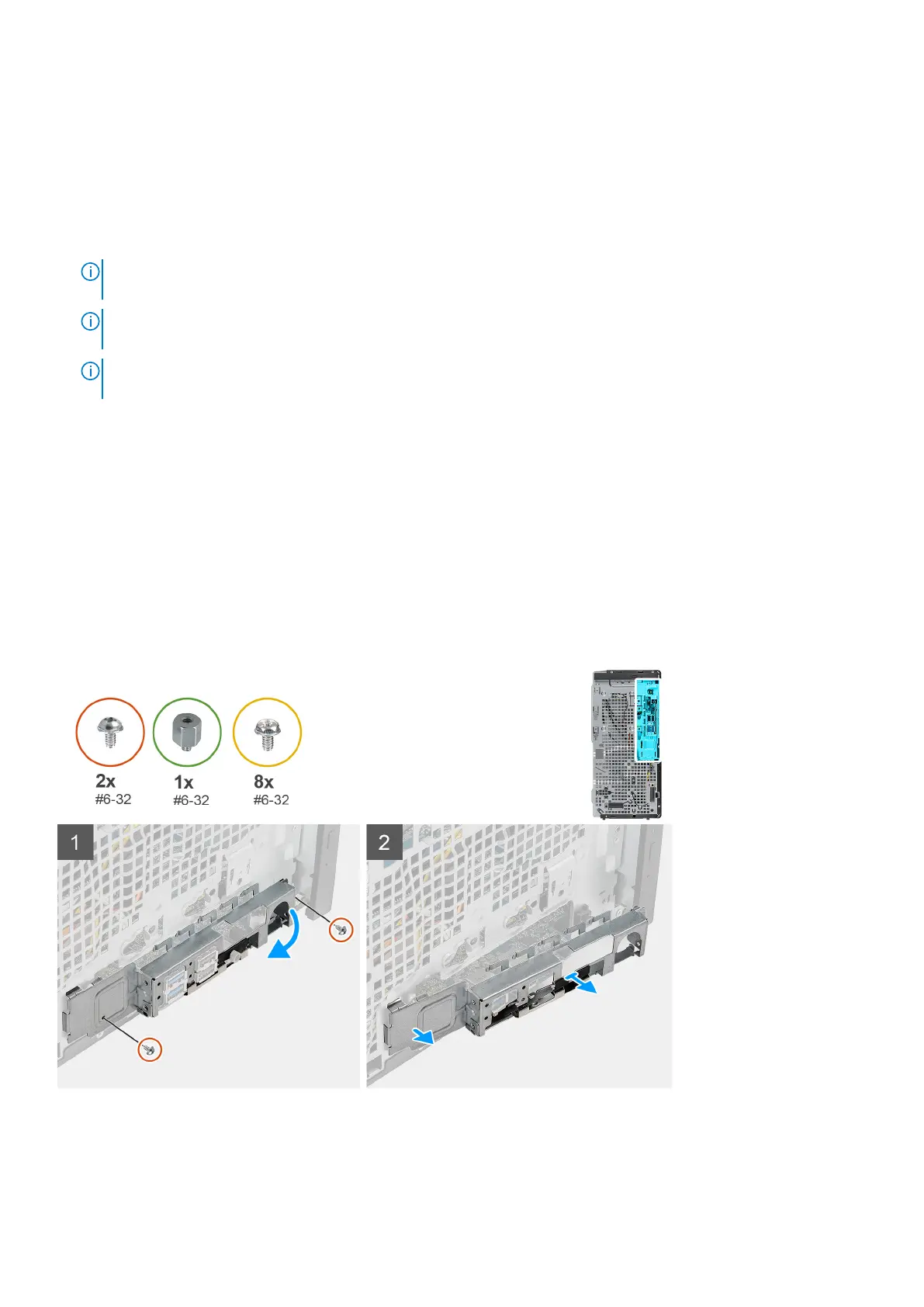

The following images indicate the location of the system board and provides a visual representation of the removal procedure.
Removing and installing components
61

Dell OptiPlex 3090 Specifications

General

Processor cache	8 MB
Processor cores	4
Processor model	i5-1145G7
Processor family	Intel® Core™ i5
Configurable TDP-up	28 W
Processor frequency	- GHz
Configurable TDP-down	12 W
Processor manufacturer	Intel
Processor boost frequency	4.4 GHz
Configurable TDP-up frequency	2.6 GHz
Number of processors installed	1
Configurable TDP-down frequency	1.1 GHz
Non-ECC	Yes
Memory slots	2x SO-DIMM
Internal memory	16 GB
Memory channels	Dual-channel
Memory clock speed	3200 MHz
Internal memory type	DDR4-SDRAM
Maximum internal memory	64 GB
Microphone in	No
DisplayPort version	1.4
USB 2.0 ports quantity	0
Power supply	65 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz
Operating shock	110 G
Operating altitude	-15.2 - 3048 m
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating altitude	-15.2 - 10668 m
Non-operating vibration	1.3 G
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	0 - 35 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Antenna type	2x2
LAN controller	Realtek RTL8111HS
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth version	5.0
Cabling technology	10/100/1000Base-T(X)
WLAN controller model	Qualcomm QCA61x4A
Ethernet LAN data rates	10, 100, 1000 Mbit/s
WLAN controller manufacturer	Qualcomm
SSD capacity	256 GB
SSD interface	NVMe, PCI Express
Storage media	SSD
SSD form factor	M.2
Operating system architecture	64-bit
Chassis type	UFF
Product color	Black
Cable lock slot type	Kensington
Discrete graphics card model	Not available
On-board graphics card model	Intel Iris Xe Graphics
Audio chip	Realtek ALC3204-CG
Audio system	High Definition Audio
Product type	Mini PC

Weight and Dimensions

Depth	19.7 mm
Width	96.1 mm
Height	256.2 mm
Weight	650 g
