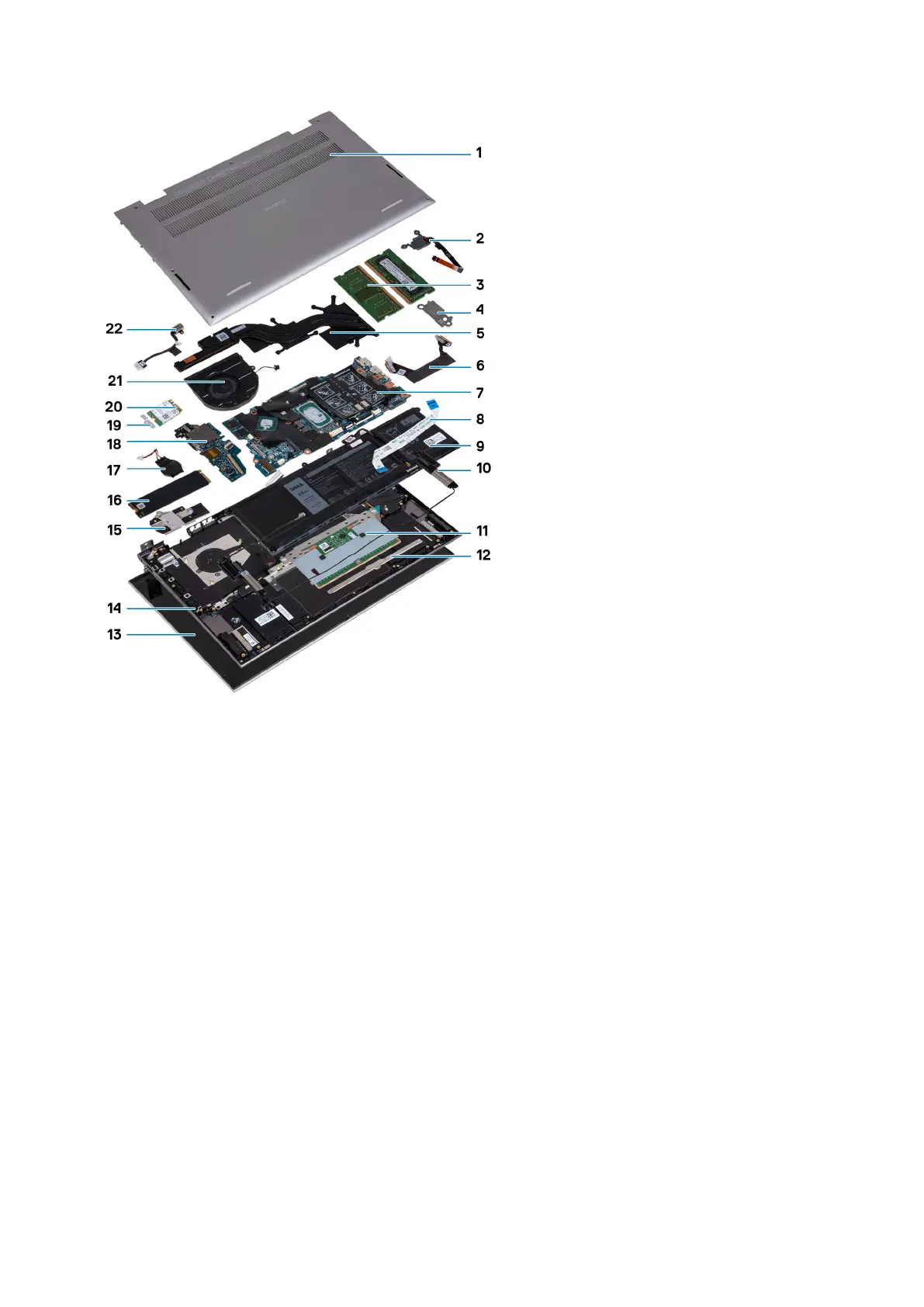

1. Base cover
2. Power button with optional fingerprint reader
3. Memory modules
4. USB Type-C bracket
5. Heat sink
6. I/O-board cable
7. System board
8. Touchpad cable
9. Battery
10. Speakers
11. Touchpad
12. Touchpad-bracket
13. Display assembly
14. Palm-rest and keyboard assembly
15. Solid-state drive bracket
16. M.2 2280 solid-state drive
17. Coin-cell battery
18. I/O board
19. Wireless-card bracket
20. Wireless card
21. Fan
22. Power-adapter port
