About Your Monitor | 9

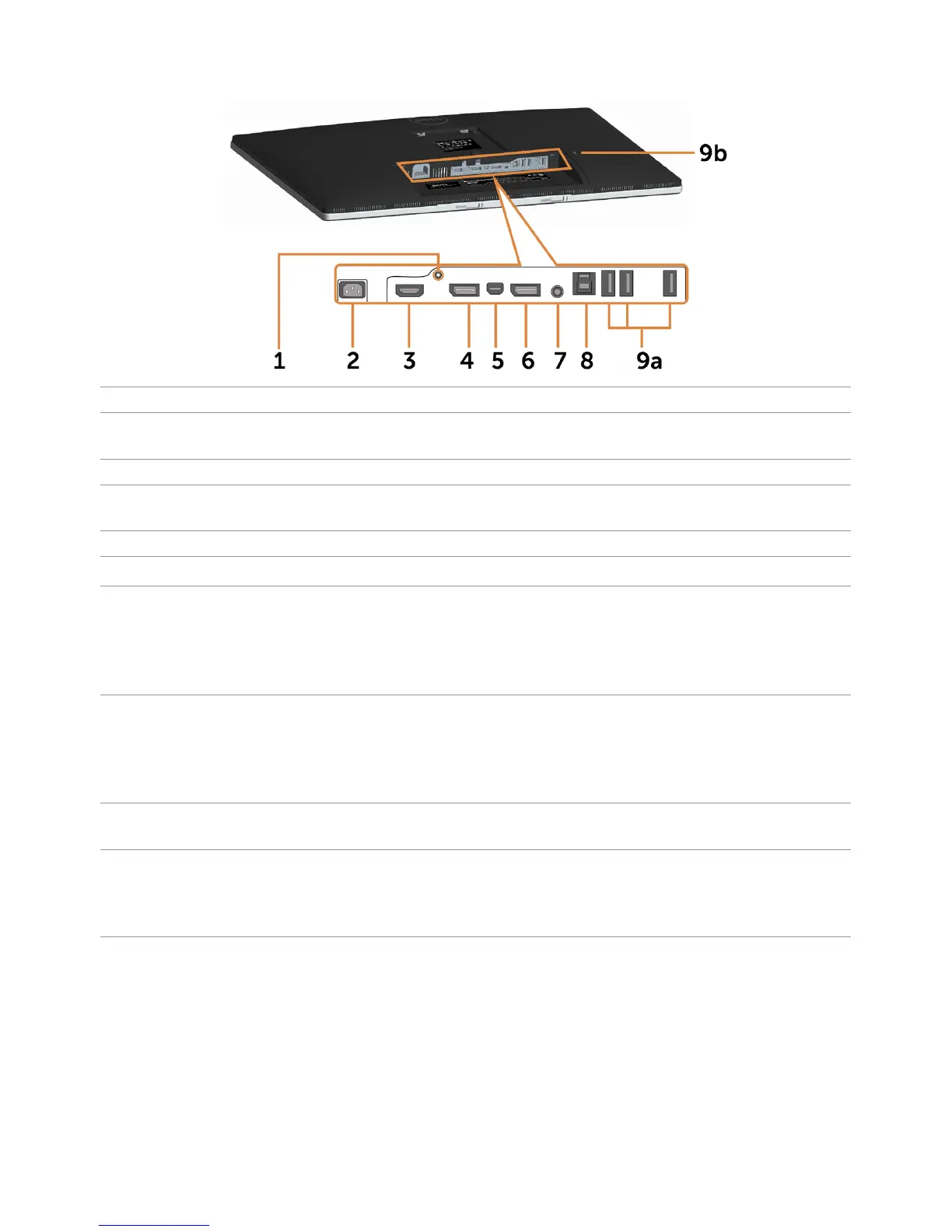

Bottom View
Label Description Use
1 Stand lock Lock the stand to the monitor using a M3 x 6 mm
screw (screw not included).
2 AC power connector To connect the monitor power cable.
3 HDMI (MHL) port Connect your computer with HDMI cable or MHL
devices with MHL cable (optional).
4 DP connector (in) Connect your computer with DP cable.
5 mDP connector (in) Connect your computer with mDP to DP cable.
6 DP connector (out) DP output for MST (multi-stream transport)
capable monitor. DP 1.1 monitor can only be
connected as the last monitor in the MST chain.
To enable MST, refer to instruction on section
“Connecting the Monitor for DP MST Function”.
7 Audio line-out port Connect speakers to playback audio coming
through HDMI or DP audio channels.
Only supports 2-channel audio.
NOTE: The audio line-out port does not support
headphones.
8 USB upstream port Connect the USB cable to your computer and the
monitor to enable the USB ports on the monitor.
9a,
9b
USB downstream ports (4) Connect USB devices.
NOTE: You must connect the USB upstream
cable to the monitor and your computer to be
able to use these ports.
