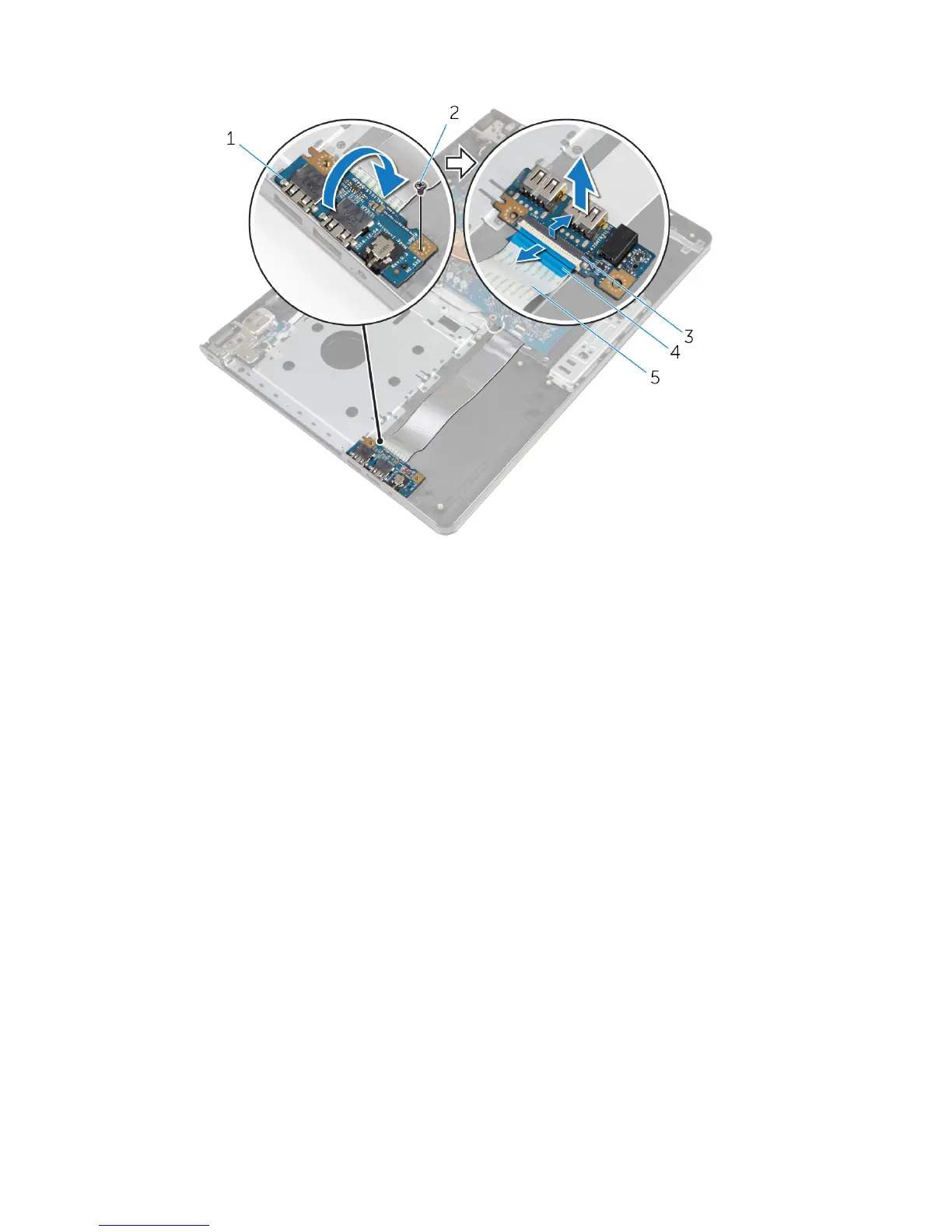

Lift the I/O board off the palm-rest assembly.
1
I/O board
2
screw
3
latch
4
pull-tab
5
I/O-board cable
54
53
55
Table of Contents
Default Chapter
1
Service Manual
1
Table of Contents
3
Before Working Inside Your Computer
10
Before You Begin
10
Safety Instructions
10
Recommended Tools
11
After Working Inside Your Computer
13
Removing the Battery
14
Procedure
14
Replacing the Battery
15
Procedure
15
Inspiron
15
Removing the Optical Drive
16
Prerequisites
16
Procedure
16
Replacing the Optical Drive
19
Procedure
19
Post-Requisites
19
Removing the Base Cover
20
Prerequisites
20
Procedure
20
Replacing the Base Cover
21
Procedure
21
Post-Requisites
21
Removing the Memory Modules
22
Prerequisites
22
Procedure
22
Replacing the Memory Modules
24
Procedure
24
Post-Requisites
25
Removing the Hard Drive
26
Prerequisites
26
Procedure
26
Replacing the Hard Drive
30
Procedure
30
Post-Requisites
30
Removing the Wireless Card
31
Prerequisites
31
Procedure
31
Replacing the Wireless Card
33
Procedure
33
Post-Requisites
33
Removing the Coin-Cell Battery
34
Prerequisites
34
Procedure
34
Replacing the Coin-Cell Battery
36
Procedure
36
Post-Requisites
36
Removing the Keyboard
37
Prerequisites
37
Procedure
37
Replacing the Keyboard
40
Procedure
40
Post-Requisites
40
Removing the Computer Base
41
Prerequisites
41
Procedure
41
Replacing the Computer Base
46
Procedure
46
Post-Requisites
46
Removing the Optical-Drive Interposer
47
Prerequisites
47
Procedure
47
Replacing the Optical-Drive Interposer
49
Procedure
49
Post-Requisites
49
Removing the Speakers
50
Prerequisites
50
Procedure
50
Replacing the Speakers
52
Procedure
52
Post-Requisites
52
Removing the I/O Board
53
Prerequisites
53
Procedure
53
Replacing the I/O Board
55
Procedure
55
Post-Requisites
55
Removing the Heat-Sink Assembly
56
Prerequisites
56
Procedure
56
Replacing the Heat-Sink Assembly
58
Procedure
58
Post-Requisites
58
Removing the Power-Button Module
60
Prerequisites
60
Procedure
60
Replacing the Power-Button Module
63
Procedure
63
Post-Requisites
63
Removing the System Board
64
Prerequisites
64
Procedure
64
Replacing the System Board
69
Procedure
69
Post-Requisites
69
Removing the Display Assembly
71
Prerequisites
71
Procedure
71
Replacing the Display Assembly
74
Procedure
74
Post-Requisites
74
Removing the Display Bezel
75
Prerequisites
75
Procedure
75
Replacing the Display Bezel
77
Procedure
77
Post-Requisites
77
Removing the Display Panel
78
Prerequisites
78
Procedure
78
Replacing the Display Panel
81
Procedure
81
Post-Requisites
81
Removing the Display Hinges
82
Prerequisites
82
Procedure
82
Replacing the Display Hinges
84
Procedure
84
Post-Requisites
84
Removing the Display Cable
85
Prerequisites
85
Procedure
85
Replacing the Display Cable
87
Procedure
87
Post-Requisites
87
Removing the Display Back-Cover and Antenna Assembly
88
Prerequisites
88
Procedure
88
Replacing the Display Back-Cover and Antenna Assembly
90
Procedure
90
Post-Requisites
90
Removing the Camera
91
Prerequisites
91
Procedure
91
Replacing the Camera
93
Procedure
93
Post-Requisites
93
Removing the Power-Adapter Port
94
Prerequisites
94
Procedure
94
Replacing the Power-Adapter Port
96
Procedure
96
Post-Requisites
96
Removing the Palm-Rest Assembly
97
Prerequisites
97
Procedure
97
Replacing the Palm-Rest Assembly
99
Procedure
99
Post-Requisites
99
Flashing the BIOS
100
