About Your System 13

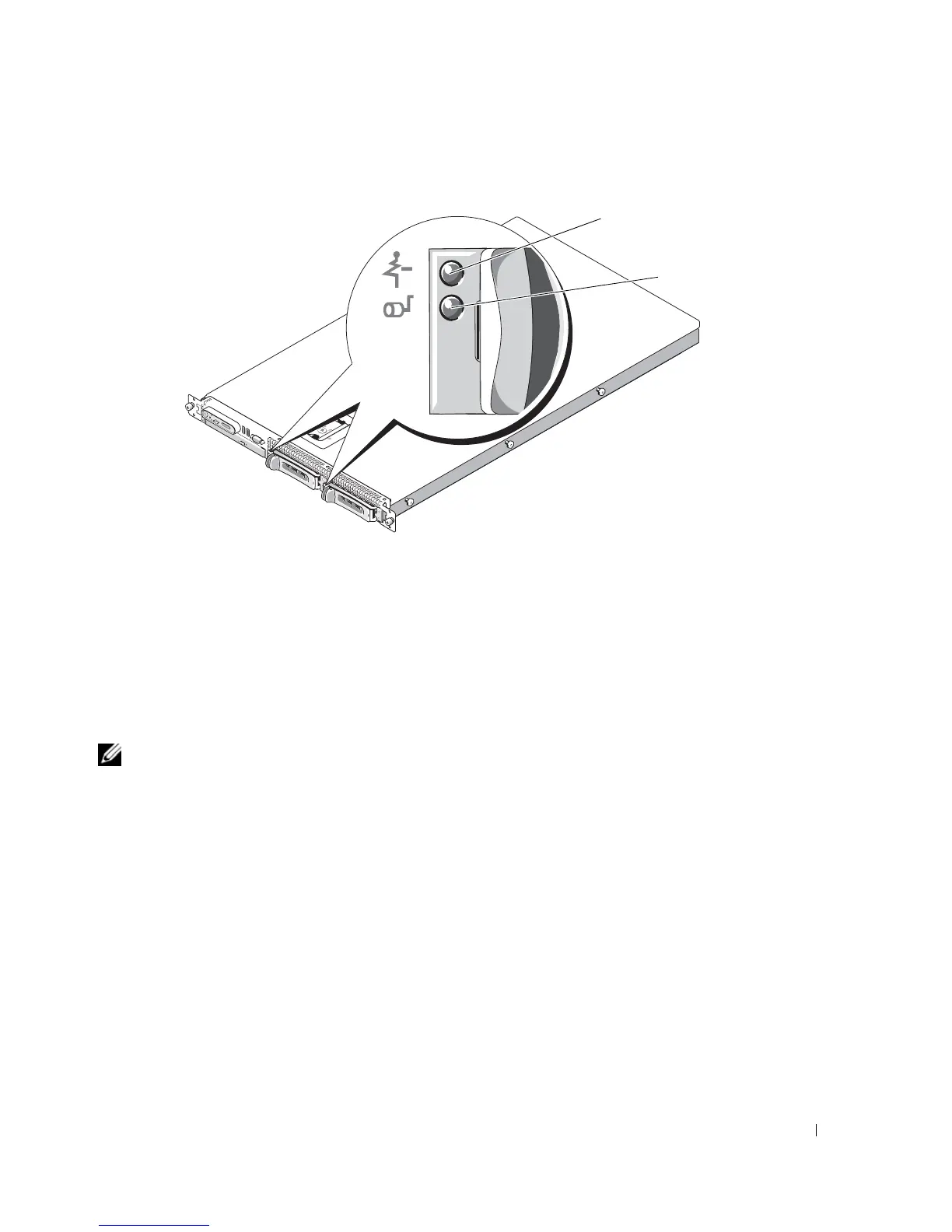

Figure 1-2. Hard-Drive Indicators
Table 1-3 lists the drive indicator patterns. Different patterns are displayed as drive events occur in the
system. For example, if a hard-drive fails, the "drive failed" pattern appears. After the drive is selected for
removal, the "drive being prepared for removal" pattern appears, followed by the "drive ready for insertion
or removal" pattern. After the replacement drive is installed, the "drive being prepared for operation" pattern
appears, followed by the "drive online" pattern.
NOTE: For non-RAID configurations, only the drive-activity indicator is active. The drive-status indicator is off.
1 drive-status indicator (green
and amber)
2 green drive-activity indicator
1
2

Dell PowerEdge 1950 Specifications

General

Processor Sockets	2
Chipset	Intel 5000X
Memory Slots	8 DIMM slots
Network	Dual embedded Broadcom NetXtreme II 5708 Gigabit Ethernet
Form Factor	1U Rack
Processor	Intel Xeon 5100, 5300 series
Memory	Up to 32GB DDR2
Storage	SAS or SATA
Drive Bays	Two 3.5" SAS or SATA drives or Four 2.5" SAS or SATA drives
RAID Controller	PERC 5/i, PERC 6/i
Power Supply	670W redundant power supply (optional)
Operating System Support	Microsoft Windows Server, Red Hat Linux, SUSE Linux
