Installing System Components 47
4 Lift up on the latch on top of the system to guide it back and into an offset position. See Figure 3-3.
5 Grasp the cover on both sides and carefully lift the cover away from the system.

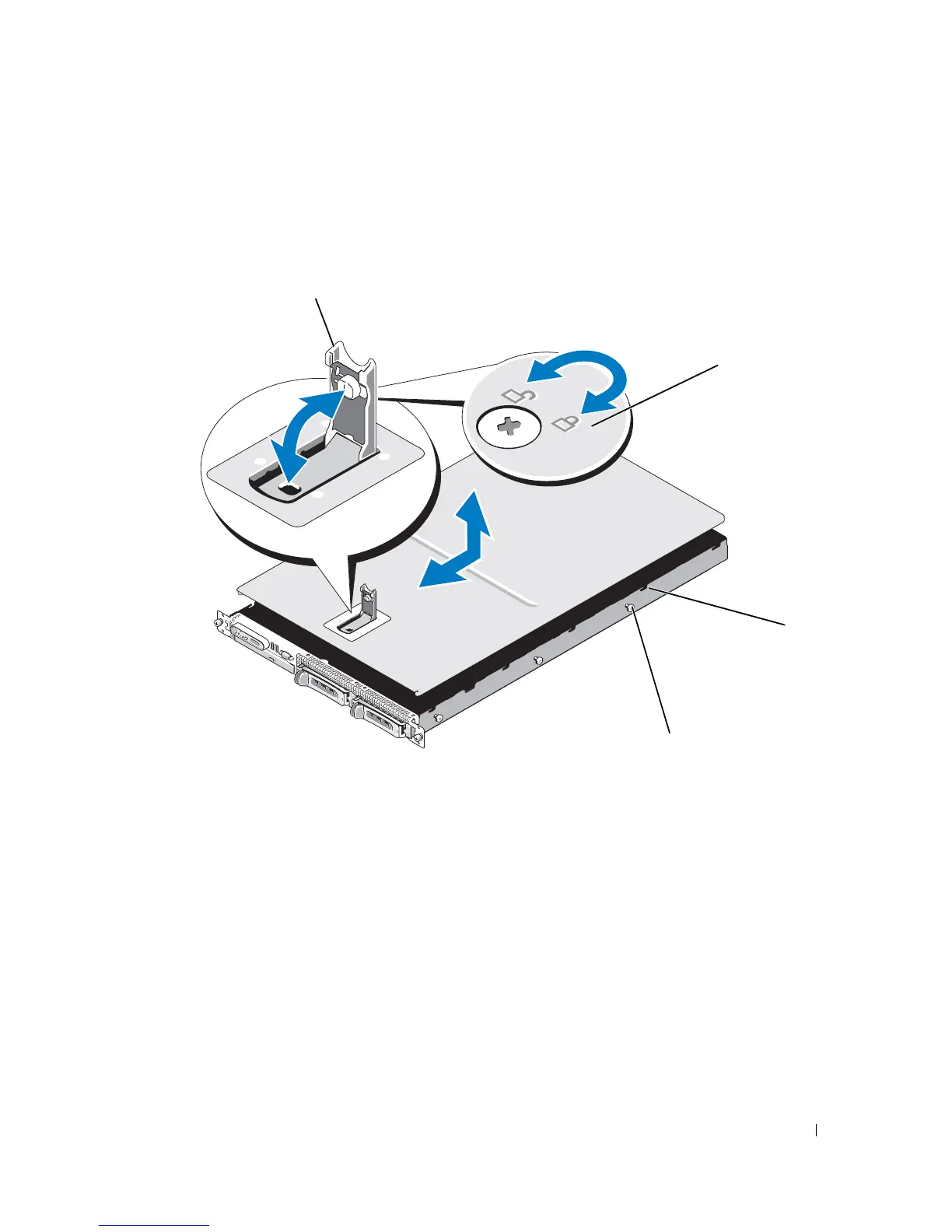

Figure 3-3. Removing the Cover
Closing the System
1 Lift up the latch on the cover.
2 Place the cover on top of the system and offset the cover slightly back so that it clears the chassis J hooks
and lays flat on the system chassis. See Figure 3-3.
3 Lower the cover into the closed position aligning it with the J hooks and push down on the latch to guide
the cover into place.
4 Rotate the latch release lock in a clockwise direction to secure the cover.
1 latch 2 latch release lock 3 alignment J hooks
4 chassis tabs
3
2
4
1

Dell PowerEdge 1950 Specifications

General

Processor Sockets	2
Chipset	Intel 5000X
Memory Slots	8 DIMM slots
Network	Dual embedded Broadcom NetXtreme II 5708 Gigabit Ethernet
Form Factor	1U Rack
Processor	Intel Xeon 5100, 5300 series
Memory	Up to 32GB DDR2
Storage	SAS or SATA
Drive Bays	Two 3.5" SAS or SATA drives or Four 2.5" SAS or SATA drives
RAID Controller	PERC 5/i, PERC 6/i
Power Supply	670W redundant power supply (optional)
Operating System Support	Microsoft Windows Server, Red Hat Linux, SUSE Linux
