Dell PowerEdge T710 User Manual

120 Installing System Components

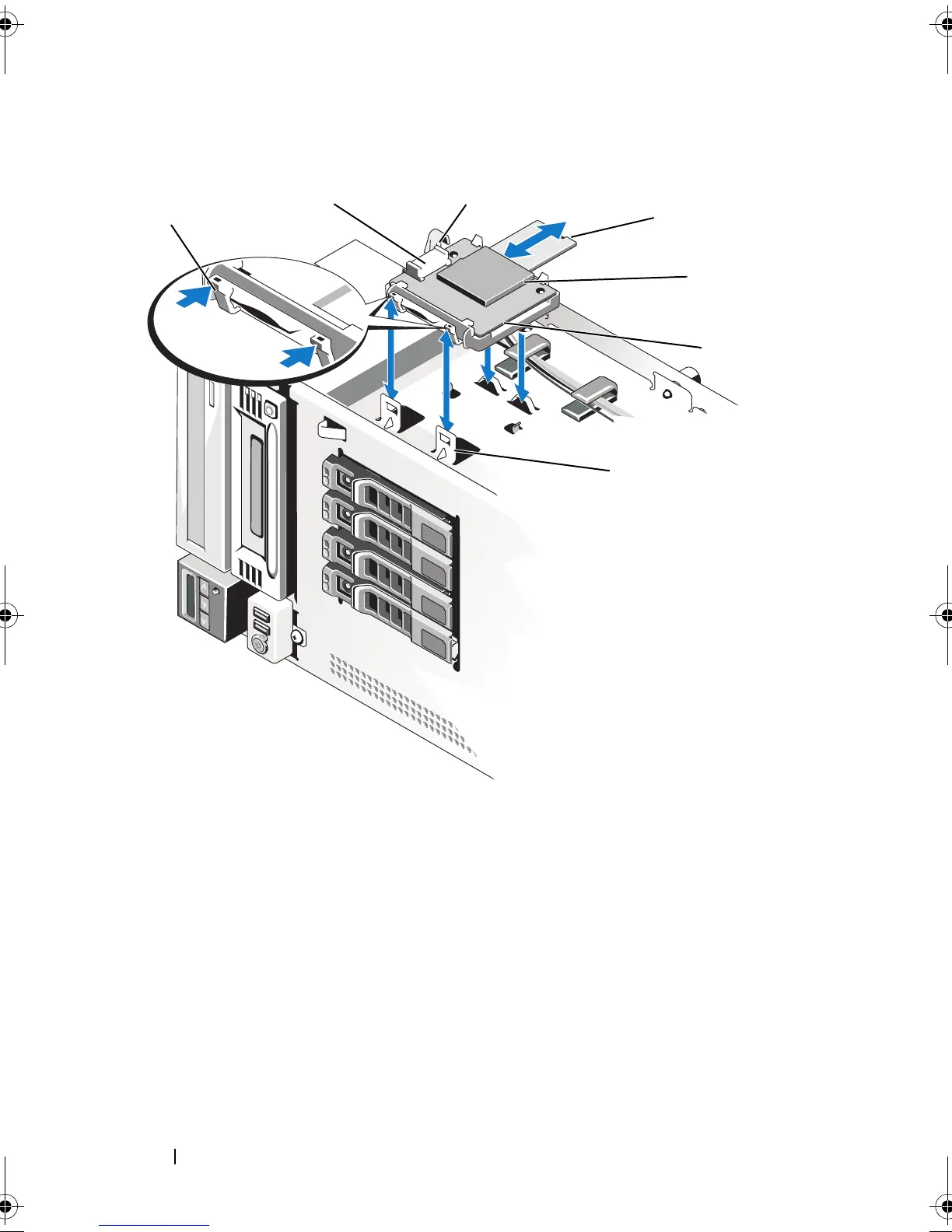

Figure 3-18. Installing the Internal SD Module
5 Connect the internal SD module cable between the connector on the
module and the UIPS connector on the system board. See Figure 6-1 for
the location of the connector on the system board.
6 Close the system. See "Closing the System" on page 86.
1 release tab 2 internal SD module cable connector
3 latch 4 SD flash card
5 SD card slot (SD connector) 6 internal SD module
7 hooks (2)
6
7
4
1
2
3
5
book.book Page 120 Monday, June 15, 2009 11:33 AM

Dell PowerEdge T710 Specifications

General

Tcase	76 °C
Bus type	QPI
Stepping	D0
FSB Parity	No
Processor code	SLBF8
Processor cache	4 MB
Processor cores	4
Processor model	E5506
System bus rate	4.8 GT/s
Processor series	Intel Xeon 5500 Series
Processor socket	Socket B (LGA 1366)
Processor codename	Nehalem EP
Motherboard chipset	Intel® 5520
Number of QPI links	2
Processor frequency	2.13 GHz
Processor cache type	Smart Cache
Processor lithography	45 nm
Processor system type	DP
Processor manufacturer	Intel
Processor package size	42.5 x 45 mm
Processor front side bus	- MHz
Processor operating modes	64-bit
ECC supported by processor	Yes
Thermal Design Power (TDP)	80 W
Compatible processor series	Intel® Xeon®
Number of processors installed	1
CPU multiplier (bus/core ratio)	16
Memory types supported by processor	DDR3-SDRAM
Memory channels supported by processor	Triple
Memory clock speeds supported by processor	800 MHz
Memory bandwidth supported by processor (max)	19.2 GB/s
Maximum internal memory supported by processor	144 GB
HDD size	3.5 \
HDD speed	15000 RPM
HDD interface	Serial Attached SCSI (SAS)
Optical drive type	DVD-ROM
Total storage capacity	300 GB
Maximum storage capacity	- TB
Number of HDDs supported	6
Graphics card	G200
Graphics card family	Matrox
Memory slots	18x DIMM
Internal memory	4 GB
Memory clock speed	1333 MHz
Maximum internal memory	192 GB
Memory layout (slots x size)	2 x 2 GB
Networking features	Gigabit Ethernet
PS/2 ports quantity	0
USB 2.0 ports quantity	8
PCI Express x8 slots	5
Power supply	1100 W
Number of power supply units	-
Compatible operating systems	Windows Small Business Server 2011 Windows Small Business Server 2008 Windows Server 2008 SP2, x86/x64 (x64 includes Hyper-V) Windows Server 2008 R2 SP1, x64 (includes Hyper-V v2) Windows HPC Server 2008 Novell SUSE Linux Enterprise Server Red Hat Enterprise Linux
Sustainability certificates	ENERGY STAR
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Chassis type	Tower (5U)
Processor ARK ID	37096

Weight and Dimensions

Depth	731.8 mm
Width	217.9 mm
Height	466.3 mm
Weight	35300 g
