Connecting Your Projector 9
2

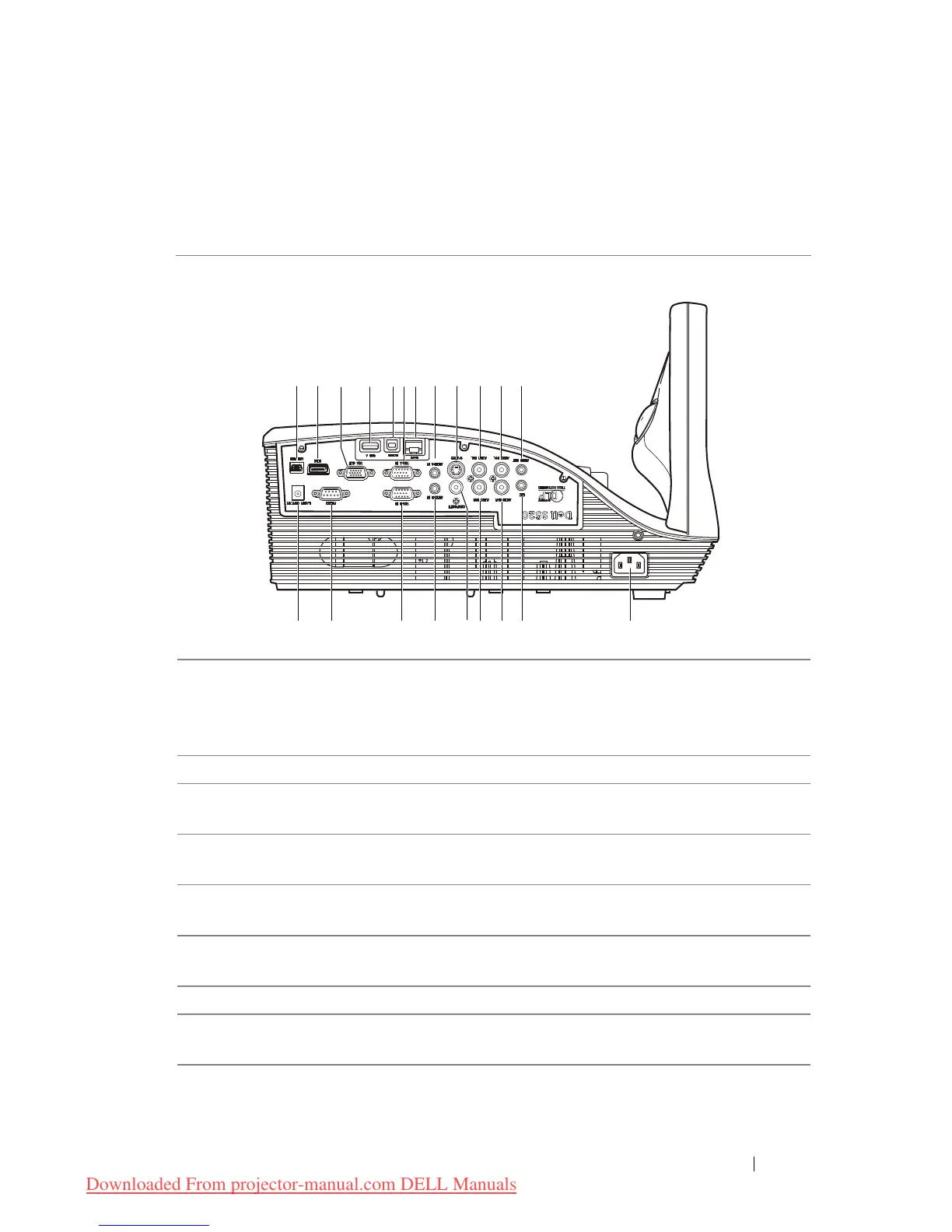

Connecting Your Projector
1 Mini USB (Mini Type B)
connector for remote mouse,
firmware upgrade, and laser
curtain touch HID
12 Audio output connector
2 HDMI connector 13 Power cord connector
3 VGA output (monitor loop
through) connector
14 Microphone connector
4 USB Type A connector for USB
Viewer
15 Audio-B right-channel input
connector
5 USB Type B connector
(DoUSB) for USB Display
16 Audio-A right-channel input
connector
6 VGA-A input (D-sub)
connector
17 Composite Video connector
7 RJ-45 connector 18 Audio-B input connector
8 Audio-A input connector 19 VGA-B input (D-sub)
connector
9 S-Video Connector 20 RS232 connector
1
13
1415161718192021
2 8 9 10 11 12
43 5 6 7
