About Your Monitor | 17

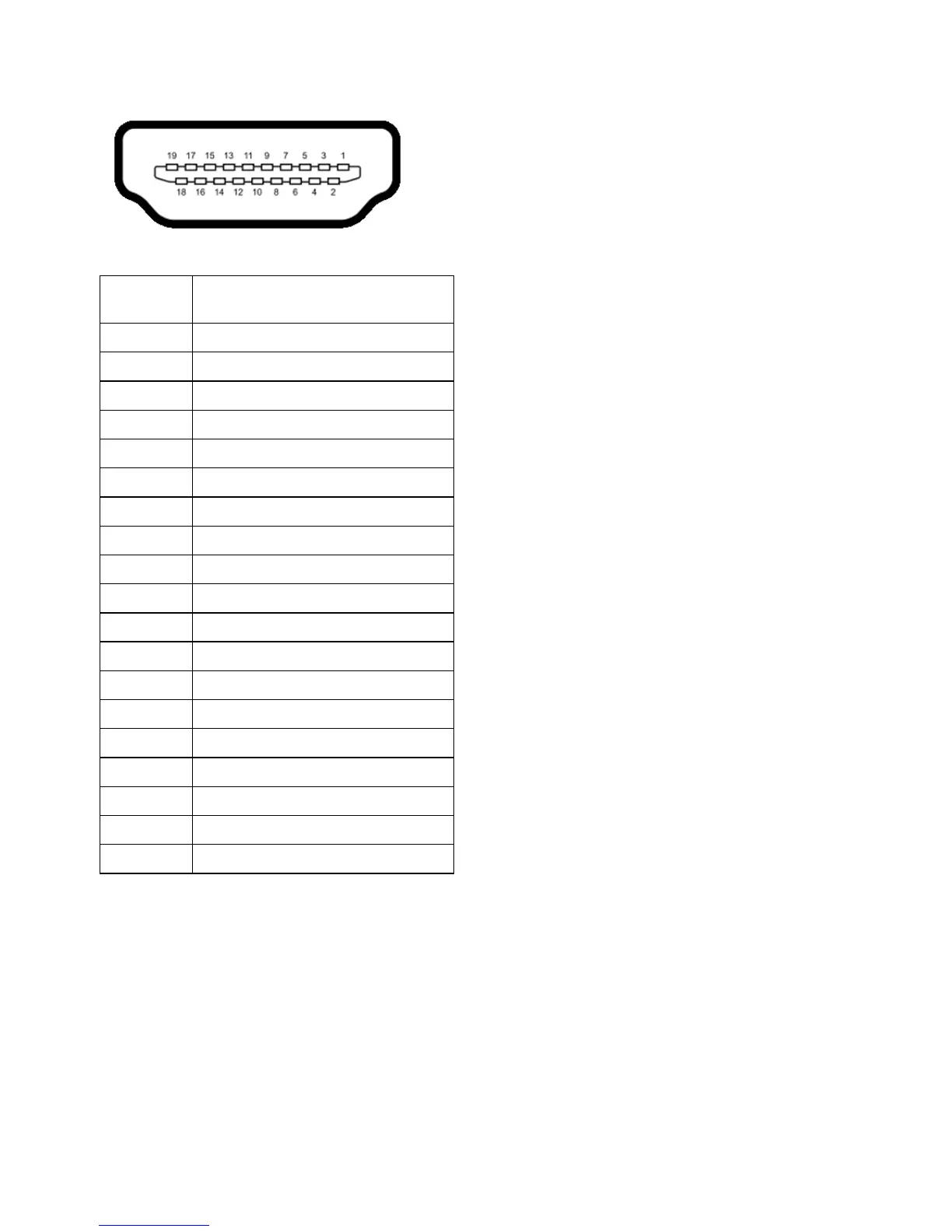

MHL Connector

Plug and Play Capability

You can install the monitor in any Plug and Play-compatible system. The monitor

automatically provides the computer system with its Extended Display Identification Data

(EDID) using Display Data Channel (DDC) protocols so the system can configure itself

and optimize the monitor settings. Most monitor installations are automatic; you can

select different settings if desired. For more information about changing the monitor

settings, see

Operating the Monitor

Number

19-pin Side of the Connected

Signal Cable

1 TMDS DATA 2+

2 TMDS DATA 2 SHIELD

3 TMDS DATA 2-

4 TMDS DATA 1+

5 GND

6 TMDS DATA 1-

7 MHL+

8 TMDS DATA 0 SHIELD

9 MHL-

10 TMDS CLOCK+

11 GND

12 TMDS CLOCK-

13 CEC

14 Reserved (N.C. on device)

15 DDC CLOCK (SCL)

16 DDC DATA (SDA)

17 GND

18 VBUS (+5V, 900mA maximum)

19 CBUS
