System-board shield
Removing the system-board shield
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the stand.
3. Remove the back cover.
About this task

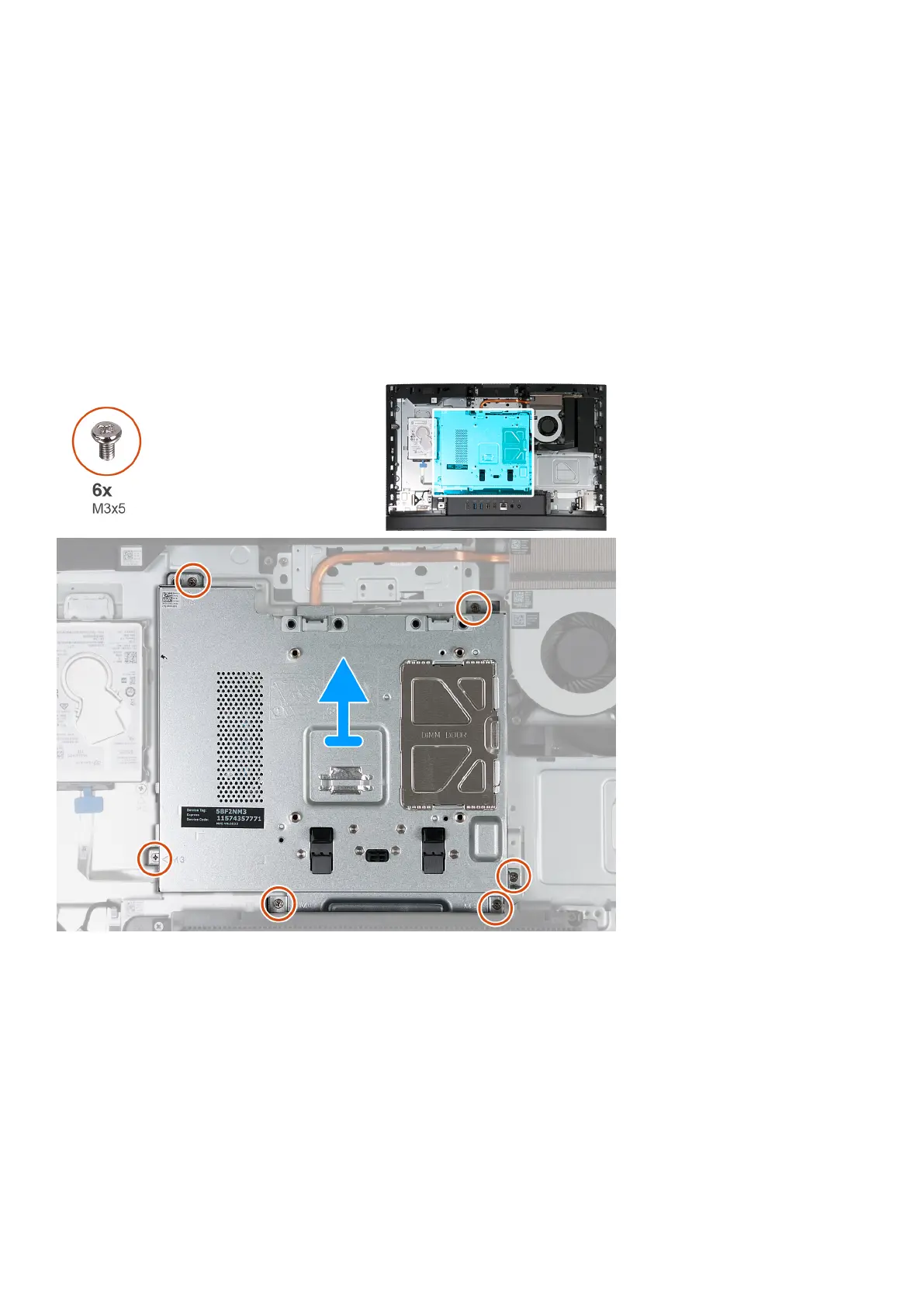

The following image(s) indicate the location of the system-board shield and provides a visual representation of the removal
procedure.
Steps
1. Remove the six screws (M3x5) that secure the system-board shield to the display-assembly base.
2. Lift the system-board shield off the display-assembly base.
Installing the system-board shield
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
112
Removal and installation procedures for Energy Efficient processors
