11. Install the stand.
12. Follow the procedure in After working inside your computer.
Power-button and I/O board
Removing the power-button and I/O board
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the stand.
3. Remove the back cover.
4. Remove the system-board shield.
5. Remove the I/O cover.
6. Remove the bottom cover.
7. Remove the I/O bracket.
About this task

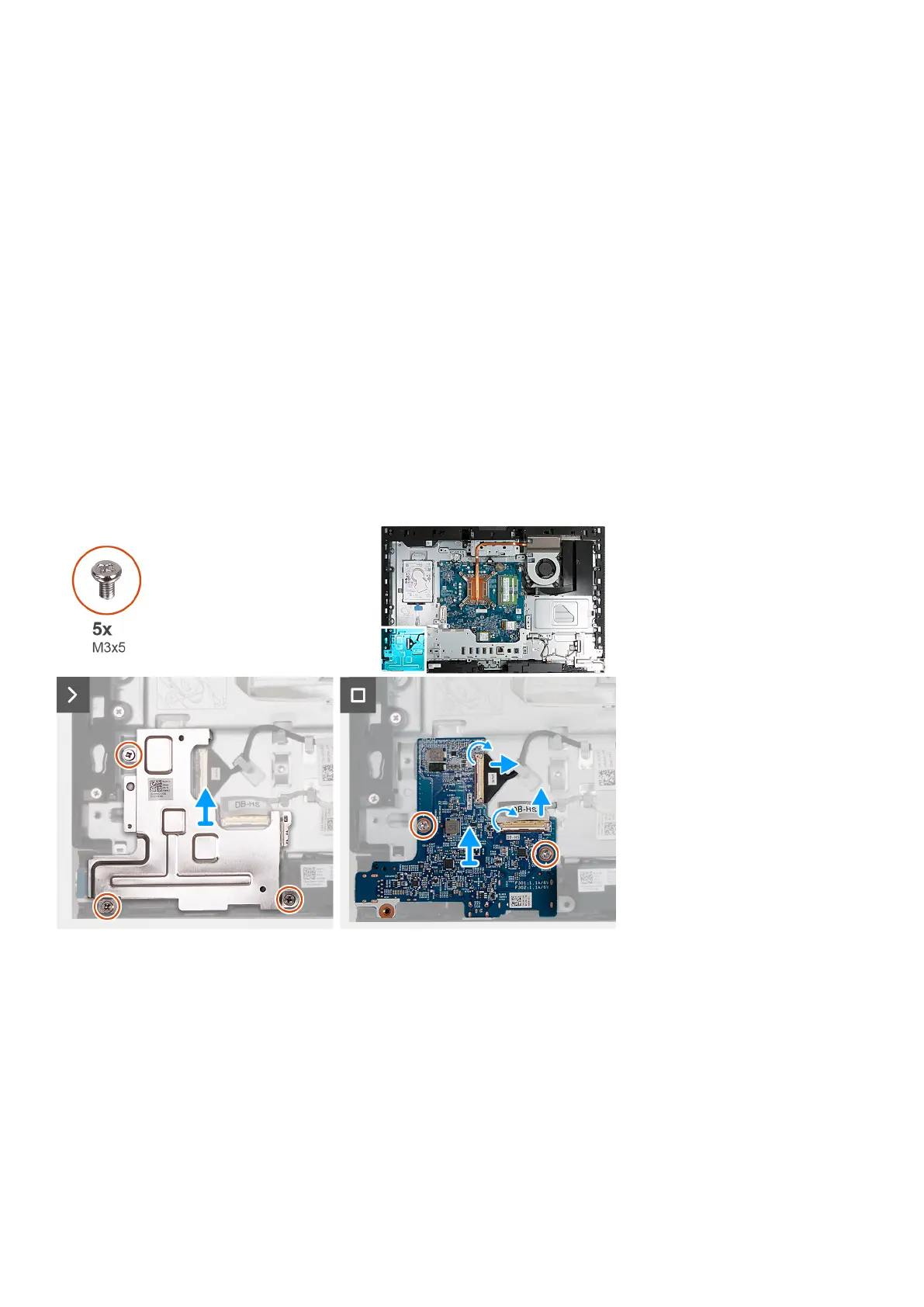

The following image(s) indicate the location of the power-button and I/O board and provides a visual representation of the
removal procedure.
Steps
1. Remove the three screws (M3x5) that secure the power-button and I/O board shield to the display-assembly base.
2. Lift the power-button and I/O board shield off the display-assembly base.
3. Lift the latch and disconnect the power cable (DB-PWR) from the power-button and I/O board.
4. Lift the latch and disconnect the high-speed cable (DB-HS) from the power-button and I/O board.
5. Remove the two screws (M3x5) that secure the power-button and I/O board to the display-assembly base.
6. Lift the power-button and I/O board off the display-assembly base.
Removal and installation procedures for Energy Efficient processors
147
