Steps

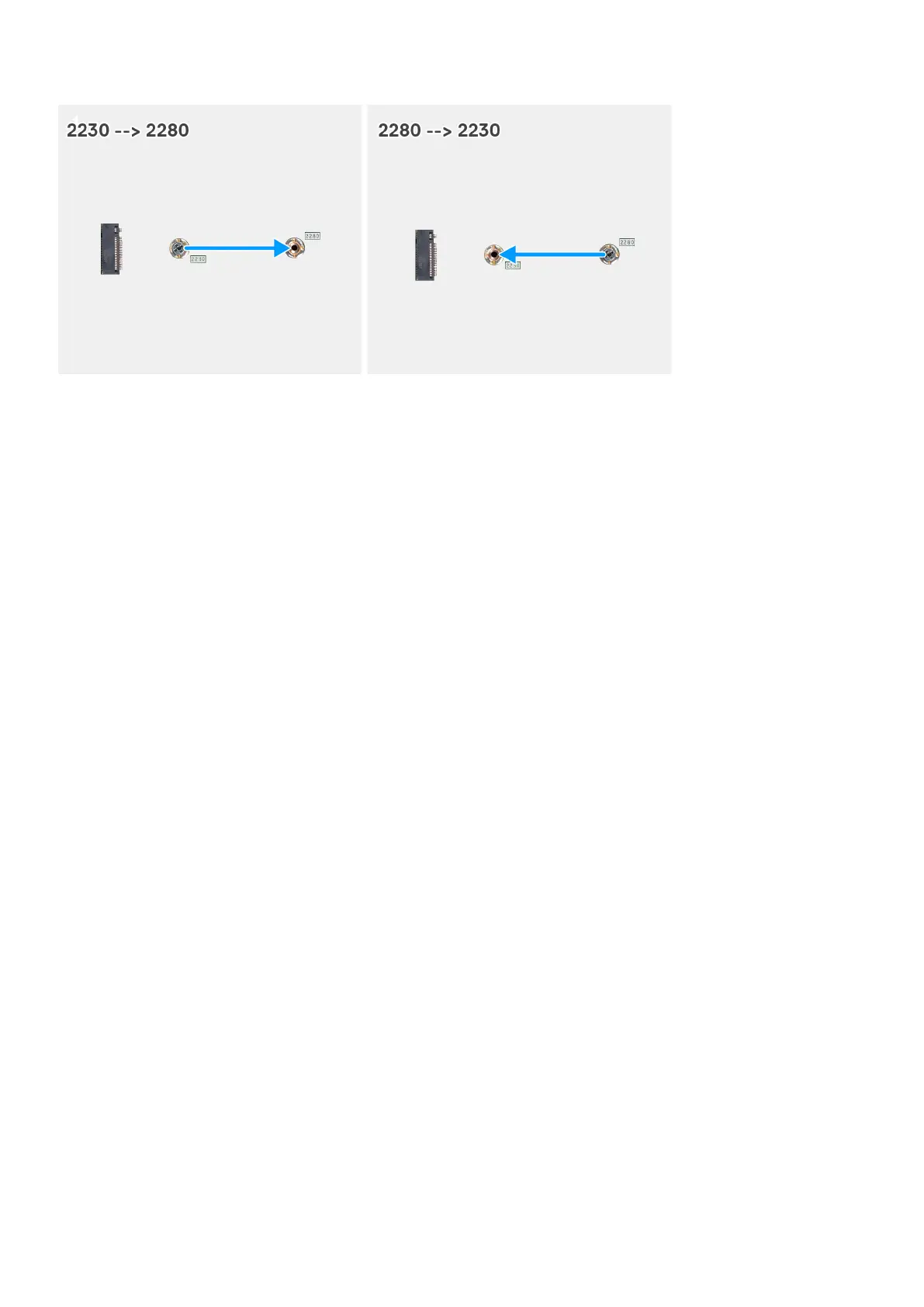

1. Remove the screw mount on the system board.
2. Install the screw mount on the system board.
Next steps
1. Install the M.2 2230 solid-state drive or the M.2 2230 solid-state drive, whichever applicable.
2. Install the system-board shield.
3. Install the back cover.
4. Install the stand.
5. Follow the procedure in After working inside your computer.
Hard drive
Removing the hard drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the stand.
3. Remove the back cover.
About this task
The following image(s) indicate the location of the hard drive and provides a visual representation of the removal procedure.
120
Removal and installation procedures for Energy Efficient processors
