Dell XPS 13 9315 User Manual

Steps

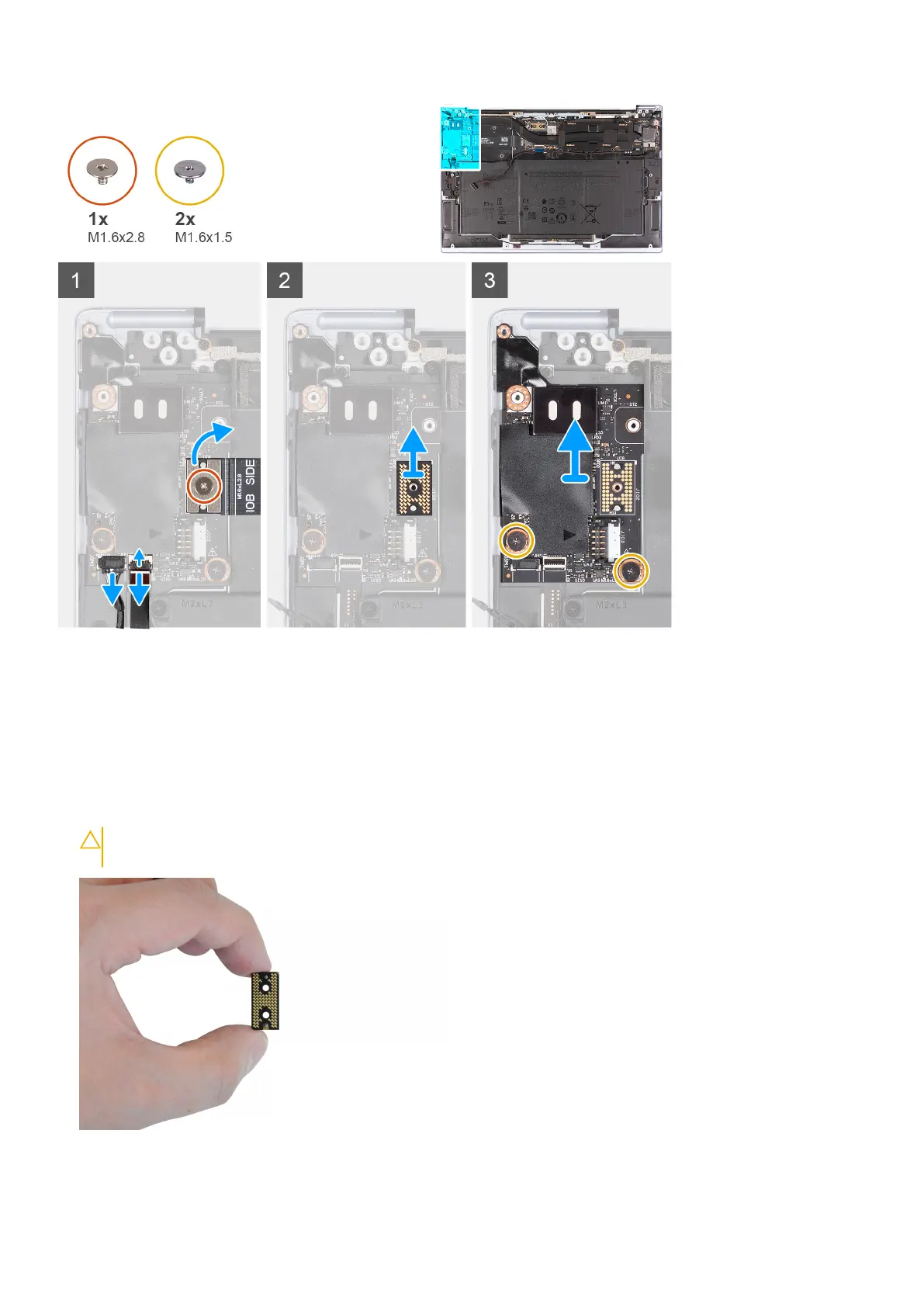

1. Remove the screw (M1.6x2.8) that secures the I/O daughter-board cable to the I/O daughter-board interposer board.
2. Remove the I/O daughter-board cable from the I/O daughter-board interposer board.
3. Use the pull tab on the right speaker cable to disconnect the right speaker cable from the I/O daughter-board.
4. Lift the latch of the fingerprint-reader cable connector on the I/O daughter-board.
5. Use the pull tab on the fingerprint-reader cable connector to disconnect the fingerprint-reader cable from the I/O daughter-
board.
6. Remove the I/O daughter-board interposer board from the I/O daughter-board.
CAUTION:
The pins on the interposer board are fragile. Hold and lift the interposer board from the edges or
the sides.
7. Remove the two screws (M1.6x1.5) that secure the I/O daughter-board to the palm-rest and keyboard assembly.
8. Lift the I/O daughter-board at an angle, and remove the I/O daughter-board from the palm-rest and keyboard assembly.
Removing and installing components
29

Dell XPS 13 9315 Specifications

General

HD type	3K
Panel type	WVA
Pixel density	267 ppi
Display diagonal	13 \
Display brightness	500 cd/m²
Display resolution	2880 x 1920 pixels
Native aspect ratio	3:2
Anti-reflective coating	Yes
Internal memory	16 GB
Memory clock speed	2133 MHz
Internal memory type	LPDDR4x-SDRAM
Ethernet LAN	No
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Wi-Fi data rate (max)	2400 Mbit/s
WLAN controller manufacturer	Intel
AC adapter power	45 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	2.25 A
AC adapter output voltage	20 V
Battery voltage	11.4 V
Battery capacity	- mAh
Battery recharge time	3 h
Number of battery cells	3
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	0 - 35 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Rear camera type	Single camera
Video capturing speed	30 fps
Rear camera resolution	3840 x 2160 pixels
Rear camera resolution (numeric)	10 MP
Front camera resolution (numeric)	5 MP
Position location	-
Audio system	Waves MaxxAudio
Speaker power	2 W
Device type	Tablet PC
Form factor	Slate
Product color	Blue
Cables included	AC
Pixel pitch	0.095 x 0.095 mm
Display response rise/fall	35 ms
Processor cache	12 MB
Processor cores	10
Processor family	Intel® Core™ i7
Processor frequency	- GHz
Processor boost frequency	4.7 GHz
SSD interface	M.2, PCI Express
Storage media	SSD
Internal storage capacity	512 GB
Platform	Windows
Trial software	McAFee Livesafe 12 months, No Microsoft Office Included
Operating system language	ENG, ESP, FRE
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Graphics card	Iris Xe Graphics

Weight and Dimensions

Depth	201.2 mm
Width	292.5 mm
Height	7.4 mm
Weight	740 g
