DeLonghi DE 91 GW - Electrical Wiring Diagram

40

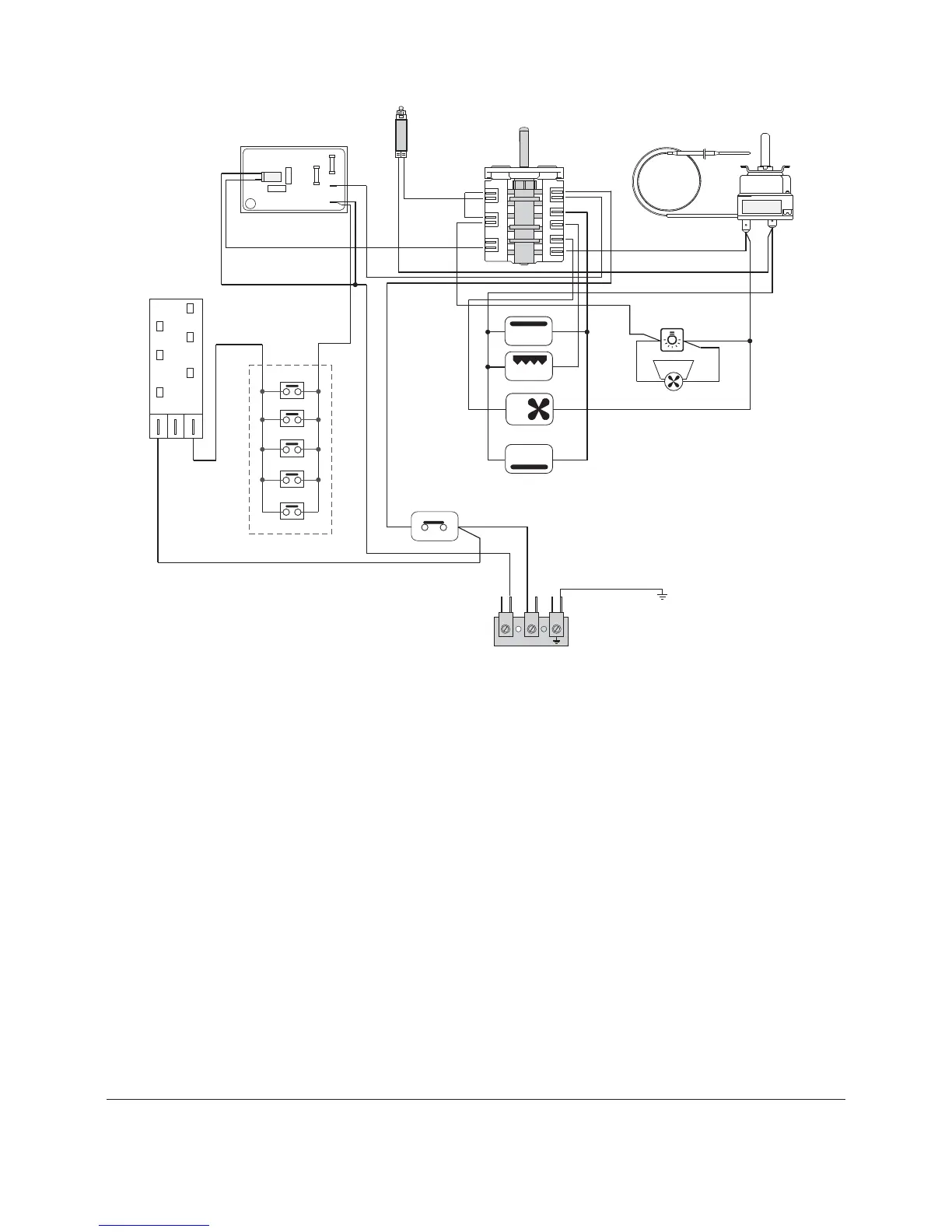

WIRING DIAGRAM
ELECTRIC DIAGRAM KEY
F1 Oven switch
TM Oven thermostat
TL Thermal overload
PR Oven programmer
LF Oven lamp
C Top element
G Grill element
S Bottom element
V Fan
CF Cooling fan
S1 Thermostat pilot lamp
PA Ignition switches group
A Ignition coil
M Terminal block
T Earth connection
11
44
33
22
55
P2
P1
P3
LF
C
G
S
CF
TL
V
M
L
N
L 900mm
T
TM
S1
N/7
1
1a
L/8
PR
PA
*
A
F1
