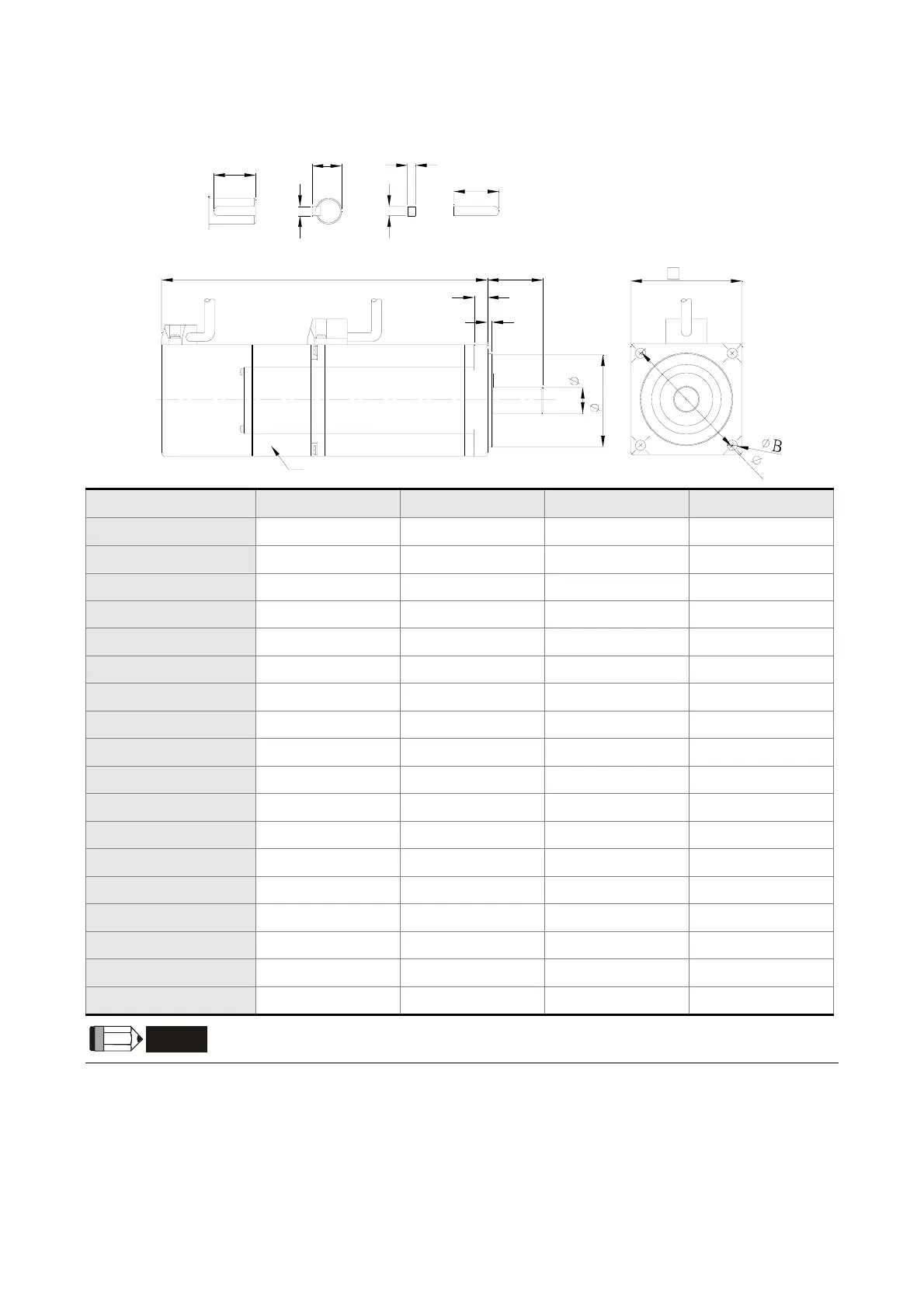

11.9 Dimensions of Low Inertia Servo Motor (ASMTîš…îš…L Series)
E
D
G
BRAKE
F
J
N
L
M
I
H
P
C
B
A
K
Model ASMT01L250îš…îš… ASMT02L250îš…îš… ASMT04L250îš…îš… ASMT07L250îš…îš…
A 40 60 60 80
B 4.5 5.5 5.5 6.6
C 46 70 70 90
D 8h6 +0.0 –0.009 14h6 +0.0 –0.011 14h6 +0.0 –0.011 19h6 +0.0 –0.013
E 30h7 +0.0 –0.021 50h7 +0.0 –0.025 50h7 +0.0 –0.025 70h7 +0.0 –0.030
F (without brake) 100.1 102.4 124.4 135
F (with brake) 135.7 137 159 171.6
G 25 30 30 35
H 5 6 6 8
I 2.5 3 3 3
J 16 20 20 25
K 9.2 +0.0 –0.2 16 +0.0 –0.2 16 +0.0 –0.2 21.5 +0.0 –0.2
L 3h9 –0.006 –0.031 5h9 –0.012 –0.042 5h9 –0.012 –0.042 6h9 –0.012 –0.042
M 3 +0.0 –0.025 5 +0.0 -0.030 5 +0.0 –0.030 6 +0.0 –0.030
N 3 +0.0 –0.025 5 +0.0 -0.030 5 +0.0 –0.030 6 +0.0 –0.030
P 16 +0.0 –0.18 20 +0.0 -0.21 20 +0.0 –0.21 25 +0.0 –0.21
Weight (without brake) 0.5 (1.1) 0.9 (1.98) 1.3 (2.87) 2.5 (5.5)
Weight (with brake) 0.7 (1.54) 1.4 (3.09) 1.8 (3.97) 3.4 (7.5)
NOTE
1) Dimensions are in millimeters. Weights are in kilograms (kg) and (pounds (lbs)).
2) Dimensions and weights of the servo motor may be revised without prior notice.
3) The boxes (îš…) in the model names are for optional configurations. (Please refer to section 1.2 for model
explanation.)
4) Actual measured values are in metric units. Dimensions and weights in (imperial units) are for reference
only.
