Chapter 4 Display and Operation|ASDA-A&A+ Series
Revision April 2009 4-3
4.2 Display Flowchart

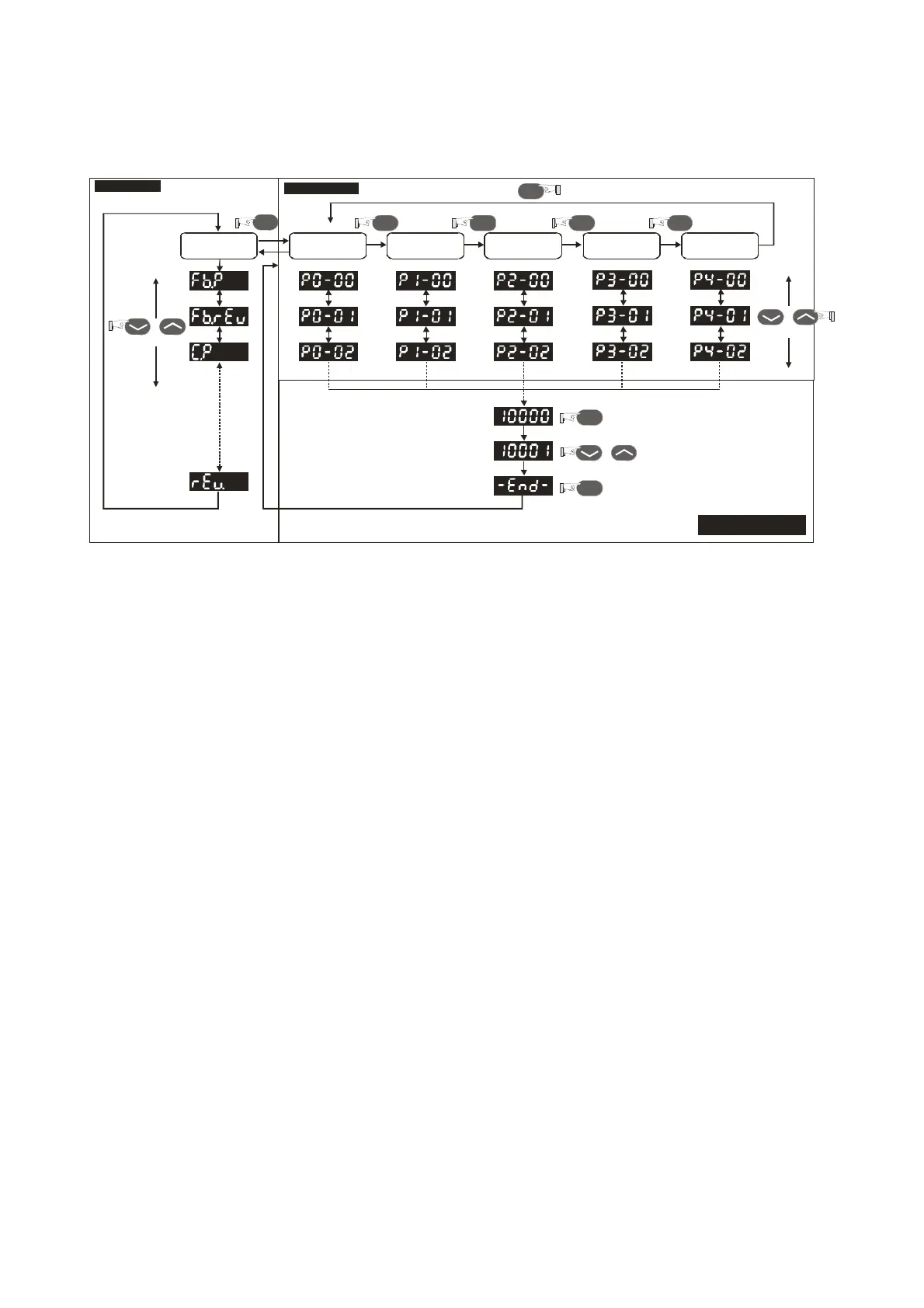

Figure 4.2 Keypad Operation
Monitor Status
Monitor
Parameter
Bas ic
Parameter
Extensi on
Parameter
Co mm unication
Paramete r
Diagnosis
Parameter
MODE
SHIFT SHIFTSHIFT SHIFT
SHIFT
to d ispla y se tting value
SET
to save setting value
SET
or
or
or
Monitor Mode
Para met e r Mod e
Parameter Setting Mode
1. When the power is applied to the AC servo drive, the LCD display will show the monitor function
codes for approximately one second, then enter into the monitor mode.
2. In monitor mode, pressing UP or DOWN arrow key can switch monitor parameter code. At this time,
monitor display symbol will display for approximately one second.
3. In monitor mode, pressing MODE key can enter into parameter mode, pressing the SHIFT key can
switch parameter group and pressing UP or DOWN arrow key can change parameter group code.
4. In parameter mode, the system will enter into the setting mode immediately after the Set key is
pressed. The LCD display will display the corresponding setting value of this parameter
simultaneously. Then, users can use UP or DOWN arrow key to change parameter value or press
Mode to exit and return back to the parameter mode.
5. In parameter setting mode, the users can move the cursor to left by pressing the SHIFT key and
change the parameter settings (blinking digits) by pressing the UP or DOWN arrow key.
6. After the setting value change is completed, press SET key to save parameter settings or execute
command.
7. When the parameter setting is completed, LCD display will show the end code “-END-“ and
automatically return back to parameter mode.
