Speed: 2700 SF/M
Table: 14" x 14"
Table Groove: 3/8" x 3/4"
Table Tilt: 46º right / 3º left
Blade Width: 1/8" minimum, 1/2" maximum
Blade Length: 82"
Capacities: Blade to Frame 12"
Table to Frame 6"
Height on Stand: 64"
Width: 31"
Depth (front to rear): 22-1/2"
Weight: 120 lbs.
SPECIFICATIONS
Motor: 1/2 H.P., 120V, Single Phase
G - Lock Plate for Blade Guide Assembly
H - Lock Screw for Blade Guide Assembly
J - Two Upper Braces for Stand - 12-3/4" long
K - Two Upper Braces for Stand - 21-1/2" long
L - Two Lower Braces for Stand - 17" long
M - Two Lower Braces for Stand - 25-3/4" long
A - Band Saw with Motor and
82" long, 1/4" wide saw blade
B - Four legs - 26-1/4" long
C - Table Assembly
D - Hardware Pack
E - Four Rubber Feet
F - Blade Guide Assembly
Your new Band Saw is shipped complete in one container. Carefully unpack the saw

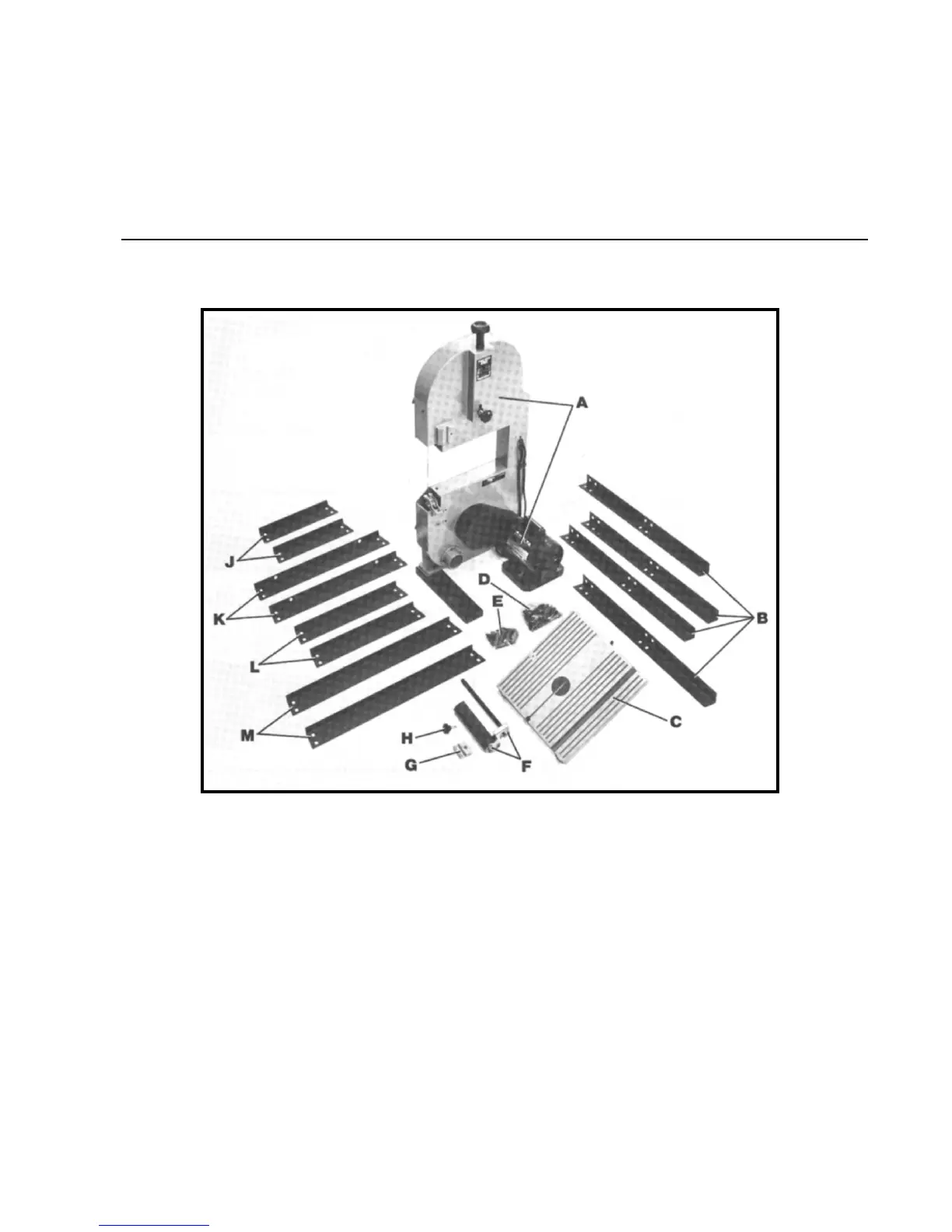

and all loose items from the shipping container. Fig. 2, illustrates the contents of the
container.
Fig. 2
UNPACKING
To Next Page
