Delta AS228R-A User Manual

2.8.2 Network Module Profiles

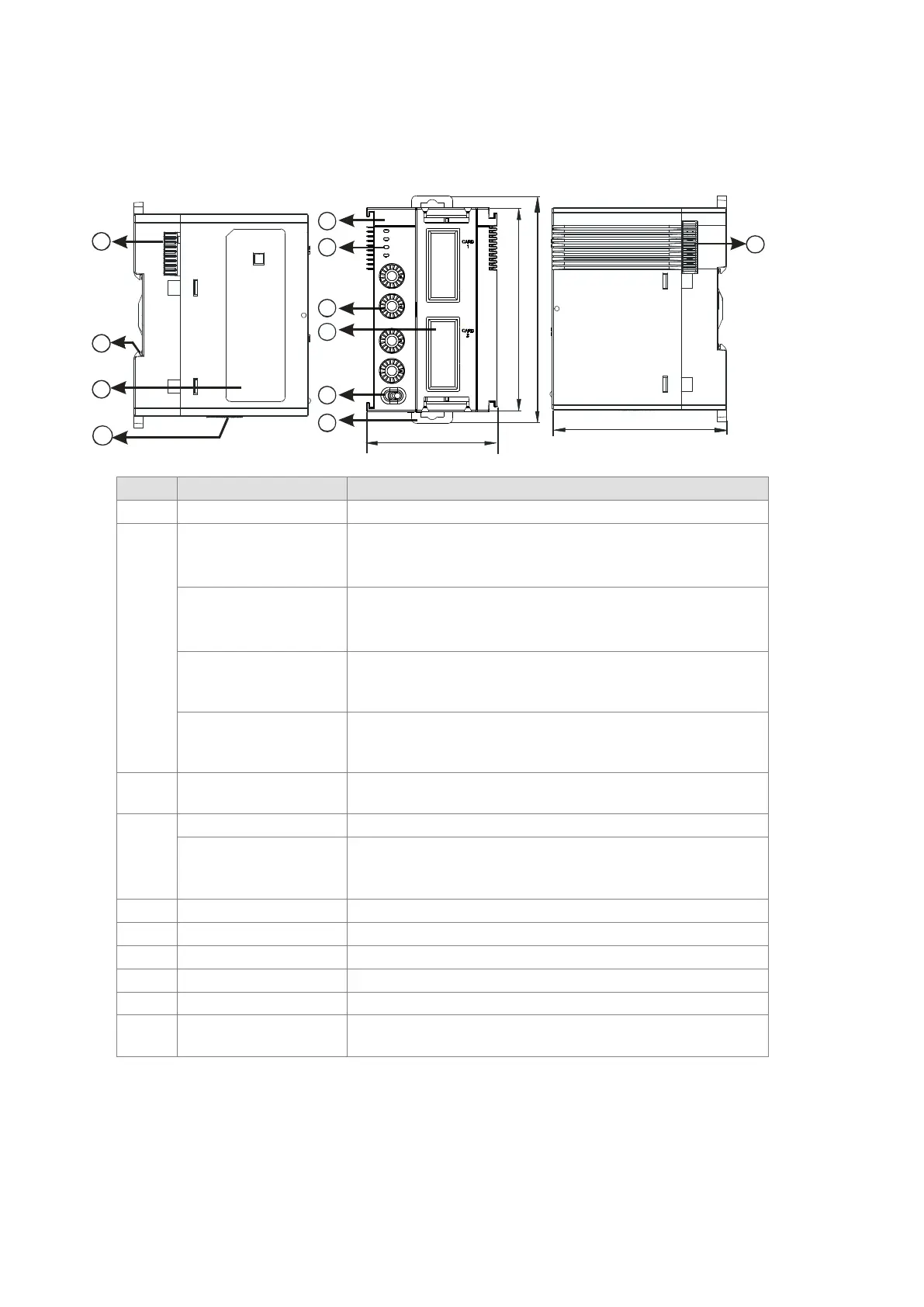

 AS00SCM-A
1
4
5
2
6
75
98 .3
88
56
3
7
8
9
7
10
SCM
POWER
CA RD 1
CA RD 2
ER RO R
F OR MA T 2
C OM . RTU
ID 2
FOR M AT 1
ID 1
Unit: mm
Number
Name
Description
1 Model name Model name of the module
2
POWER LED indicator
Indicates the status of the power supply
ON: The power is on
OFF: No power or the power is low
ERROR LED indicator
Error status of the module
OFF: The module is normal.
Blinking: Error occurs now or error had occurred before
Extension card 1
indicator
(orange)
Blinking: Communication is taking place in card 1
OFF: No communication in card 1
Extension card 2
indicator
(orange)
Blinking: Communication is taking place in card 2
OFF: No communication in card 2
3
Address and function
setting knobs
2 sets for setting up the address and function in card 1 and 2
4
Slot of function card 1 COM mode: Available for AS-F232, AS-F422, AS-F485
Slot of function card 2
COM mode: Available for AS-F232, AS-F422, AS-F485,
AS-FCOPM
RTU mode: AS-FCOPM, AS-FEN02, AS-FPFN02
5 Mode switch COM: Serial communication mode; RTU: remote module mode
6 DIN rail clip Secures the module onto the DIN rail
7 Module connecting set Connects the modules
8
Ground clip
9
Label
Nameplate
10
Input for supplying power
to remote modules
Power supply for the remote module (NOT for COM mode)
