Chapter 8 ParametersASDA-A2R Series
Revision December, 2014
8-119

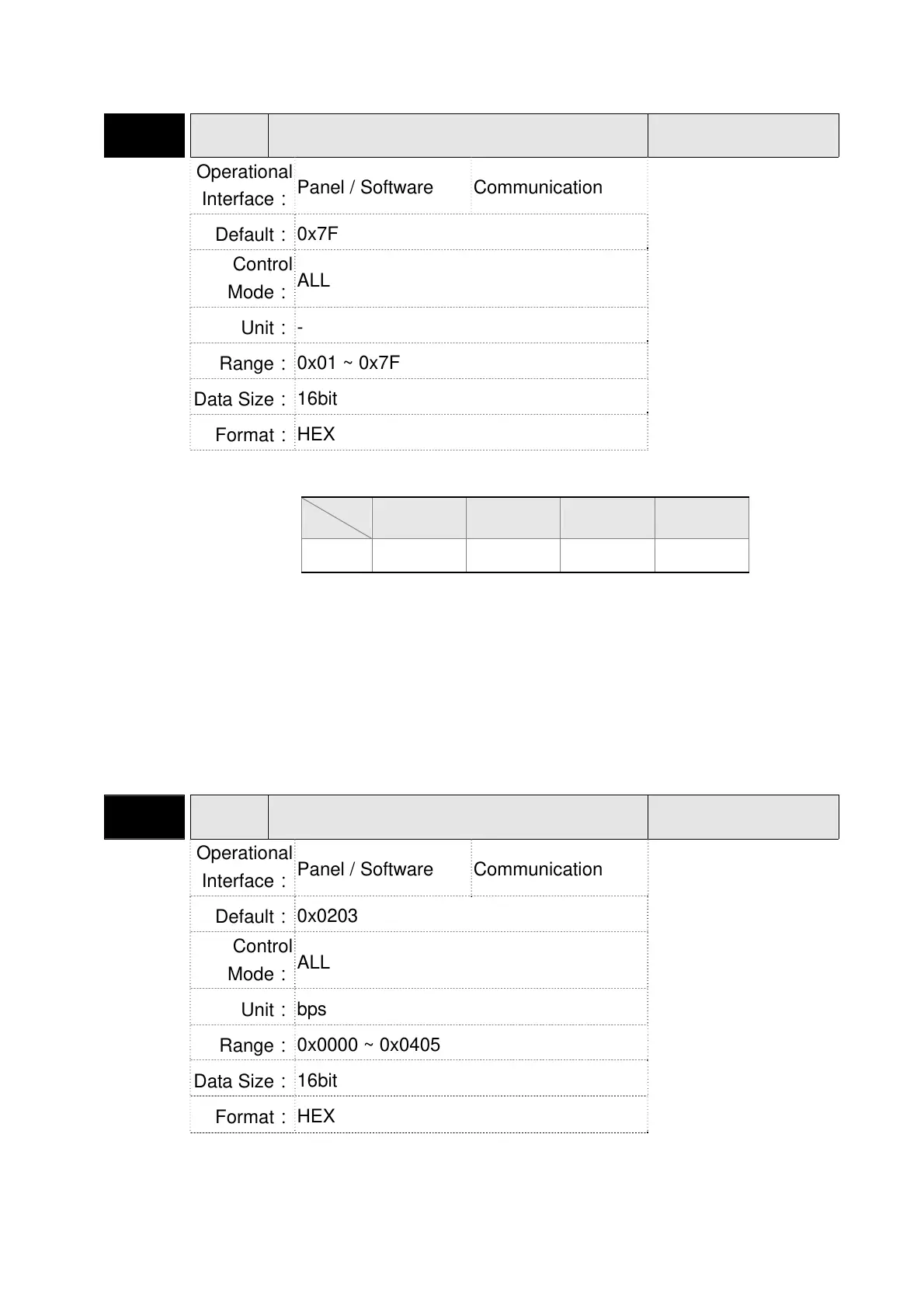

P3-xx Communication Parameters
P3-00●
ADR Address Setting
Address: 0300H
0301H
Operational
Interface：
Panel / Software Communication
Related Section:
9.2
Default：
0x7F
Control
Mode：
ALL
Unit：
-
Range：
0x01 ~ 0x7F
Data Size：
16bit
Format：
HEX
Settings：
The communication address setting is divided into Y, X
(hexadecimal):
0 0 Y X
Range
－ －
0 ~ 7 0 ~ F
When using RS-232/RS-485 to communicate, one servo drive
can only set one address. The duplicate address setting will
cause abnormal communication.
This address represents the absolute address of the servo drive
in communication network. It is also applicable to RS-232/485
and CAN bus.
When the communication address setting of MODBUS is set to
0xFF, the servo drive will automatically reply and receive data
regardless of the address. However, P3-00 cannot be set to 0xFF.
P3-01 BRT Transmission Speed
Address: 0302H
0303H
Operational
Interface：
Panel / Software Communication
Related Section:
9.2
Default：
0x0203
Control
Mode：
ALL
Unit：
bps
Range：
0x0000 ~ 0x0405
Data Size：
16bit
Format：
HEX
