DVP-ES2/EX2/EC5/SS2/SA2/SX2/SE&TP Operation Manual - Programming
3-54

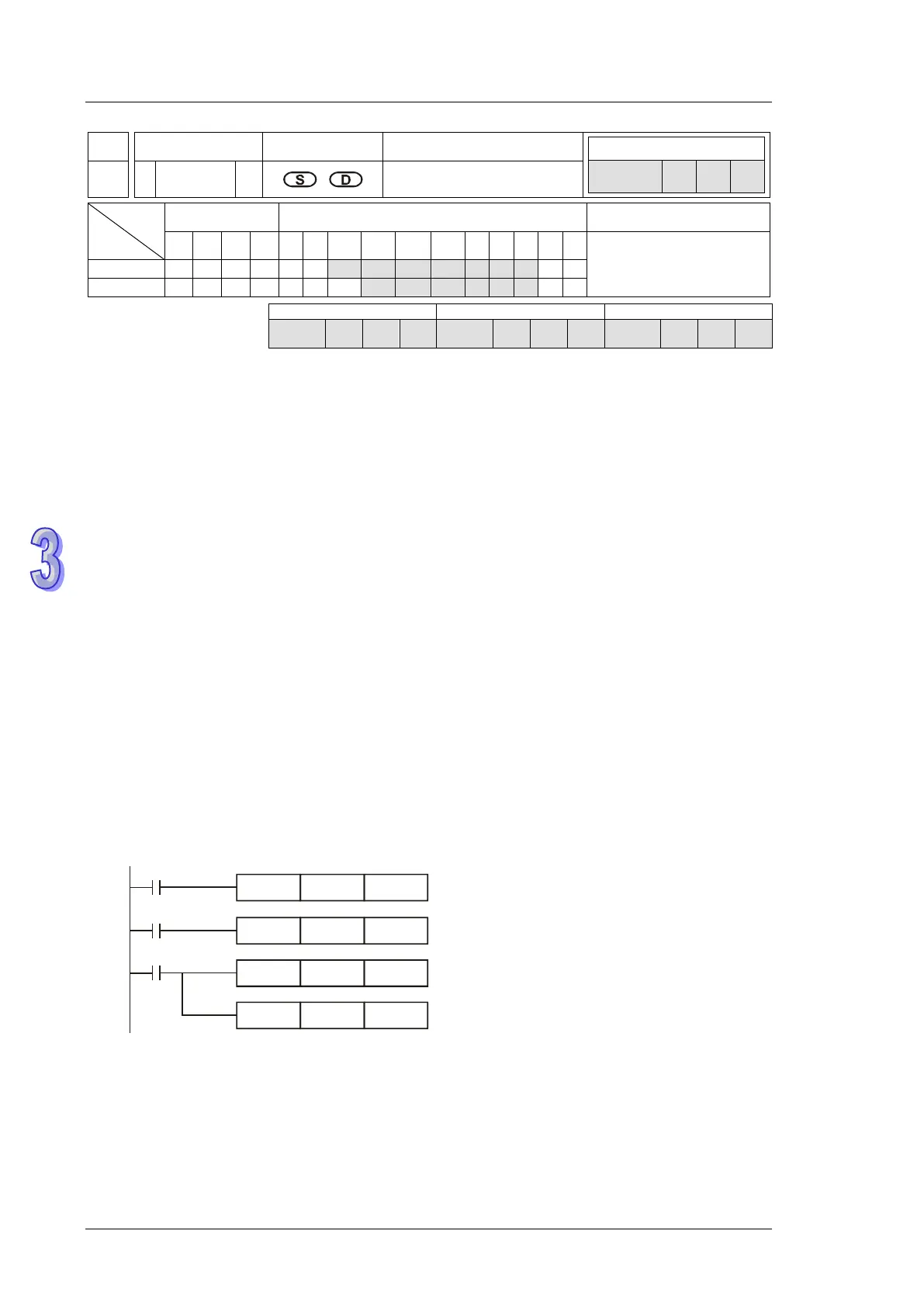

API Mnemonic Operands Function
Controllers
ES2/EX2/
EC5
SS2
SA2
SE
SX2
12 D MOV P
Move
Type
OP
Bit Devices Word devices Program Steps
X Y M S K H KnX KnY KnM KnS T C D E F
MOV, MOVP: 5 steps
DMOV, DMOVP: 9 steps
S
*
*
*
*
*
*
*
*
*
*
*
D
*
*
*
*
*
*
*
*
PULSE
16-bit
32-bit
ES2/EX2
/EC5
SS2
SA2
SE
SX2
ES2/EX2
/EC5
SS2
SA2
SE
SX2
ES2/EX2
/EC5
SS2
SA2
SE
SX2
Operands:
S: Source of data D: Destination of data
Explanations:
1. When this instruction is executed, the content of S will be moved directly to D. When this
instruction is not executed, the content of D remains unchanged
2. If operand S and D use index register F, only 16-bit instruction is applicable
Program example:
1. MOV will move a 16-bit value from the source location to the destination.
a) When X0 = OFF, the content of D0 remains unchanged. If X0 = ON, the data in K10 is
moved to D0.
b) When X1 = OFF, the content of D10 remains unchanged. If X1 = ON, the data of T0 is
moved to D10 data register.
2. DMOV will move a 32-bit value from the source location to the destination.
a) When X2 = OFF, the content of (D31, D30) and (D41, D40) remain unchanged.
b) When X2 = ON, the data of (D21, D20) is moved to (D31, D30) data register. Meanwhile,
the data of C235 is moved to (D41, D40) data register.
X0
X1
X2
MOV K10 D0
MOV T0 D10
DMOV D20 D30
DMOV C235
D40
