Delta ME300 Series User Manual

Chapter 2 DimensionsME300
2-3

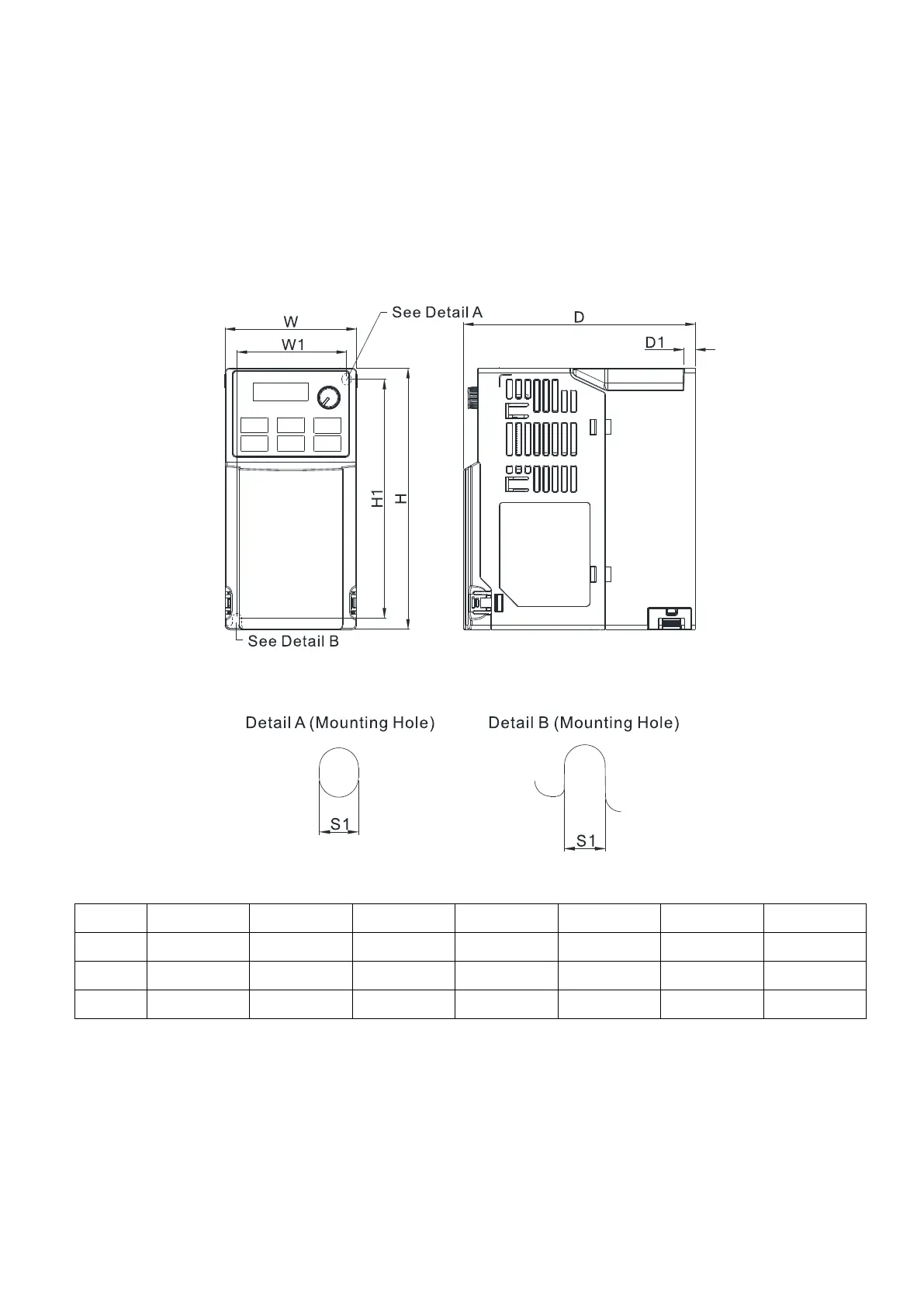

2-2 Frame B
B1: VFD7A5ME23ANNAA; VFD7A5ME23ANSAA; VFD4A2ME43ANNAA; VFD4A2ME43ANSAA
B2: VFD4A8ME21ANNAA; VFD4A8ME21ANSAA
B3: VFD0A8ME21AFNAA; VFD0A8ME21AFSAA; VFD1A6ME21AFNAA; VFD1A6ME21AFSAA;
VFD2A8ME21AFNAA; VFD2A8ME21AFSAA; VFD4A8ME21AFNAA; VFD4A8ME21AFSAA;
VFD1A5ME43AFNAA; VFD1A5ME43AFSAA; VFD2A7ME43AFNAA; VFD2A7ME43AFSAA;
VFD4A2ME43AFNAA; VFD4A2ME43AFSAA
Un
it: mm [inch]
Frame W H D W1 H1 D1 S1
B1 72.0 [2.83] 142.0 [5.59] 127.0 [5.00] 60.0 [2.36] 130.0 [5.12] 6.4 [0.25] 5.2 [0.20]
B2 72.0 [2.83] 142.0 [5.59] 127.0 [5.00] 60.0 [2.36] 130.0 [5.12] 3.0 [0.12] 5.2 [0.20]
B3 72.0 [2.83] 142.0 [5.59] 143.0 [5.63] 60.0 [2.36] 130.0 [5.12] 4.3 [0.17] 5.2 [0.20]

Delta ME300 Series Specifications

General

Power Rating	0.4 kW ~ 110 kW
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Communication	RS-485
Storage Temperature	-20-60°C
Dimensions	Varies by model
Weight	Varies by model
Input Voltage	3-phase 220VAC
Humidity	90% RH, non-condensing
