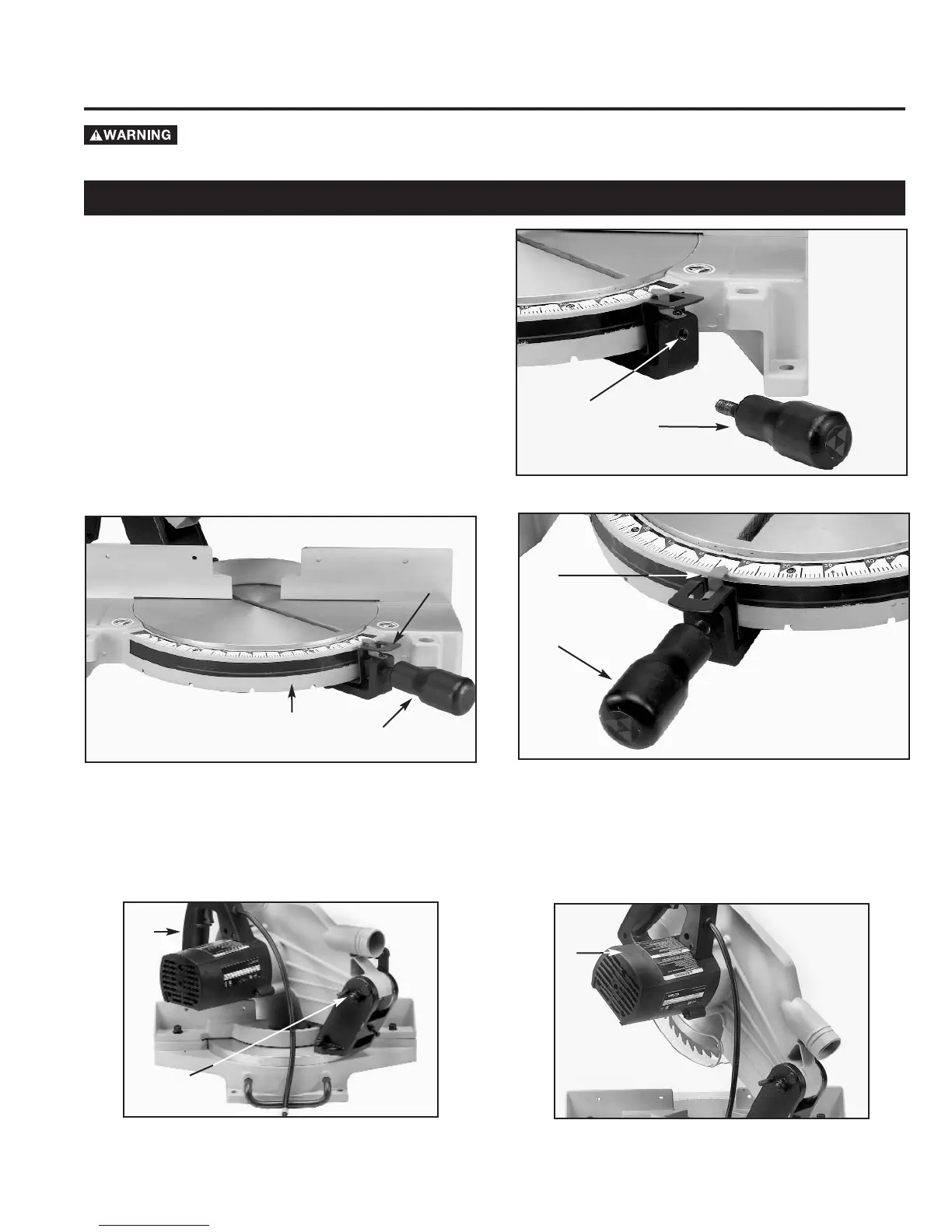

ROTATING TABLE
TO 90 DEGREE POSITION
1. Loosen table lock handle (A) Fig. 3 one or two turns
and depress index lever (B) to release 45 degree
positive stop.
2. Rotate table to the left until index stop engages with
the 90 degree positive stop (B) Fig. 4. Tighten table
lock handle (A).
Fig. 2
Fig. 3
A
B
C
For your own safety, do not connect the miter saw to the power source until the machine is
completely assembled and you read and understand the entire manual.
ATTACHING
TABLE LOCK HANDLE
Thread table lock handle (A) Fig. 2 into the threaded hole
(B) of the arm bracket.
B
A
Fig. 4
A
B
NOTICE: The manual cover photo illustrates the current production model. All other illustrations are
representative only and may not depict the actual color, labeling, or accessories, and are intended to illustrate
technique only.
ASSEMBLY
MOVING CUTTERHEAD TO THE UP POSITION
1. Push down on switch handle (A) Fig. 5, and pull out cutterhead lockpin (B).
2. Move the cutterhead (C) to the up position (Fig. 6).
Fig. 5
Fig. 6
A
B
C
