Delta RPI-H3 Owner's Manual

17
!
!

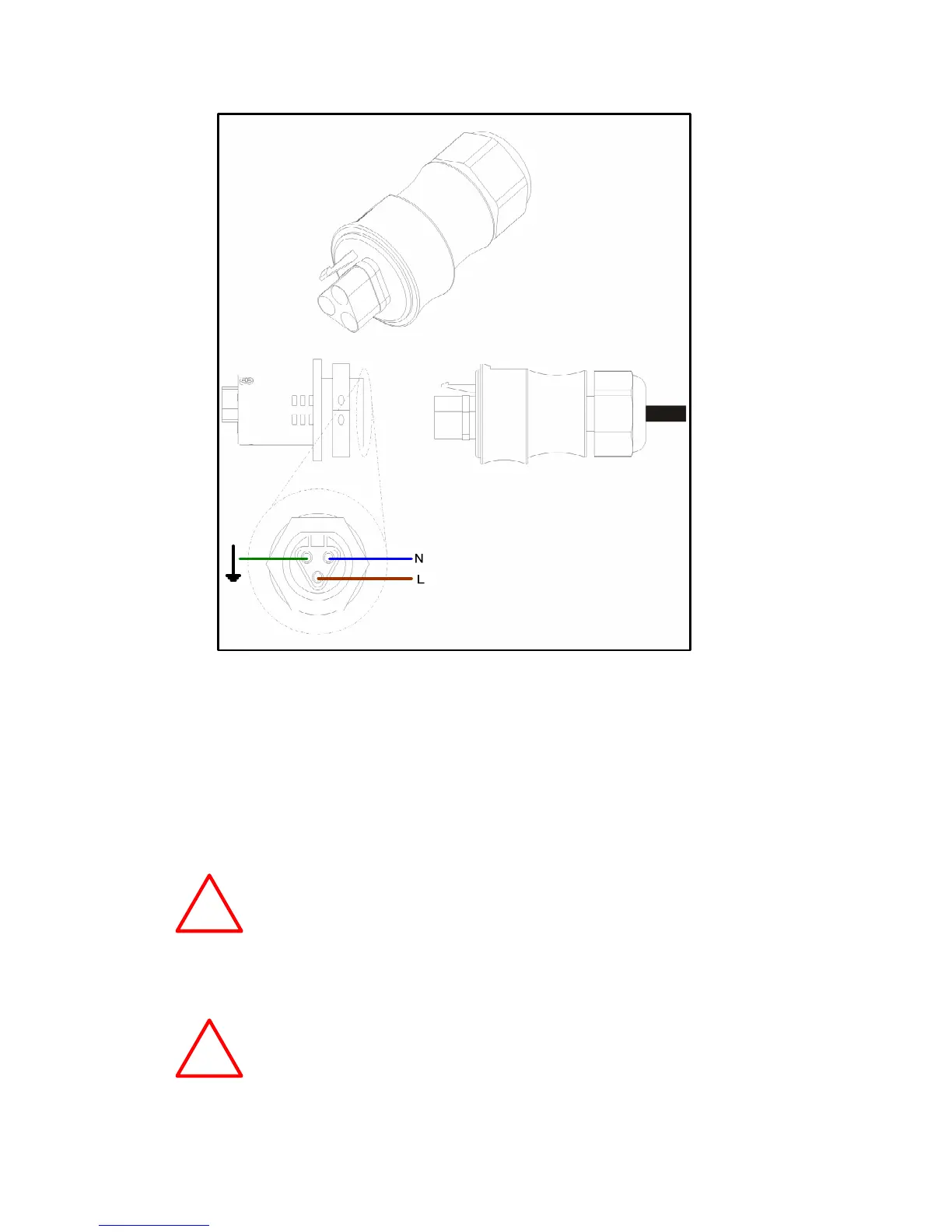

Figure 5-3 AC plug illustration
 The AC voltage should be as following.
L-N: 230 Vac± 10
5.3 DC Connection (from PV Array)
WARNING !
 When doing DC wiring, please choose the proper wiring by
connect to the correct polarity.
 When doing DC wiring, please confirm that PV Array’s power
switch is off.
CAUTION !
◆ The maximum open circuit voltage of PV Array must not
exceed 550V (RPI-H3) / 1000V (RPI-H5).
◆ The recommended PV power connect to inverter is 3600W
