7. Turn on/off PV inverter
WARNING：BURN HAZARD
The enclosure temperature may exceed over 70° C while
operating. Danger may occur owing to hot surface. Please do not
touch!
After installation, please confirm the AC, DC, and Communication connection are
correct. Turn the DC switch to the ON postion. When solar irradiation is sufficient,
the device will operate automatically after no mistakes on self-auto test (about 2
minutes at 1
st

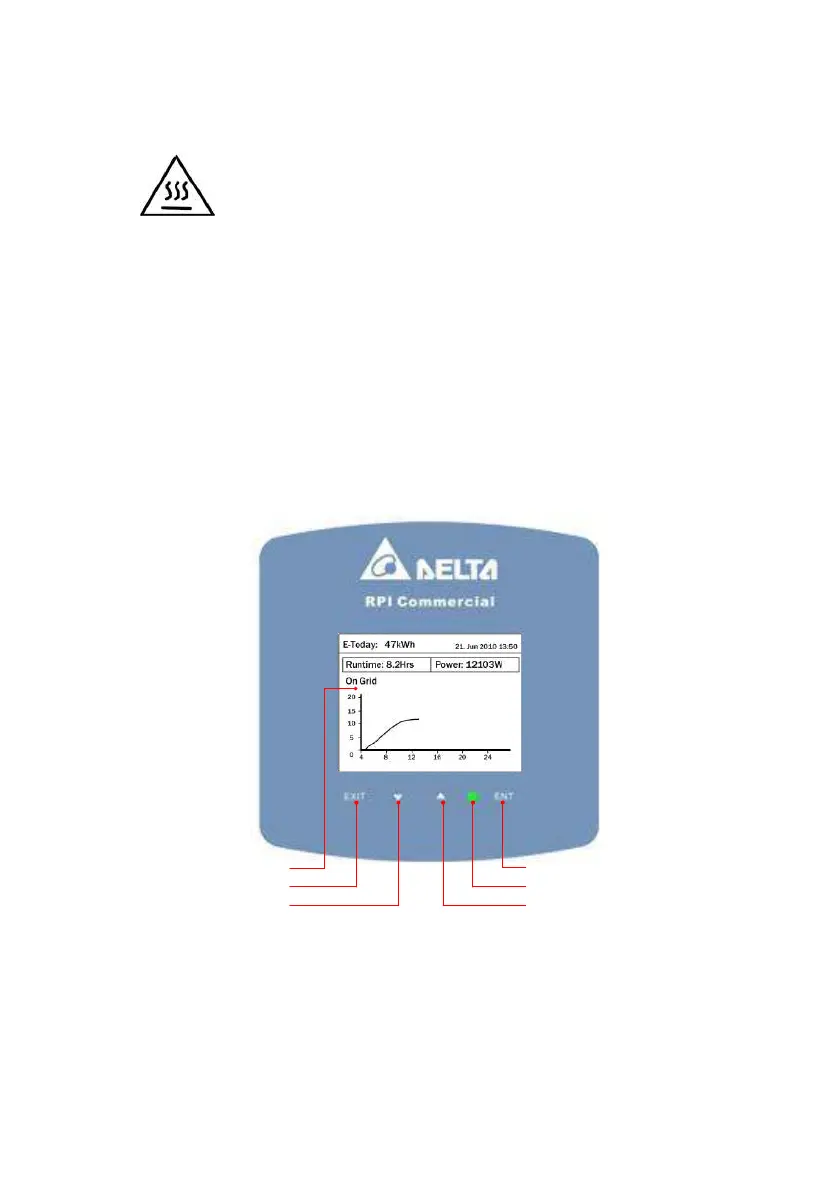

startup of a day). Please refer to the LCD Display and Control
Panel as figure 7-1. The display includes 5” graphic LCD with 320*240 dots in
resolution and LED indicator for inverter status. There are green and red colors
for LED indicator to represent different inverter working status. Please refer the
table 7-1 for detail information of LED indicator.
