7.2.6.4.1 Power Limit
User can set percentage of actual or rated power to limit inverter’s output power.
Inverter will start the action once user set Mode as “ON”. On the contrary, inverter
will stop power reduction and back to MPP Tracking once user set Mode as
“OFF”.
Active Power Control
21. Jun 2010 13:50
Actual/Rated Power
Set Point 100
Rated
[
[
]
]
%
Mode
ON[ ]

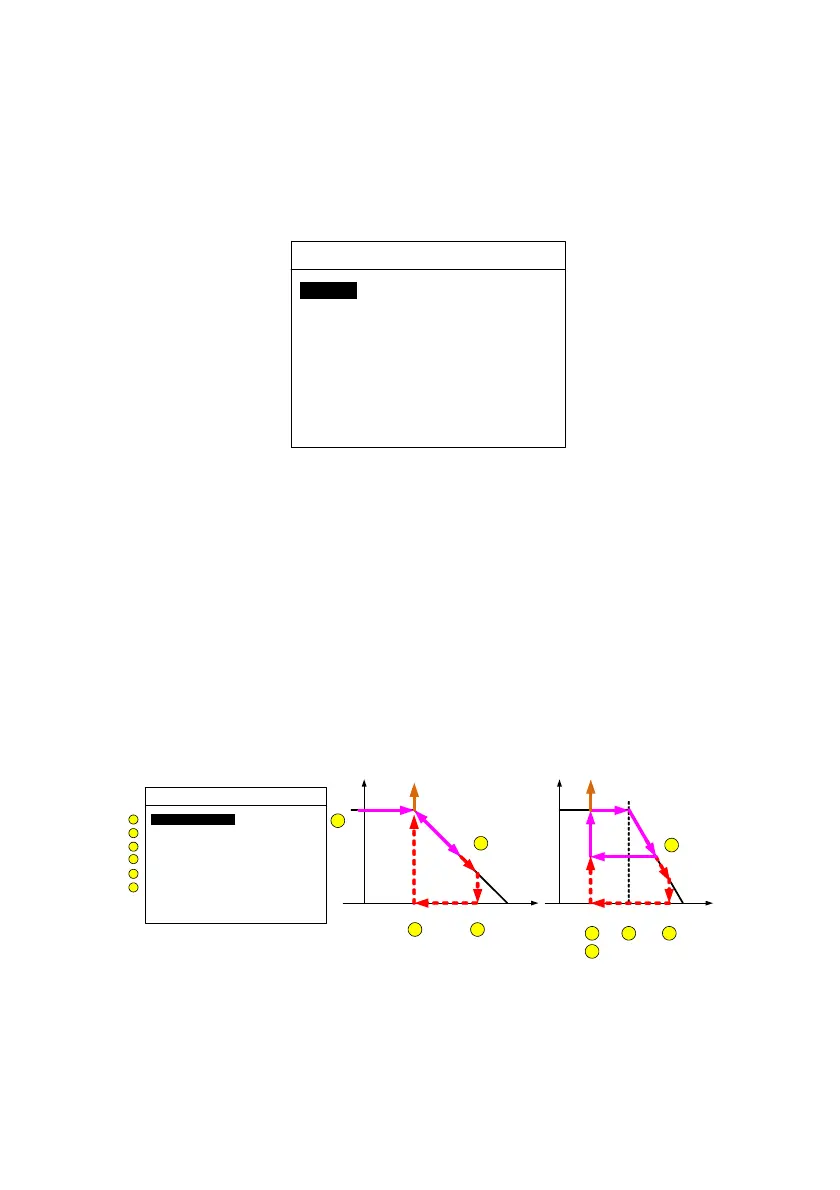

Figure 7-19 Power limit setting page
7.2.6.4.2 Power vs. Frequency
Please be noticed, the definition of Gradient is different between Italy and other
countries, the explanation as below,
- For Italy BT/ MT: It is used to calculate the frequency of zero power, ie. Fstop = fstart +
Gradient * 50
- For other countries (ex. Germany LV or MV): Gradient means the slope of power reduction,
ie. –xx%/Hz
Recovery Time is accessible only If Country setting is Italy BT or MT, means the inverter has to
stay on the power at that time and can’t increase power if frequency back to normal till this time
was up.
a
b
c
d
e
f
P
Pm
fstart
fstop
f
(
Hz
)
Statism
P
Pm
f
recovery
f
start
f
stop
f
(
Hz
)
a
b
c
d
e
e
f
Active Power Control
21. Jun 2010 13:50
Start Frequency
Actual/Rated Power Actual
50.30
[
[
]
]
Stop Frequency
- -[ ]
Hz
Hz
- -[ ] Hz
Statism 40[ ] %
Mode ON[ ]
Recovery Frequency
Recovery Time
300
[
]
s
b
c
Statism
Figure 7-20 Power vs. frequency setting page.
