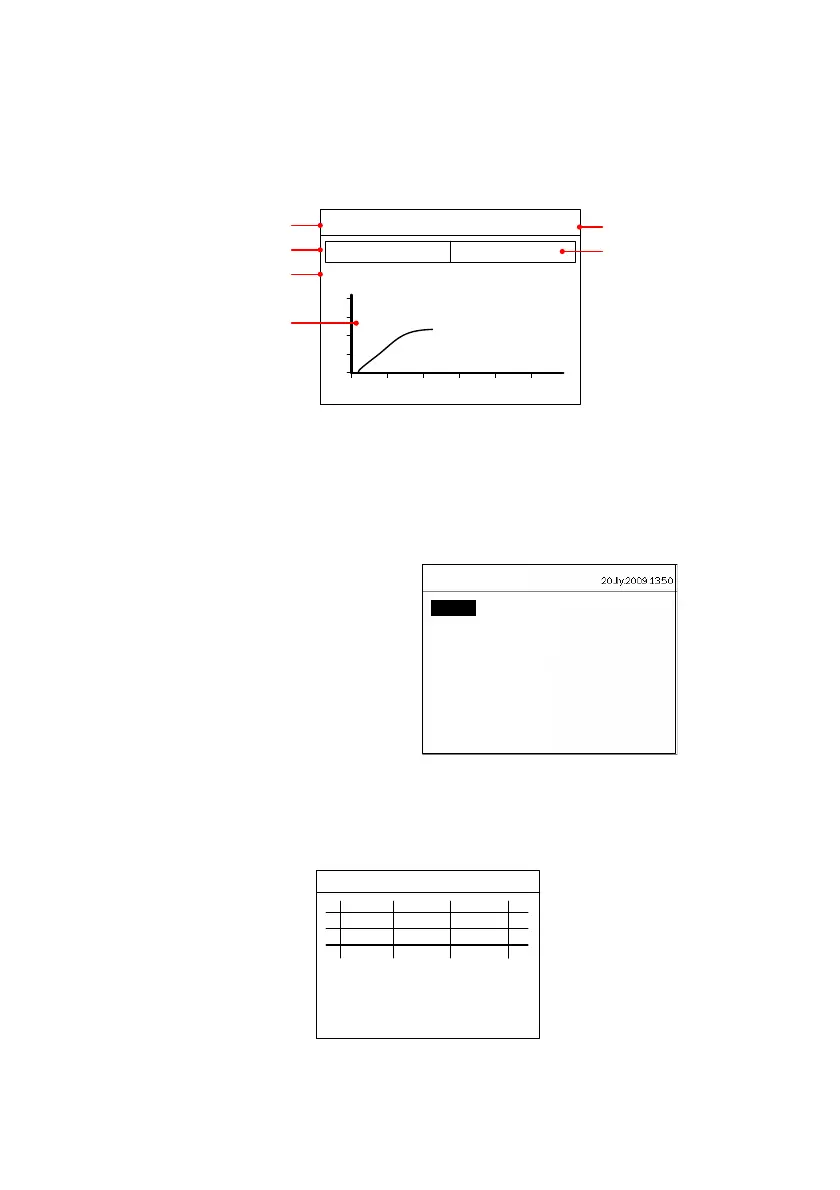

7.1 Home Page
When inverter is operating normally, LCD will show home page as Figure 7-4,
user can get the information of output power, inverter status, E-today, date and
time.
E-Today: 47kWh
21. Jun 2010 13:50
Runtime: 8.2Hrs Power: 12103W
On Grid
20
15
10
5
0
4 8 12 16 20 24
Today Energy
Today Runtime
Inverter Status
Today Power Curve
Day - Time
Output Power
Figure 7-4 Home page
7.2 LCD Flow Chart
Press EXIT button will enter menu page (Figure 7-5), E-today is home page,
every other item is described in 7.2.1 ~ 7.2.6
Power Meter 7.2.1
Energy Log 7.2.2
Event Log 7.2.3
Operation Data 7.2.4
Inverter Information 7.2.5
Setting 7.2.6
Figure 7-5 Menu page
7.2.1 Power Meter
This page shows the information about input and output power.
Power Meter
Input1 Input2
P
V
I
W
V
A
1420
222
6.4
1480
224
6.6
Output
1455
225
6.5
Today Energy:
Today Runtime:
21. Jun 2010 13:50
kWh0
Today Earning:
Today CO2 Saved:
Hours0.0
0
kg0.0
€
Figure 7-6 Power meter page
Menu
Operation Data
E-Today
Power Meter
Event Log
Energy Log
Setting
Inverter Information
