Switch 1 Switch 2
VCC ON Terminal Resistor ON
VCC OFF Terminal Resistor OFF
OFF
ON
Tabel 4-7 Terminal resister setting

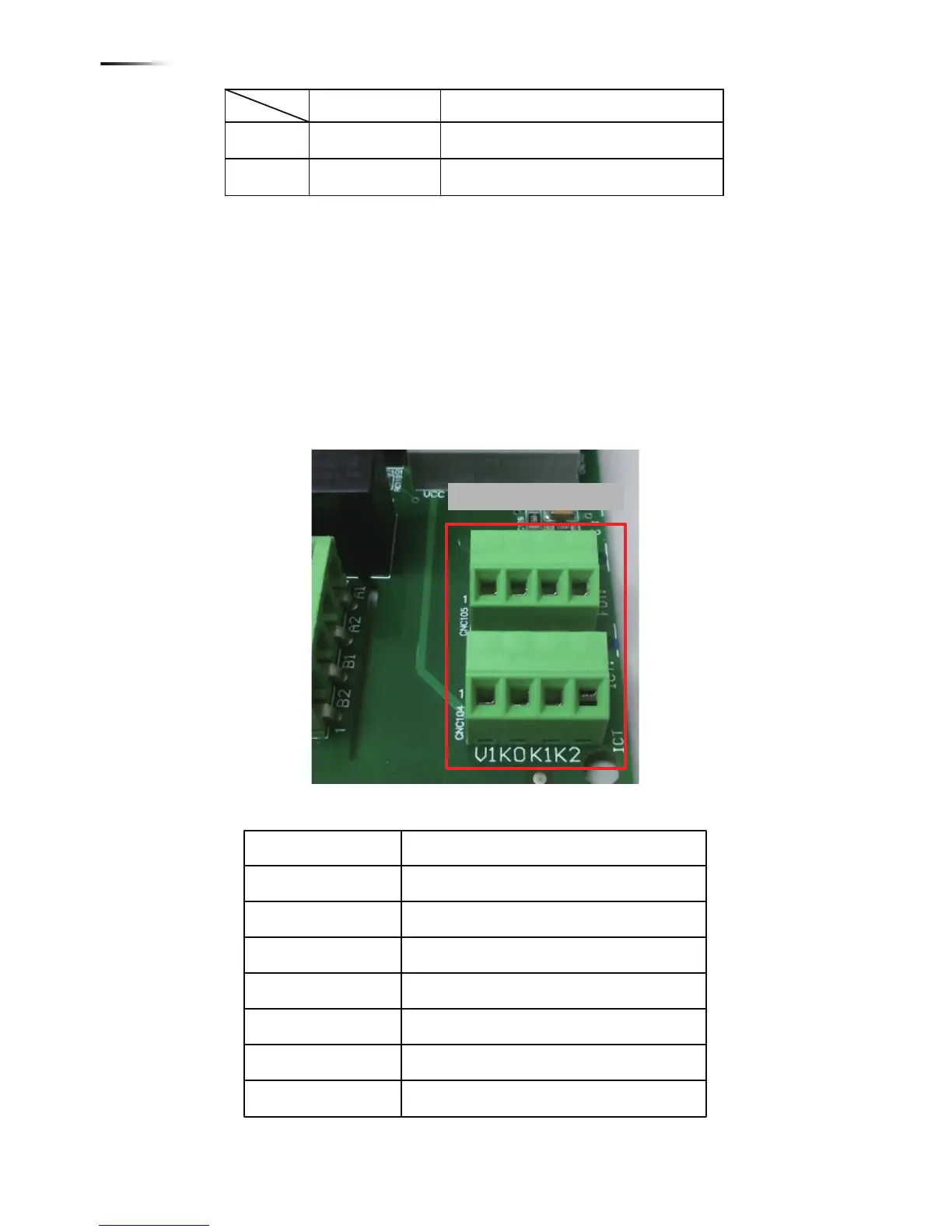

Figure 4-18 EPO functions
Tabel 4-8 Definition of digital input & EPO functions
4.5.2. EPO Functions & Digital Input
Communication Module has 1 set of emergency power off function (EPO).
Users can customize EPO function in Install Settings page. Please refer
to section 5.2.7.6 EPO. RPI M30A/ M50A also provides 6 sets of digital
input function (K1~K6). Please refer to Table 4-8 for the digital input setting.
It have to disable the function of Active/Reactive power, P-F and P(U) when
digital input setting is working.
EPO & Digital Input
Inverter’s action
Emergency power off (EPO)
0% active power
Maximum 30% active power
Maximum 60% active power
Maximum 100% active power
Reserved
Reserved
Short
V1 & K0
V1 & K1
V1 & K2
V1 & K3
V1 & K4
V1 & K5
V1 & K6
38
Wiring
To Next Page
