FOREWORD
FUNCTIONAL DESCRIPTION
The Delta Industrial Model 36-790 14" Tilting Arbor Saw includes a magnetic starter with Low-Voltage Control (LVC)
and automatic reset thermal overload, Biesemeyer® Commercial Fence System, guide bar, miter gage, 43" x 59" table
with two extension wings and fence support extension. A 16” blade can also be used to increase the capacity of the
cut. The maximum depth of cut with 14" blade is 4-1/2" (114 mm) and with a 16" blade it is 5-1/2" (140 mm). At a 45°
angle, the maximum thickness of cut with a 14" blade is 3-1/8" (79 mm) and is 4-1/8" (105 mm) with a 16" bade.
NOTICE: The photo on the manual cover illustrates the current production model. All other illustrations contained in
the manual are representative only and may not depict the actual labeling or accessories included. These are intended
to illustrate technique only.

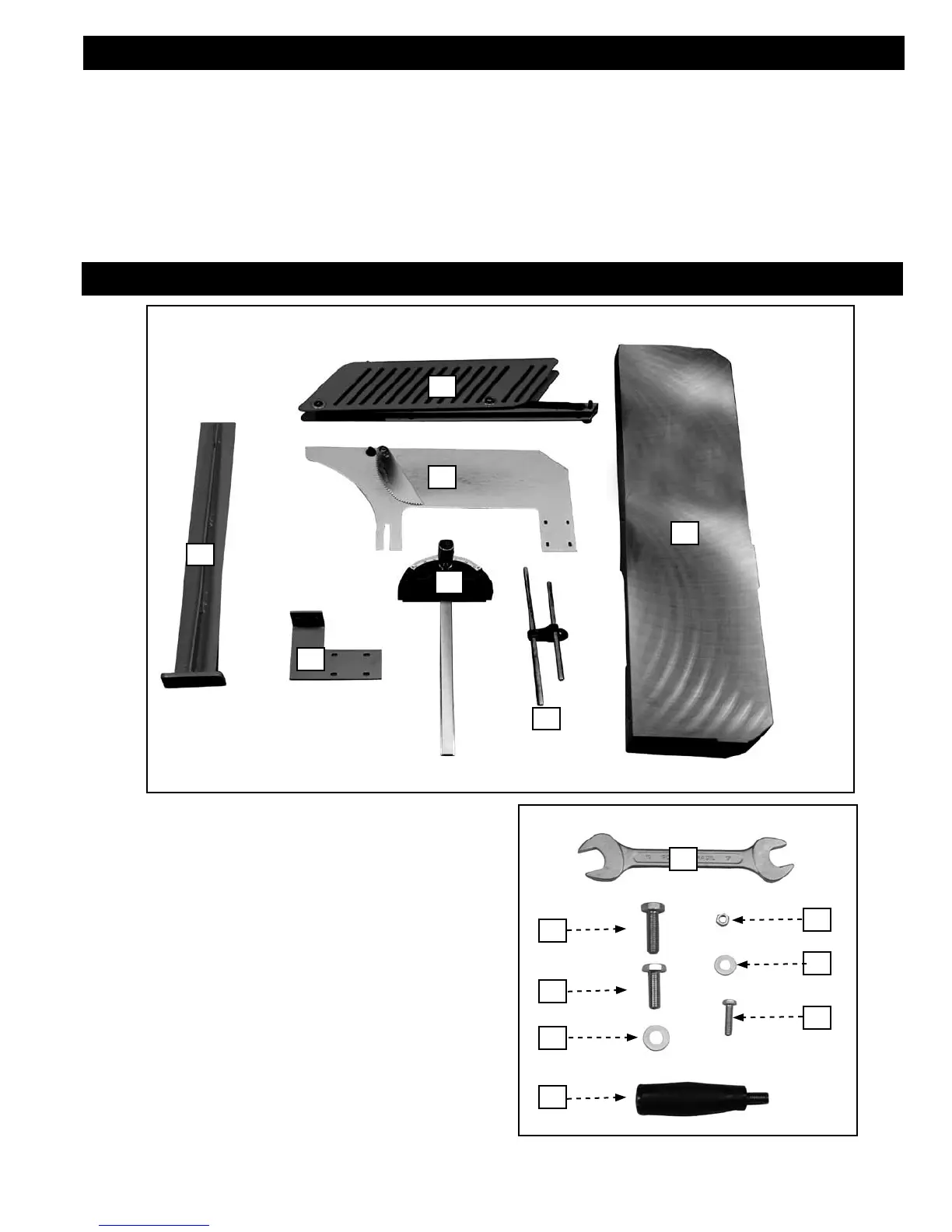

CARTON CONTENTS
1. Rip Fence Support Bracket
2. Blade Guard
3. Table Extension Wings
4. Splitter
5. Splitter Mounting Bracket
6. Miter Gauge
7. Stop Rod Assembly
8. 17mm & 19mm Open-End Wrench
9. M10 x 35mm Hex-Head Bolt
10. M6 Nut
11. M8 x 25mm Hex Head Bolt
12. 8mm Flat Washers
13. M10 Flat Washers
14. M6 x 20mm Hex-Head Bolts
15. Handle
1
2
3
4
5
6
7
8
11
9
10
12
14
13
15
