ASSEMBLY
ASSEMBLY TOOLS REQUIRED
ASSEMBLY TIME ESTIMATE
* 17mm and 19mm open end wrench (supplied)
* Blade wrench (supplied)
Assembly for this machine takes approximately 2-3 hours.

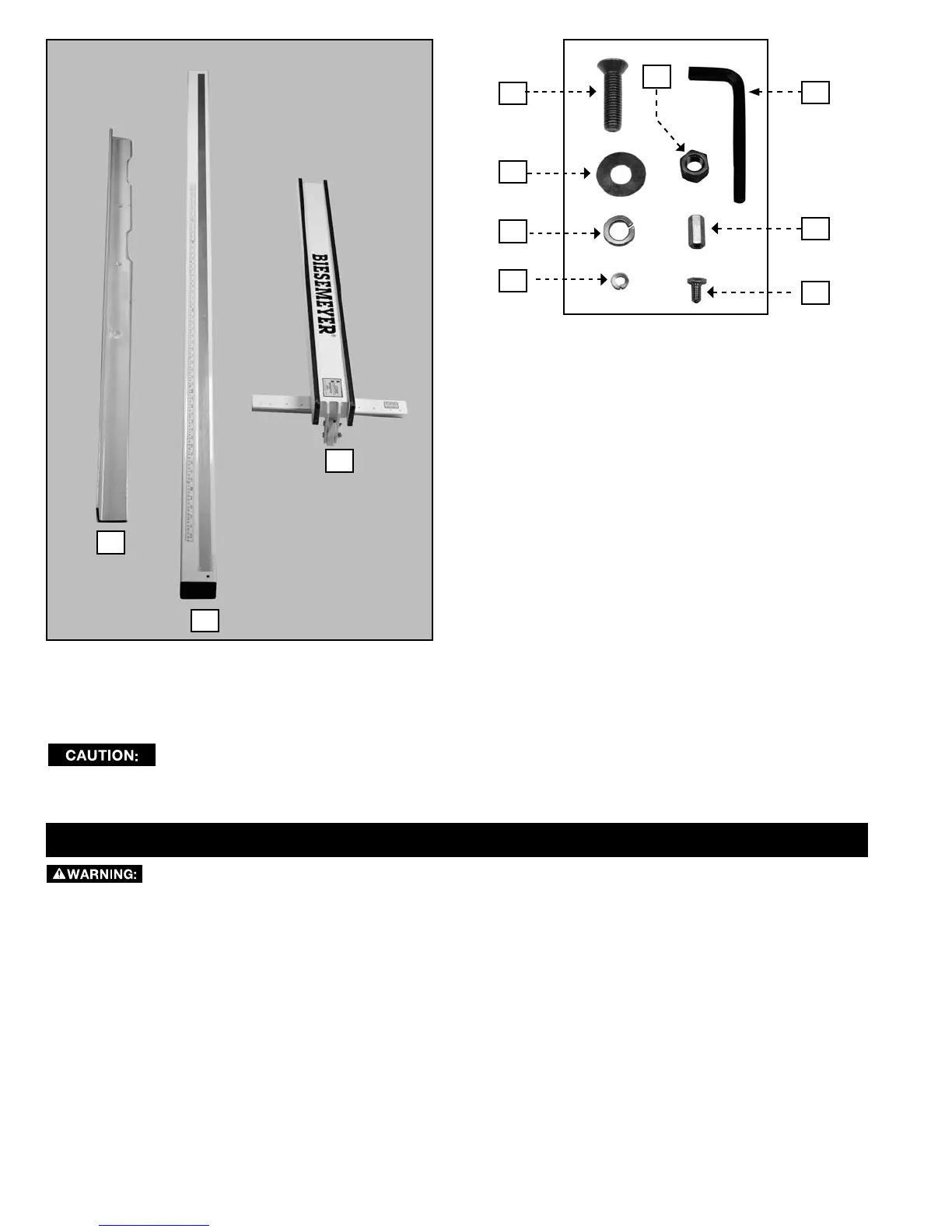

1. Front Rail
2. Guide Tube
3. Fence Assembly
4. 1/2"-13 x 2" Flat Head Bolts
5. 5/16" Hex Wrench
6. 1/2" Flat Washer
7. 1/2"-13 Hex Nuts
8. Lockwasher
9. Retaining Nut
10. Lockwasher
11. Retaining Nut Bolt
1
2
3
4
5
6
7
11
9
8
10
UNPACKING AND CLEANING
Carefully unpack the machine and all loose items from the shipping container(s). Remove the rust-preventative oil from
unpainted surfaces using a soft cloth moistened with mineral spirits, paint thinner or denatured alcohol.
Do not use highly volatile solvents such as gasoline, naphtha, acetone or lacquer thinner for cleaning your
machine.
After cleaning, cover the unpainted surfaces with a good quality household floor paste wax.
To reduce the risk of injury, turn unit off and disconnect it from power source before installing and remov-
ing accessories, before adjusting or when making repairs. An accidental start-up can cause injury.
