Delta VFD-B Series User Manual

Chapter 5 Parameters_VFD-B Series
5-68
Revision 10/2005, BE13, SW V4.08
ON ON ON
ON
OFF
1 2 3 4
ON
OFF
OFF
t
t
t
05-17
05-18
05-19
05-20
05-00
05-01
05-02
05-03
Frequency
Time
Program operation
command
Program operation
indication
Step operation
indication

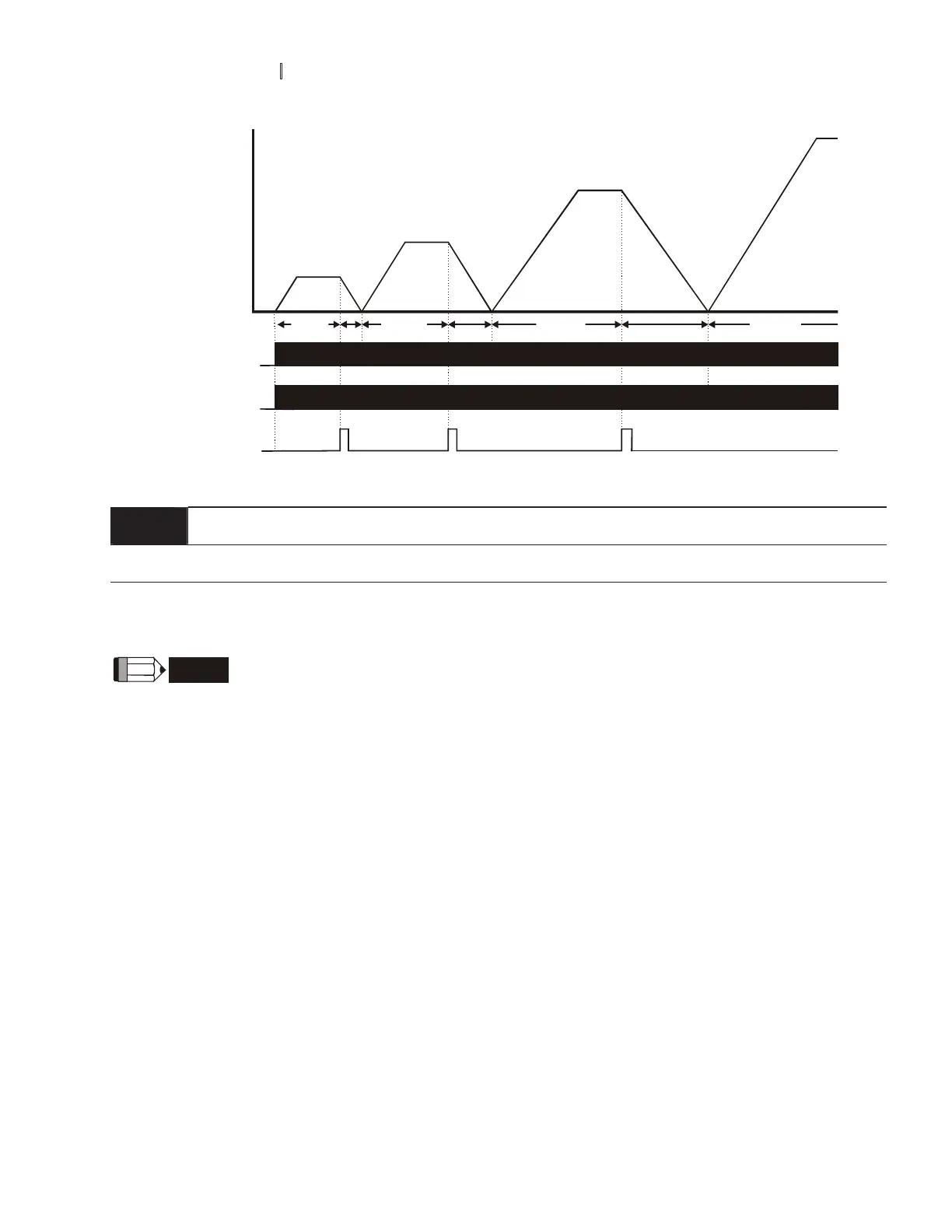

PLC operation execution one cycle step by step
05 - 16
PLC Forward/Reverse Motion Unit: 1
Settings 00 to 32767 Factory Setting: 00
This parameter controls the direction of motion for the Multi-Step Speeds Pr.05-00 to Pr.05-14 during PLC
mode. All other direction commands are invalid during the PLC mode.
NOTE
The equivalent 15-bit number is used to program the forward/reverse motion for each of the 15 speed steps. The
binary notation for the 15-bit number must be translated into decimal notation and then entered.
