Chapter 5 Methods of Anomaly Diagnosis |V FD-VJ-
5-2
5-1 Unusual Signal
5-1-1 Indicator Display
1
2
3
4

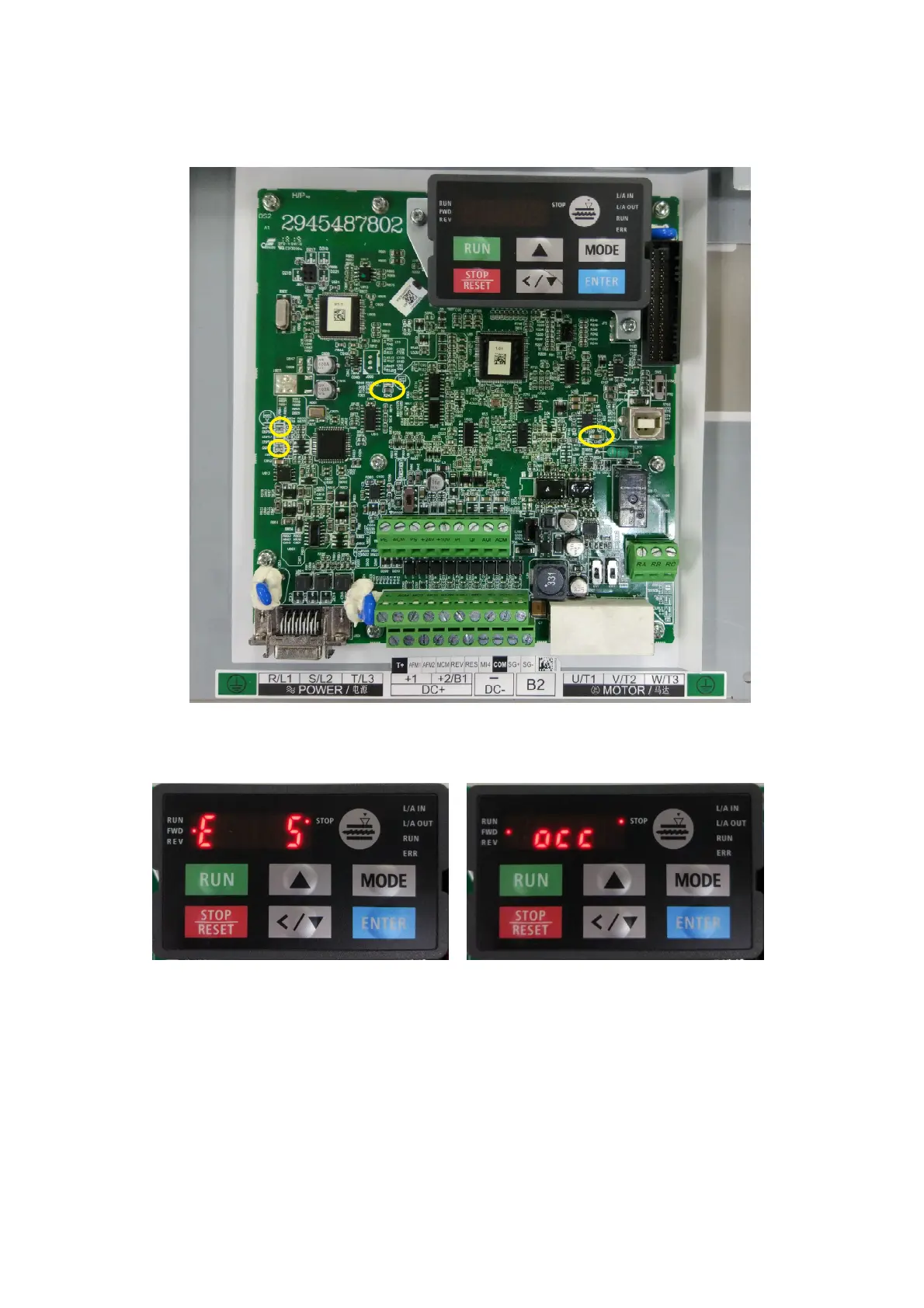

1: Power Indicator, 2: Encoder Feedback Indicator,
3: Encoder Feedback Warning Indicator, 4: Brake Indicator
Here are two images of KPVJ-LE02 displaying unusual signals. On the left, it shows the number of the
unusual signals. On the right, it shows the name of the unusual signal. The KPVJ-LE02 switches
automatically back and forth between these two ways of displaying the unusual signal.
<E> = Error, press the RESET key to clear the error.
<F> = Fault, power off the hybrid servo drive, wait for 3 minutes before you repower on the servo drive
<A> = Alarm.
