APX A Optional Accessories | VFD-VJ
Apx A-22

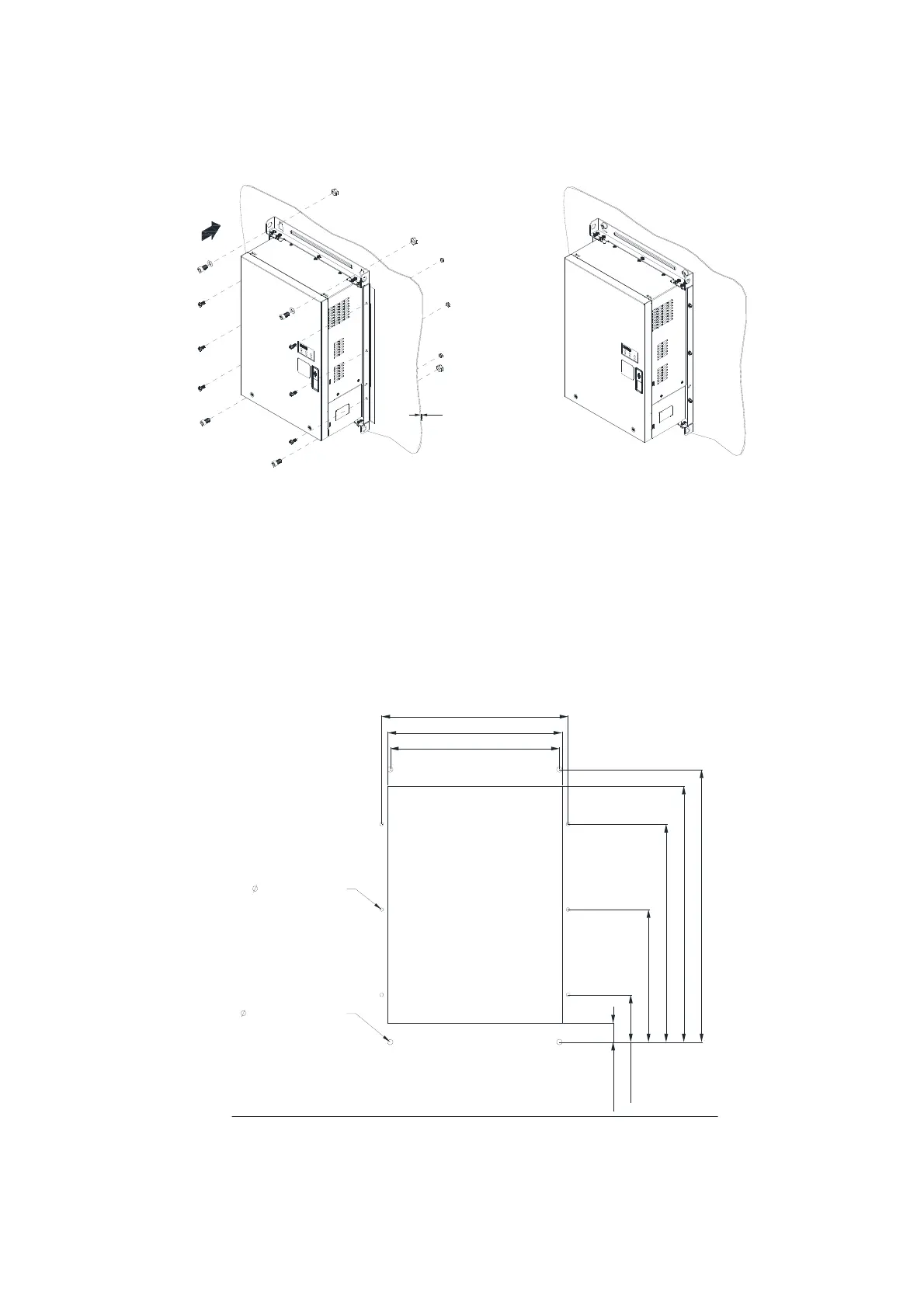

A-8 Wall-Mounted Installation
t
Push the hybrid servo drive through the wall, then fasten 4 pieces of M10 screw, 6 pieces of M6 screw
an their nuts to fix the hybrid servo drive.
M10 screw length L1 = t (wall thickness) +16mm. srew torque = 200Kg-cm [173.4lb-in.]
M6 srew length L2 = t (wall thickness) + 12mm, scfew torque = 40Kg-cm [34.7lb-in.]
Cutout Dimensions:
540 [21.26]
37.5 [1.48]
507.5 [19.98]
345 [13.58]
368.8 [14.52]
335 [13.19]
93.5 [3.68]
262.5 [10.33]
431.5 [16.99]
7 [0.28] or M6 (6X)
11 [0.43] or M10 (4X)
