PMA-2000
IV
R

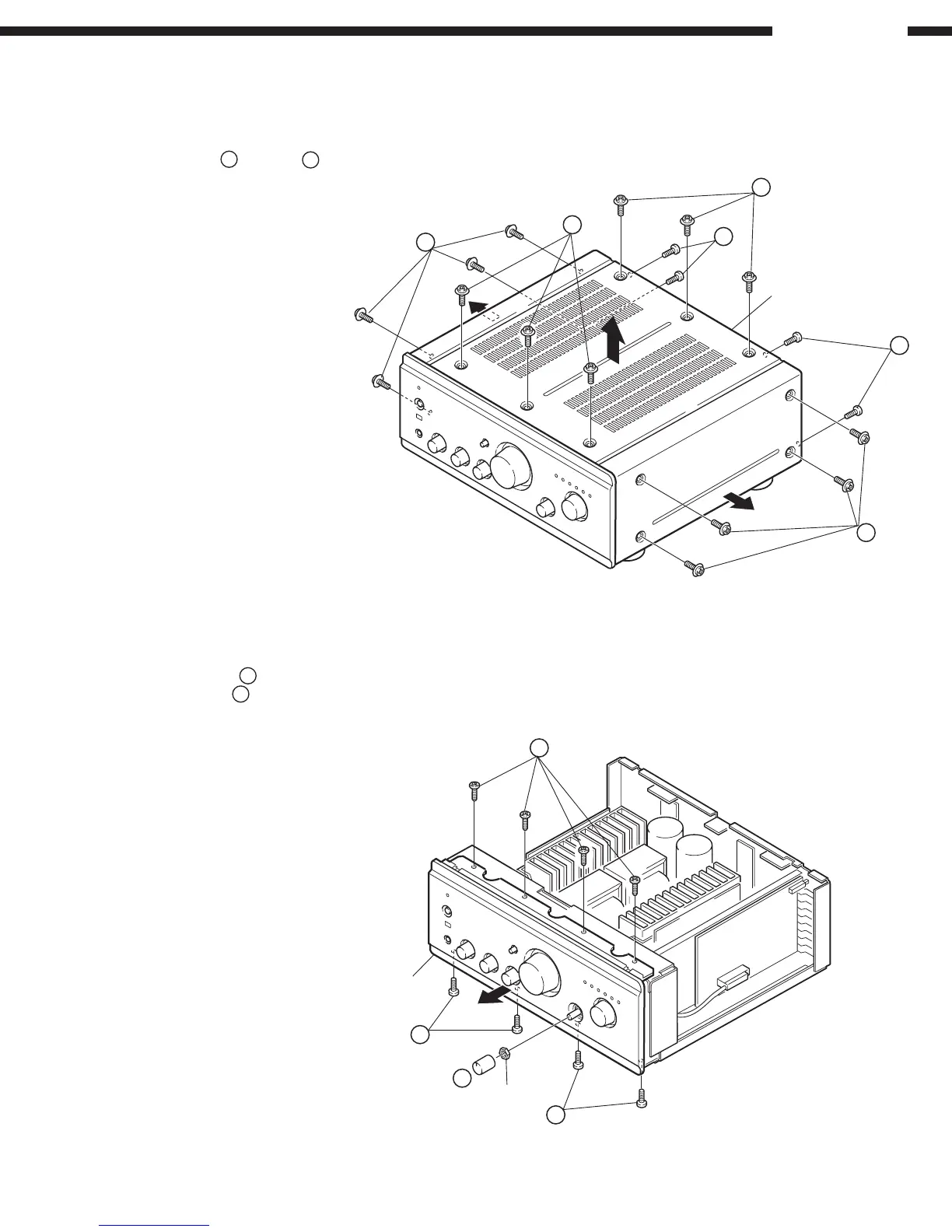

DISASSEMBLY
(Do reverse manner when assembling.)
Top Cover
Remove 14 screws
1
, 4 screws
2
and detach the Top Cover
in the arrow direction.
Top Cover
Front Panel
1. Remove 8 screws
3
.
2. Pull out the knob
4
and remove the nut, then detach the
panel in the arrow direction.
Nut
Front Panel
1
1
1
2
2
1
3
3
3
4
