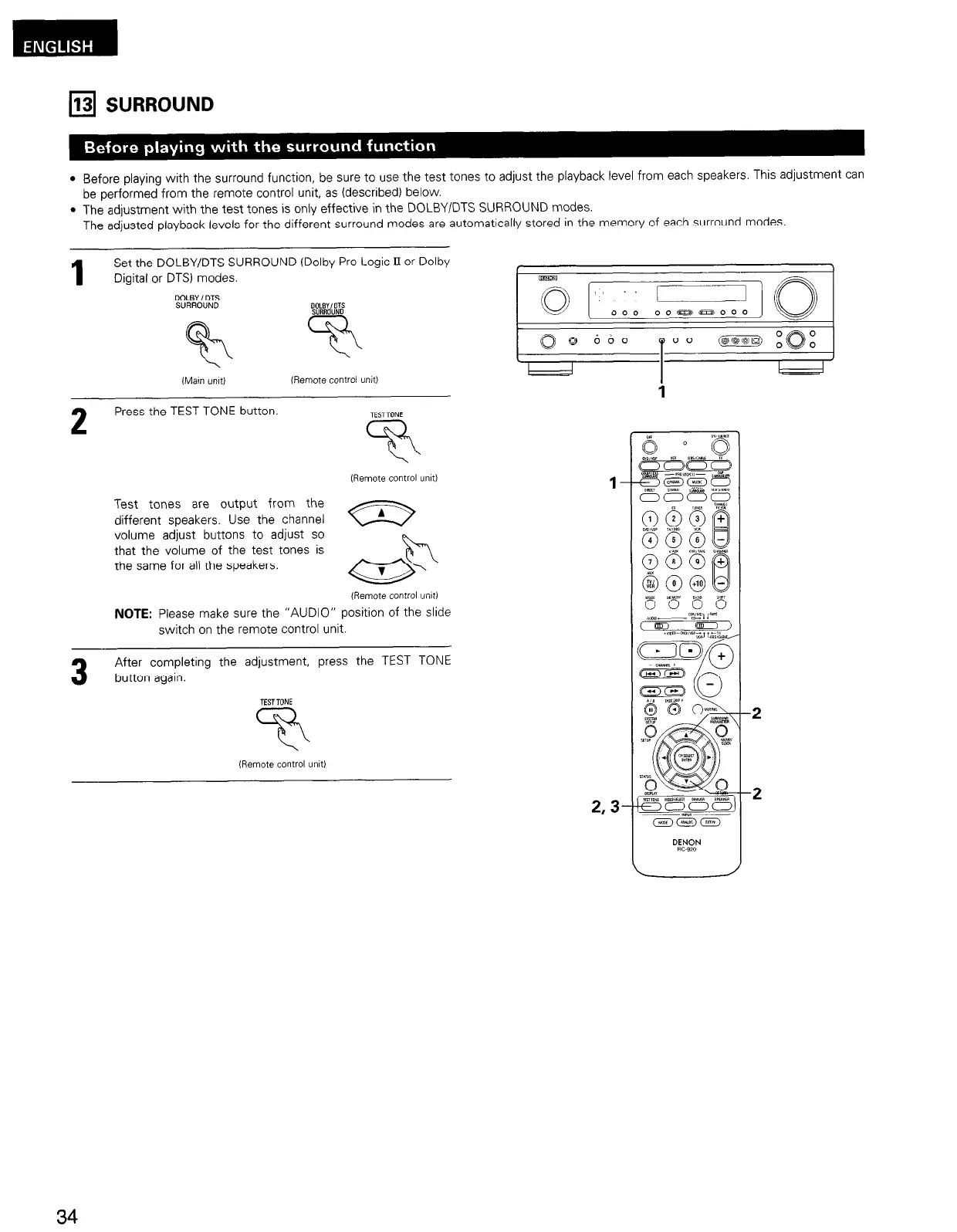

13 SURROUND
l Before playing with the surround function, be sure to use the test tones to adjust the playback level from each speakers. This adjustment can
be performed from the remote control unit, as (described) below.
l The adjustment with the test tones is only effective in the DOLBY/DTS SURROUND modes.
The adjusted playback levels for the different surround modes are automatically stored in the memory of each surround modes.
1
Set the DOLBY/DTS SURROUND (Dolby Pro Logic LI or Dolby
Digital or DTS) modes.
2
Press the TEST TONE button
TESTTONE
%
(Remote control unit)
Test tones are output from the
different speakers. Use the channel
a
volume adjust buttons to adjust so
that the volume of the test tones is
the same for all the speakers.
NOTE: Please make sure the “AUDIO” position of the slide
switch on the remote control unit.
3
After completing the adjustment, press the TEST TONE
button again.
Remote control unItI
34

Denon AVR-1603 Specifications

General

Output level	47000 mV
Receiver type	Surround
Frequency range	10 - 10000 Hz
Input sensitivity	200 mV
Audio output channels	5.1 channels
Signal-to-Noise Ratio (SNR)	96 dB
Total Harmonic Distortion (THD)	0.8 %
Power output per channel (1KHz@6 Ohm)	110 W
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	0
AC (power) in	Yes
Composite video in	4
S-Video inputs quantity	3
Digital audio coaxial in	1
Component video (YPbPr/YCbCr) in	2
Connectivity technology	Wired
Speakers connectivity type	-
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Optical drive included	No
AC input voltage	120 V
AC input frequency	60 Hz
Product color	Black
Audio decoders	DTS, Dolby Pro Logic II
Apple docking compatibility	Not supported

Weight and Dimensions

Depth	417 mm
Width	434 mm
Height	147 mm
Weight	10400 g
