Denon AVR-1603 User Manual

0

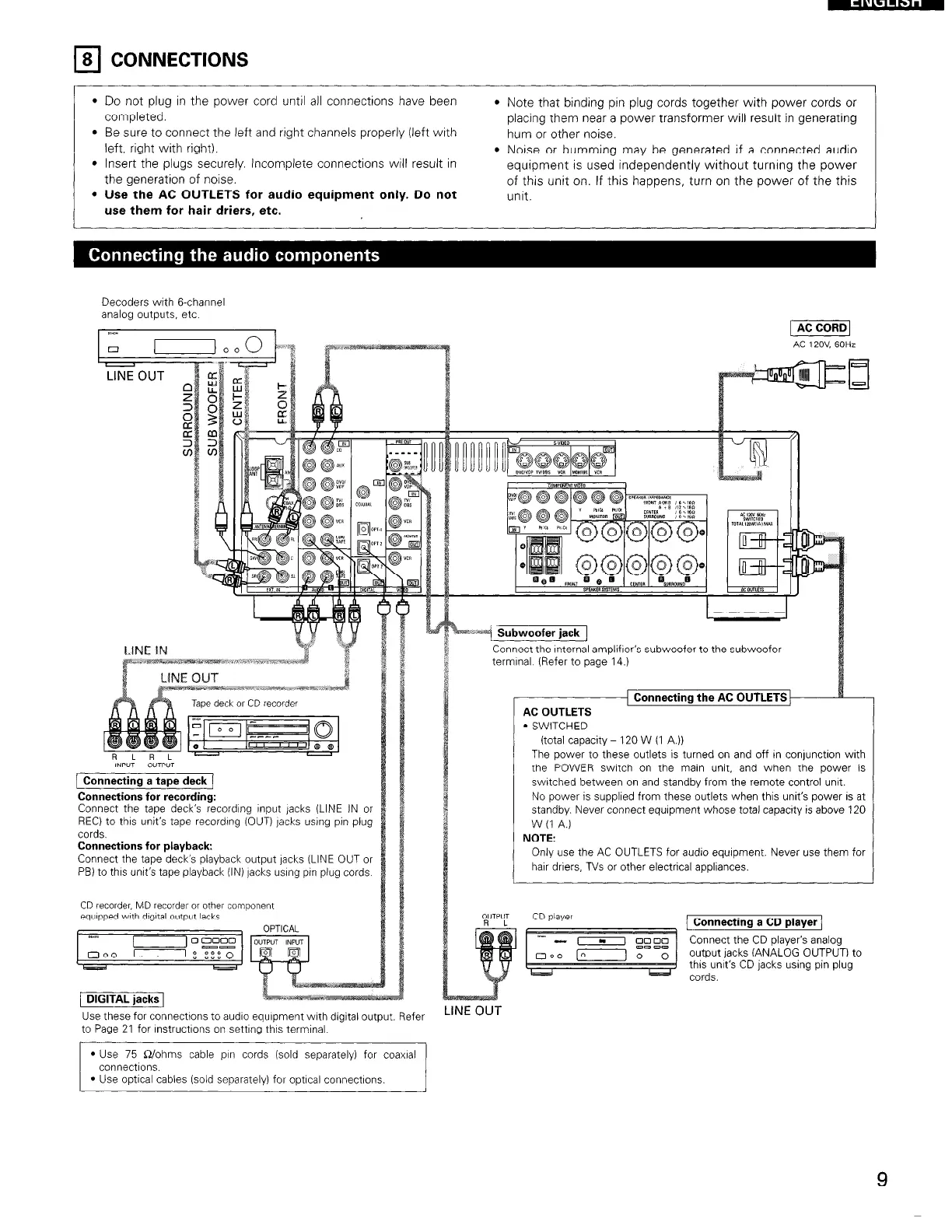

8 CONNECTIONS
l Do not plug in the power cord until all connections have been
completed.
l Be sure to connect the left and right channels properly (left with
left, right with right).
l Insert the plugs securely. Incomplete connections will result in
the generation of noise.
l Use the AC OUTLETS for audio equipment only. Do not
use them for hair driers, etc.
l Note that binding pin plug cords together with power cords or
placing them near a power transformer will result in generating
hum or other noise.
l Noise or humming may be generated if a connected audio
equipment is used independently without turnrng the power
of this unit on. If this happens, turn on the power of the this
unit.
Decoders with 6.channel
analog outputs, etc
1 Connecting a tape deck 1
Connections for recording:
Connect the tape deck’s recordrng input jacks (LINE IN or
REC) to thus unit’s tape recordrng (OUT) jacks usrng pin plug
cords.
Connections for playback
Connect the tape deck’s playback output racks (LINE OUT or
PB) to thus unrt’s tape playback (IN) racks usrng prh plug cords.
1 DIGITAL jacks 1
Use these for connections to audro equrpment wrth digital output. Refer
to Page 21 for rnstructrons oh setting this terminal.
[-I
AC 1 ZOV, 6OHz
L J
9 Subwoofer jack 1
Connect the Internal amplifier’s subwoofer to the subwoofer
termrnal. (Refer to page 14.)
AC OUTLETS
l SWITCHED
1 Connecting the AC OUTLETS 1
(total capacity - 120 W (I A.))
The power to these outlets is turned on and off rn conjunction with
the POWER swatch on the main unit, and when the power is
swrtched between on and standby from the remote control unrt.
No power IS supplied from these outlets when this unit’s power rs at
standby. Never connect equrpment whose total capacrty is above 120
W (I A.)
NOTE:
Only use the AC OUTLETS for audro equrpment. Never use them for
hair driers, TVs or other electrical appliances.
CD player
Connecting a CD player 1
Connect the CD player’s analog
output jacks (ANALOG OUTPUT) to
thus unrt’s CD jacks using pin plug
cords.
LINE OUT
l Use 75 wohms cable pm cords (sold separately) for coaxral
connectrons.
l Use optrcal cables (sold separately) for optrcal connectrons.
9

Denon AVR-1603 Specifications

General

Output level	47000 mV
Receiver type	Surround
Frequency range	10 - 10000 Hz
Input sensitivity	200 mV
Audio output channels	5.1 channels
Signal-to-Noise Ratio (SNR)	96 dB
Total Harmonic Distortion (THD)	0.8 %
Power output per channel (1KHz@6 Ohm)	110 W
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	0
AC (power) in	Yes
Composite video in	4
S-Video inputs quantity	3
Digital audio coaxial in	1
Component video (YPbPr/YCbCr) in	2
Connectivity technology	Wired
Speakers connectivity type	-
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Optical drive included	No
AC input voltage	120 V
AC input frequency	60 Hz
Product color	Black
Audio decoders	DTS, Dolby Pro Logic II
Apple docking compatibility	Not supported

Weight and Dimensions

Depth	417 mm
Width	434 mm
Height	147 mm
Weight	10400 g
