Denon AVR-1603 User Manual

El

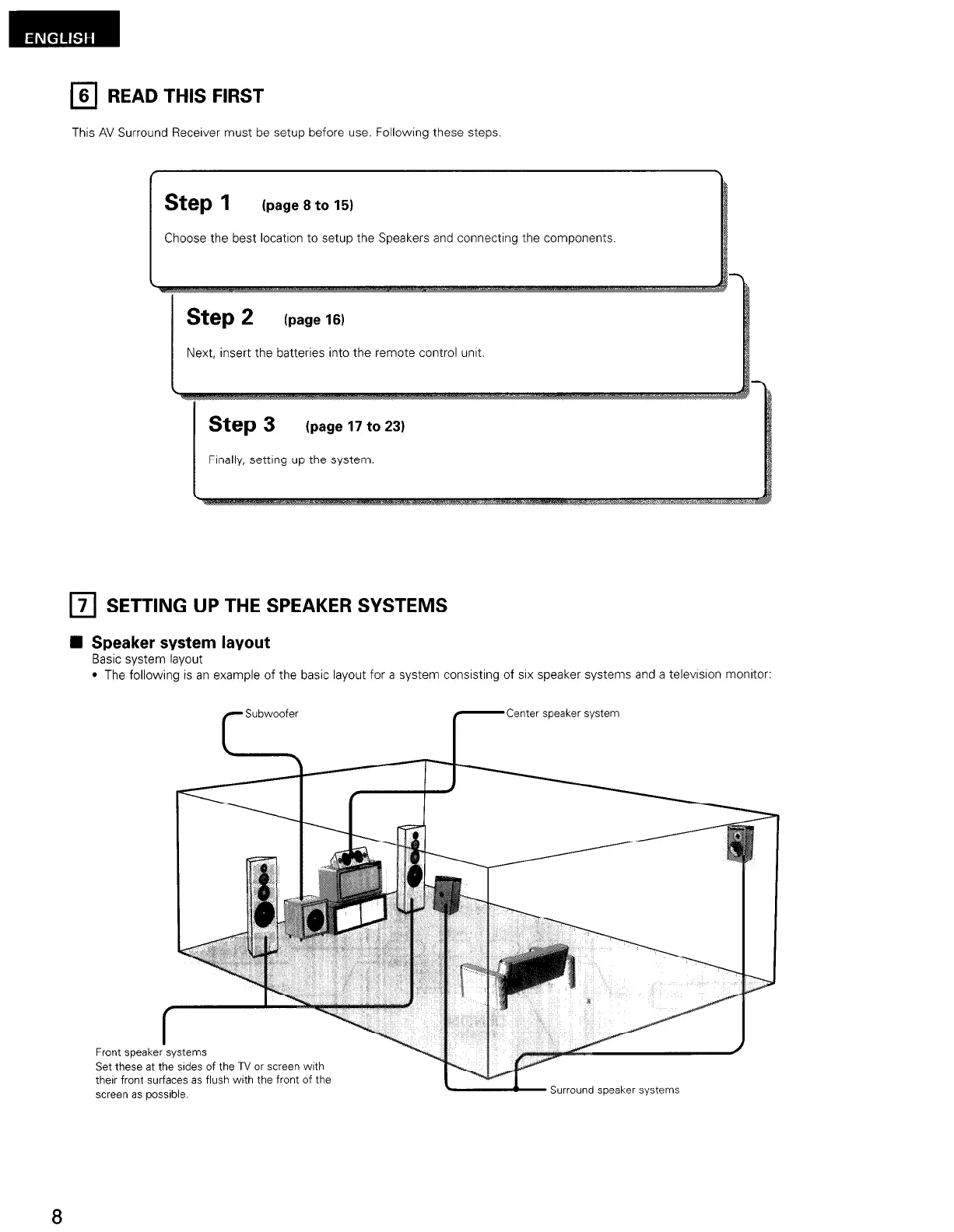

6 READ THIS FIRST
This AV Surround Receiver must be setup before use. Following these steps
Step 1
(page 8 to 151
Choose the best locatron to setup the Speakers and connecting the components
step 2 (page 161
Next, insert the batteries into the remote control unit
Finally, setting up the system. Finally, setting up the system.
Ll
7 SETTING UP THE SPEAKER SYSTEMS
n Speaker system layout
Basic system layout
l The following is an example of the basic layout for a system consisting of six speaker systems and a televrsion monitor:

Denon AVR-1603 Specifications

General

Output level	47000 mV
Receiver type	Surround
Frequency range	10 - 10000 Hz
Input sensitivity	200 mV
Audio output channels	5.1 channels
Signal-to-Noise Ratio (SNR)	96 dB
Total Harmonic Distortion (THD)	0.8 %
Power output per channel (1KHz@6 Ohm)	110 W
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	0
AC (power) in	Yes
Composite video in	4
S-Video inputs quantity	3
Digital audio coaxial in	1
Component video (YPbPr/YCbCr) in	2
Connectivity technology	Wired
Speakers connectivity type	-
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Optical drive included	No
AC input voltage	120 V
AC input frequency	60 Hz
Product color	Black
Audio decoders	DTS, Dolby Pro Logic II
Apple docking compatibility	Not supported

Weight and Dimensions

Depth	417 mm
Width	434 mm
Height	147 mm
Weight	10400 g
