10
ENGLISH
Parameter Check
This function enables you to check the measurement results and
equalizer characteristics after Audyssey Auto Setup.
1
Use ui to select “Parameter Check” and then
press ENTER.
2
Use ui to select the item you want to check, then
press ENTER or p.
Measurement results for each speaker are displayed.
Speaker Config Check
Distance Check
Channel Level Check
Crossover Check
EQ Check
Restore
AUTO SETUP
PARAMETER CHECK
Show speaker configuration result
Speaker Config. Check
Distance Check
Channel Level Check
Crossover Check
EQ Check
Check the speaker configuration.
Check the distance.
Check the channel level.
Check the crossover frequency.
Check the equalizer.
• If “EQ Check” is selected in step 2, press ui to select equalizing
curve (“Audyssey” or “Audyssey Flat”) to be checked.
Use
o p to switch the display between the different speakers.
3
Press RETURN.
The confirmation screen reappears. Repeat step 2.
Retrieving Audyssey Auto Setup settings
If you set “Restore” to “Yes”, you can return to Audyssey Auto Setup
measurement result (value calculated at the start by MultEQ
®
) even
when you have changed each setting manually.

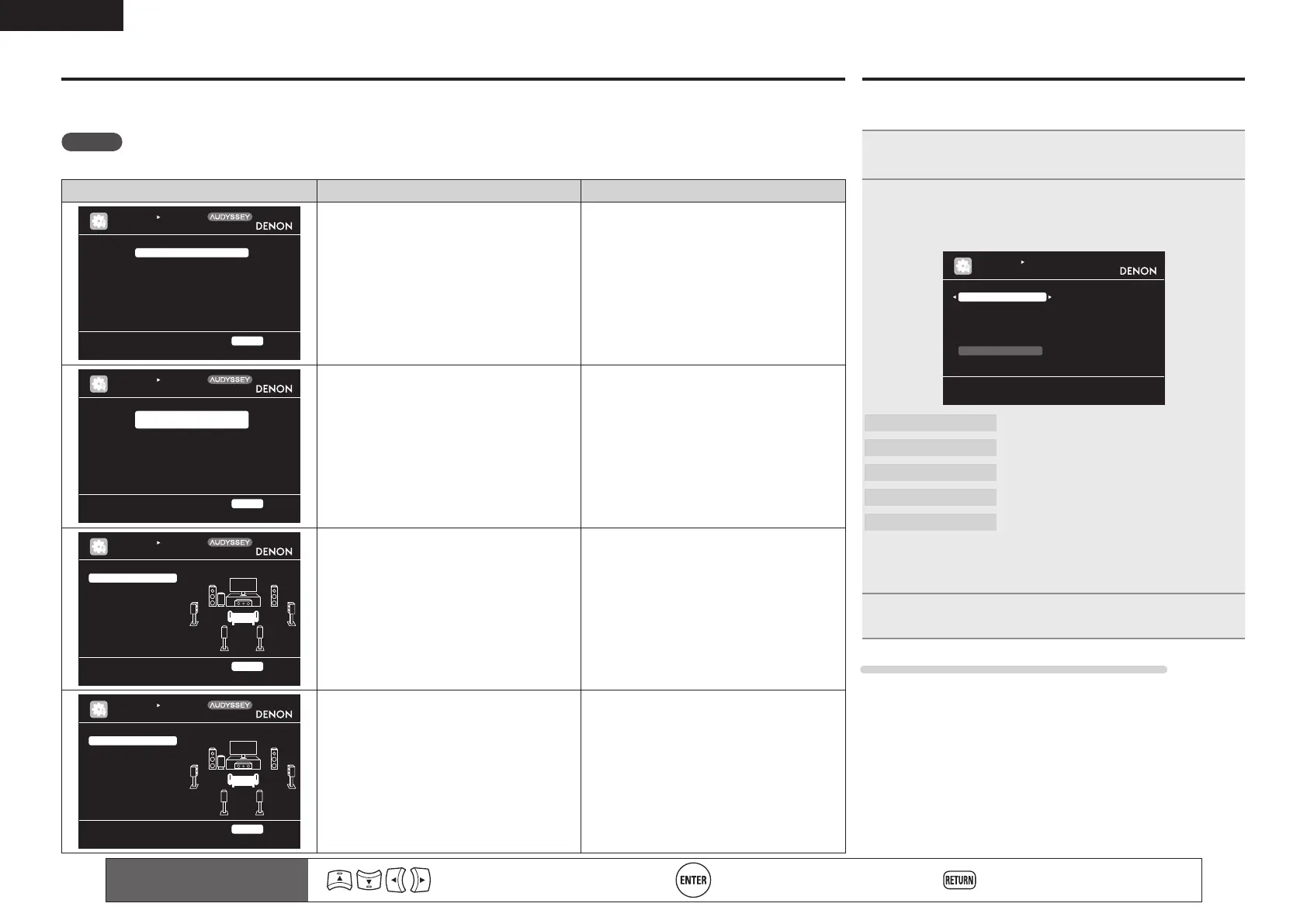

Error messages
An error message is displayed if Audyssey
®
Auto Setup could not be completed due to speaker placement, the measurement environment, etc.
If this happens, check the relevant items, be sure to take the necessary measures, then perform Audyssey Auto Setup over again.
NOTE
Be sure to turn off the power before checking speaker connections.
Examples Error details Measures
Caution!
No microphone or Speaker
Retry
Check cause of problem!
AUTO SETUP
AUDYSSEY AUTO SETUP
MultEQ
RETURN Cancel
• The connected setup microphone is broken,
or a device other than the supplied setup
microphone is connected.
• Not all speakers could be detected.
• The front L speaker was not properly
detected.
• Connect the included setup microphone to
the SETUP MIC jack of this unit.
• Check the speaker connections.
Caution!
Ambient noise is too high
or Level is too low
Retry
Check cause of problem!
AUTO SETUP
AUDYSSEY AUTO SETUP
MultEQ
RETURN Cancel
• There is too much noise in the room for
accurate measurements to be made.
• Speaker or subwoofer sound is too low for
accurate measurements to be made.
• Either turn off any device generating noise or
move it away.
• Perform again when the surroundings are
quieter.
• Check the speaker installation and the
direction in which the speakers are facing.
• Adjust the subwoofer’s volume.
Caution!
Check cause of problem!
Retry
Front R None
AUTO SETUP
AUDYSSEY AUTO SETUP
MultEQ
RETURN Cancel
• The displayed speaker could not be detected. • Check the connections of the displayed
speaker.
Caution!
Check cause of problem!
Retry
Skip
Front L Phase
AUTO SETUP
AUDYSSEY AUTO SETUP
MultEQ
RETURN Cancel
• The displayed is connected with the polarities
reversed.
• Check the polarities of the displayed speaker.
• For some speakers, this error message may
be displayed even if the speaker is properly
connected. If you are sure the connection is
correct, press ui to select “Skip”, then
press ENTER.
Remote control operation
buttons
Move the cursor
(Up/Down/Left/Right)
Confirm the setting Return to previous menu
To Next Page
