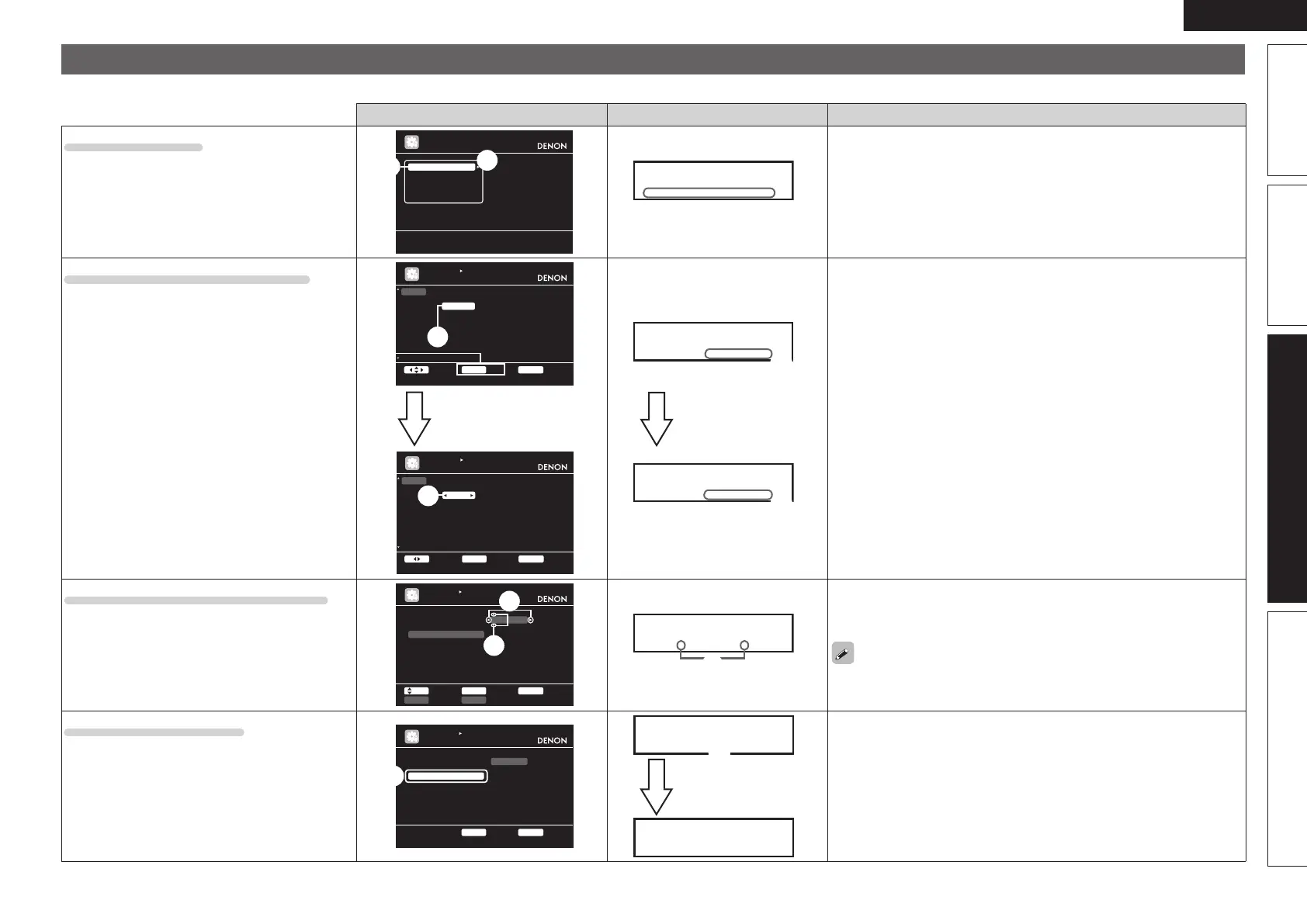

Examples of menu and front display
Below we describe typical examples of displays on the TV screen and on the set’s display window.
Menu Display Front Display Description
Top menu display
Adjust various audio and video parameters
Audio/Video Adjust
Information
Auto Setup
Manual Setup
Input Setup
MENU
q
w
w
* M EN U
A / V Ad ju st –
q The menu items are displayed here.
w The selected line is displayed here.
The currently selected item is displayed on the display.
Use ui to move to the item you want to set.
Display when changing settings
BD
DVD
TV
SAT/CBL
DVR
GAME
V.AUX
Change HDMI input connector assignment
INPUT SETUP
INPUT ASSIGN
ENTER EnterSelect RETURN Return
Default
HDMI1
HDMI2
None
HDMI3
HDMI4
HDMI5
HDMI6
[ HDMI ]
None
Coax1
Opt1
Coax2
Opt2
None
None
[ DIGITAL ]
None
1-RCA
None
2-RCA
None
None
None
[ COMP ]
q
w
BD
DVD
TV
SAT/CBL
DVR
GAME
V.AUX
Assign HDMI 1 input connector
ENTER EnterSelect RETURN Cancel
Default
HDMI1
HDMI2
None
HDMI3
HDMI4
HDMI5
HDMI6
[ HDMI ]
None
Coax1
Opt1
Coax2
Opt2
None
None
[ DIGITAL ]
None
1-RCA
None
2-RCA
None
None
None
[ COMP ]
INPUT SETUP
INPUT ASSIGN
e
Press ENTER.
q
* I np ut A ss i g n
B D [H D M I 1 ]
e
* I np ut A ss i g n
B D •H D M I 1 –
Press ENTER.
q Use
uio p to move to the item you want to set.
w Press ENTER to set to the mode in which the setting can be made.
e 0 1 is displayed at the sides of item whose setting can be changed.
Use o p to change to the desired setting.
Display when inputting characters
DVD
Default
DVD
INPUT SETUP
RENAME
RETURN CancelENTER,0-9 Enter
Input
a/A KeyboardSHIFT SEARCH
w
q
q
* R en am e: DV D
• DV D –
q When o p is pressed, the cursor moves to the left or right.
w When ui is pressed at the position where you want to input the
character, the character is input.
For inputting characters on a keyboard screen or with the number buttons
on the remote control unit, see page 46.
Display when resetting
DVD
Default
DVD
INPUT SETUP
RENAME
RETURN ReturnENTER Enter
q
* R en am e
D e fa ul t? : • N o
q
* R en am e
D e fa ul t
Press ENTER.
q Press
i to select “Default”, then press ENTER to set.
w Press o to select “Yes”, then press ENTER.
