33
ENGLISH
Basic versionSimple version InformationAdvanced version

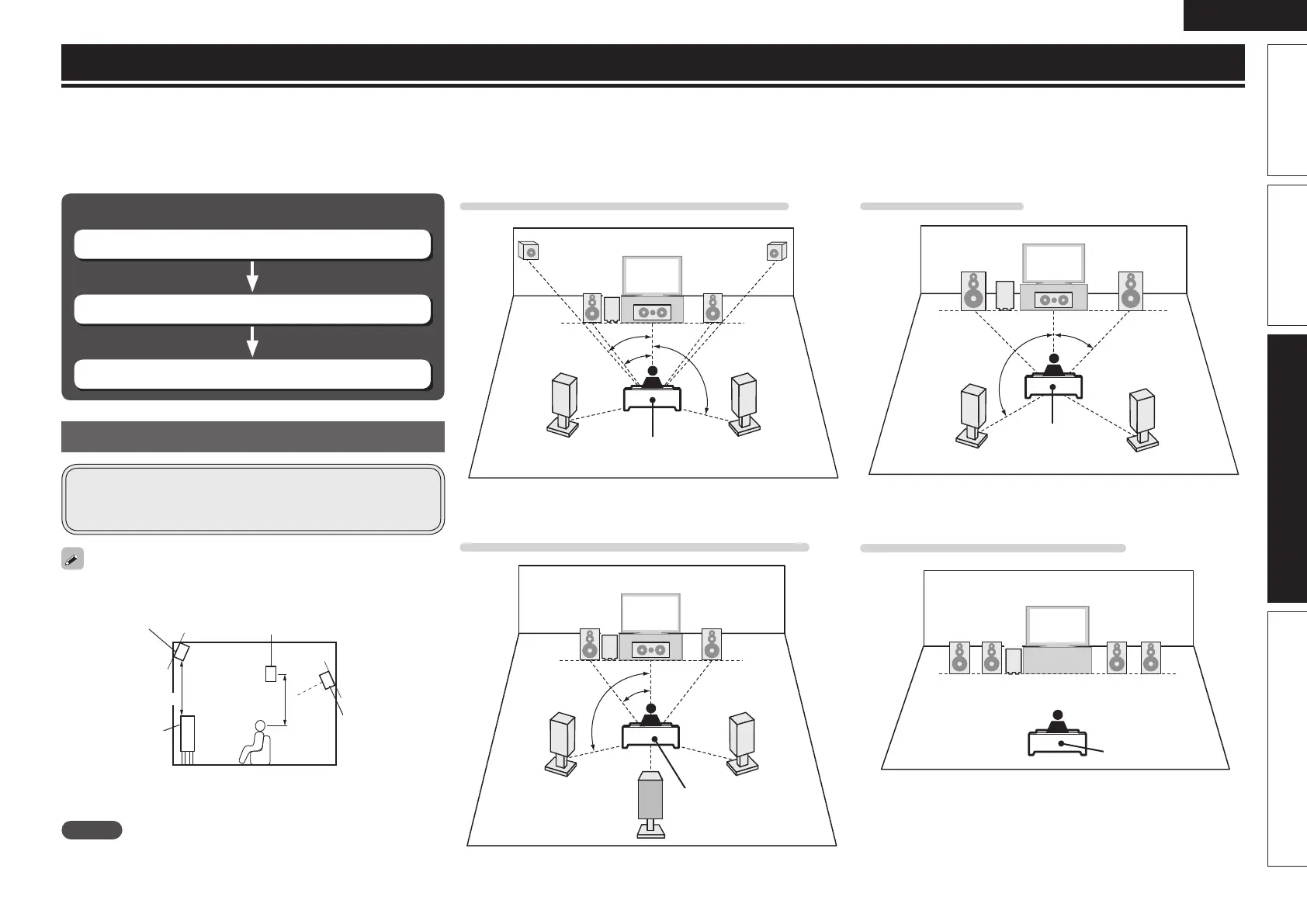

When 5.1ch installed
FL FR
SW
C
SL
SR
z1
z2
Listening
position
z1 22˚ – 30˚ z2 120
When Front A/B speakers installed
FR(A) FR(B)
SW
FL(B) FL(A)
Listening position
FL Front speaker (L) SBL Surround back speaker (L)
FR Front speaker (R) SBR Surround back speaker (R)
C Center speaker FHL Front height speaker (L)
SW Subwoofer FHR Front height speaker (R)
SL Surround speaker (L)
SR Surround speaker (R)
Procedure for speaker settings
Install
Connect (vpage34)
Set up speakers (vpage37)
Install
This unit is compatible with Dolby Pro Logic gz (vpage82),
which offers an even wider and deeper surround sensation.
When using Dolby Pro Logic gz, install front height speakers.
Install the surround back speakers in a position 60 to 90 cm higher
than ear level.
z
Surround
speaker
60 – 90 cm
GViewed from the sideH
Front height
speaker
• Point slightly
downwards
At least
1 m
Surround back
speaker
• Point slightly
downwards
Front
speaker
z Recommended for Dolby Pro Logic gz
NOTE
It is not possible to use the surround back speakers and front height
speakers simultaneously.
When 7.1ch (Front height speaker) installed
FL
FR
FHRFHL
C
SL
SR
SW
z1
z2
z3
Listening position
z1 22˚ – 30˚ z2 22˚ – 45˚ z3 90˚ – 110˚
When 6.1ch (Surround back speaker) installed
FL FR
C
SB
SL
SR
SW
z1
z2
Listening position
z1 22˚ – 30˚ z2 90˚ – 110˚
Speaker installation/connection (Other than 7.1-channel system with surround back speakers)
This section provides the installation, connection, and setup methods of speaker systems other than the 7.1-channel system (with surround back speakers).
For the speaker installation, connection, and setup methods of the 7.1-channel system with surround back speakers, see “Simple version (Simple setup guide)”
(vpage3).
Use the Audyssey
®
Auto Setup function of this unit to automatically detect the number of connected speakers and perform optimal settings for the speakers to
be used.

Denon AVR-2311 Specifications

General

Frequency range	10 - 100000 Hz
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/192kHz
Signal-to-Noise Ratio (SNR)	100 dB
Power output per channel (20-20KHz@8 Ohm)	135 W
HDMI in	6
Audio (L/R) in	8
Composite video in	1
Component video (YPbPr/YCbCr) in	2
Headphone connectivity	6.3 mm
12V trigger	Yes
Connectivity technology	Wired
Speakers connectivity type	-
Ethernet LAN	No
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	56
Supported video modes	1080p
Display	LCD
Product color	Black
Audio decoders	Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS, DTS 96/24, DTS Neo:6, DTS-ES, DTS-HD
Apple docking compatibility	iPhone, iPod
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	1.9 W
Power consumption (typical)	600 W

Weight and Dimensions

Depth	381 mm
Width	434 mm
Height	171 mm
Weight	11200 g
