Denon AVR-2311 User Manual

13
ENGLISH
Advanced versionSimple version InformationBasic version

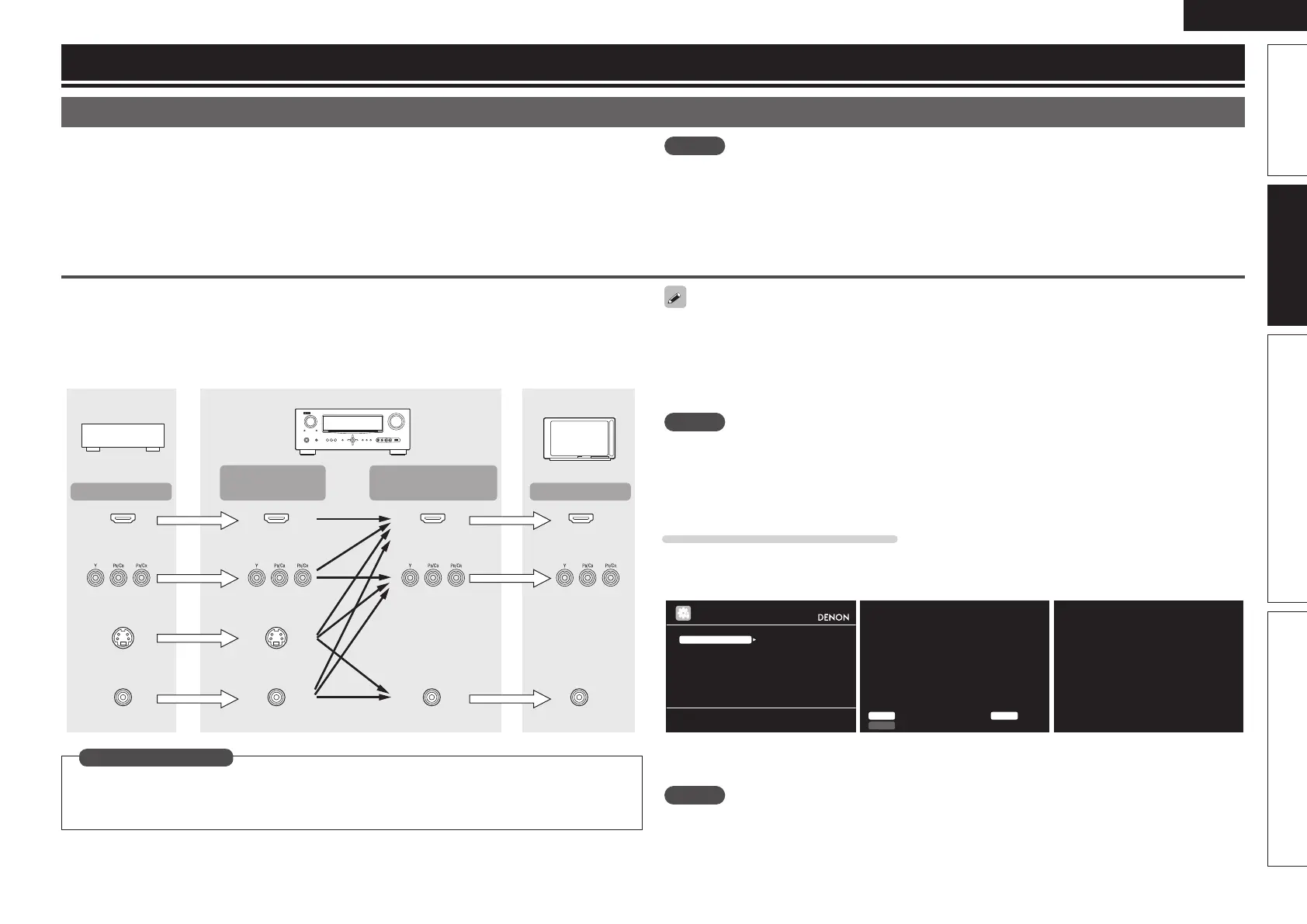

Converting input video signals for output (Video conversion function)
This unit is equipped with four types of video input connectors (HDMI, Component video, S-Video and
video) and two types of video output connectors (HDMI, Component video and video).
Use the connectors corresponding to the components to be connected.
This function automatically converts various formats of video signals input to this unit into the formats used
to output the video signals from this unit to a monitor.
GFlow of video signals for MAIN ZONEH
HDMI connector
Component video
connectors
S-Video connector
Video connector
Monitor
HDMI connector
Component video
connectors
Component video
connectors
Component video
connectors
S-Video connector
Video connector
HDMI
connector
Video connector
HDMI connector
Video connector
Video device
This unit
Output
Input
(IN)
Output
(MONITOR OUT)
Input
• Set when not using the video conversion function.
“Video Convert” (vpage50)
• Set when changing the resolution of the video signal.
“Resolution” (vpage51)
in Set as Necessary
Connections
• The video conversion function supports the NTSC, PAL, SECAM, NTSC 4.43, PAL-N, PAL-M and PAL-60
formats.
• The resolution of the video signal input to this unit’s HDMI connector is the one set at “Resolution”
(vpage51) (1080p HDMI signals and 1080p component signals are output at 1080p, regardless of the
setting).
• Resolutions of HDMI-compatible TVs can be checked at “HDMI Monitor Information” (vpage66).
NOTE
• HDMI signals cannot be converted into analog signals.
• When a non-standard video signal from a game machine or some other source is input, the video
conversion function might not operate.
• Component video input signals cannot be converted into Video format.
• A menu is output via the HDMI connector or component video connector.
Examples of on-screen display
• Menu screen • Status display screen
When the input source is
switched
When the volume is adjusted
Adjust various audio and video parameters
Audio/Video Adjust
Information
Auto Setup
Manual Setup
Input Setup
MENU
Input Auto
STEREO
BD
Mode
Master Volume -80.0dB
Status display: The operating status appears briefly on the screen
when the input source is switched or the volume is
changed.
NOTE
• If you operate the menu while playing back 3D video content, the playback video is replaced by the menu
screen. The playback video is not displayed behind the menu screen.
• This unit does not show the status display while playing back 3D video content.
Important information
• Make connections as follows before using this unit. Select an appropriate connection type
according to the components to be connected.
• You may need to make some settings on this unit depending on the connection method. Refer to
each description for more information.
• Select the cables (sold separately) according to the components being connected.
NOTE
• Do not plug in the power cord until all connections have been completed.
• When making connections, also refer to the operating instructions of the other components being
connected.
• Be sure to connect the left and right channels properly (left with left, right with right).
• Do not bundle power cords together with connection cables. Doing so can result in noise.

Denon AVR-2311 Specifications

General

Frequency range	10 - 100000 Hz
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/192kHz
Signal-to-Noise Ratio (SNR)	100 dB
Power output per channel (20-20KHz@8 Ohm)	135 W
HDMI in	6
Audio (L/R) in	8
Composite video in	1
Component video (YPbPr/YCbCr) in	2
Headphone connectivity	6.3 mm
12V trigger	Yes
Connectivity technology	Wired
Speakers connectivity type	-
Ethernet LAN	No
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	56
Supported video modes	1080p
Display	LCD
Product color	Black
Audio decoders	Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS, DTS 96/24, DTS Neo:6, DTS-ES, DTS-HD
Apple docking compatibility	iPhone, iPod
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	1.9 W
Power consumption (typical)	600 W

Weight and Dimensions

Depth	381 mm
Width	434 mm
Height	171 mm
Weight	11200 g
