ENGLISH
Blu-ray Disc player and TV

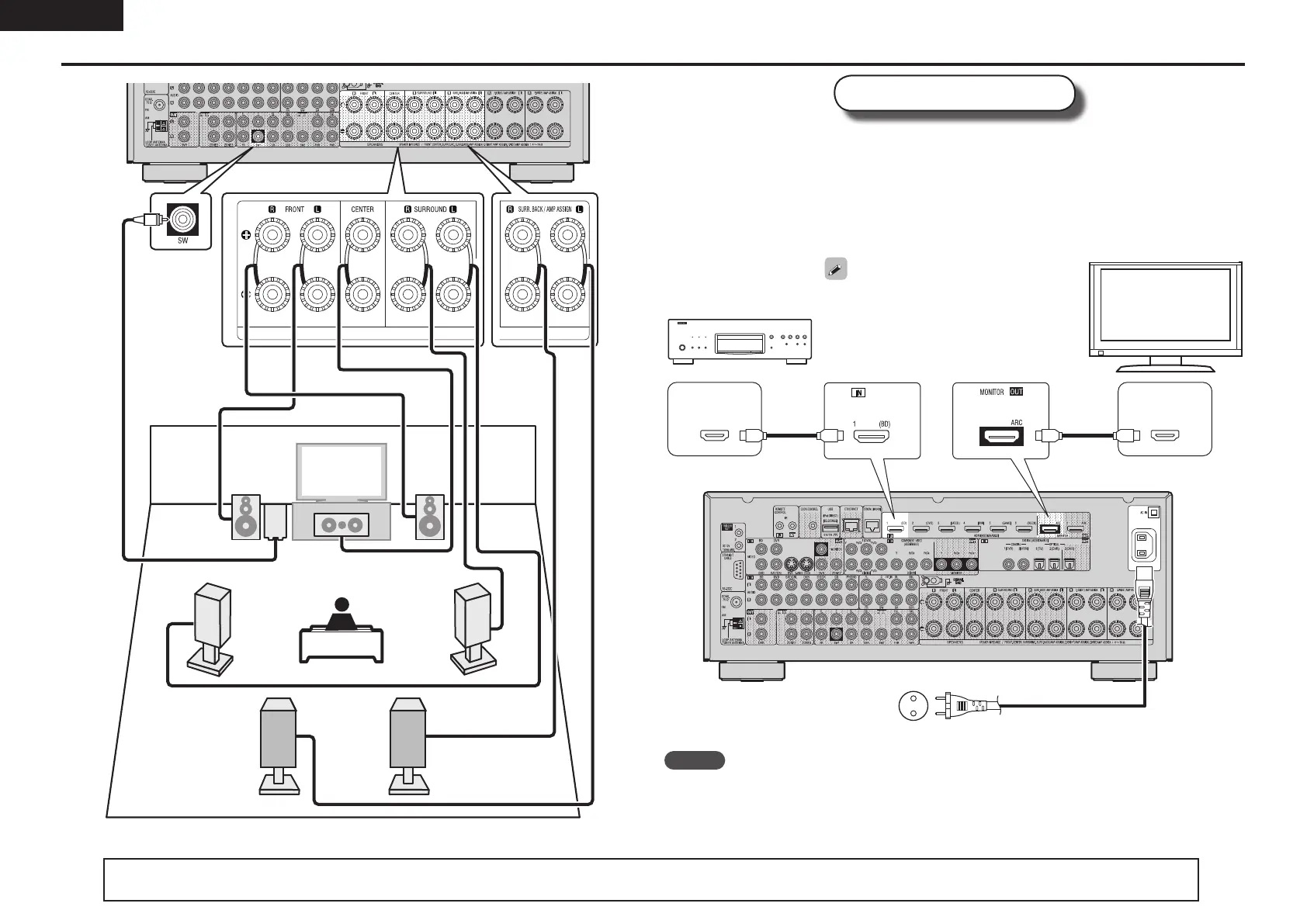

Use only an HDMI (High Defi nition Multimedia Interface) cable that bears the HDMI
logo (a genuine HDMI product). Using a cable without the HDMI logo (a non-genuine
HDMI product) may result in abnormal playback.
When outputting Deep Color or 1080p, etc., we recommend you use a “High Speed
HDMI cable” or a “High Speed HDMI cable with Ethernet”for enhanced high-quality
playback.
IN
HDMI
OUT
HDMI
To household power outlet
(AC 230 V, 50 Hz)
Power cord
(supplied)
HDMI cable
(sold separately)
HDMI cable
(sold separately)
Blu-ray Disc player
TV
If your TV does not support the ARC function
(vpage 16), make the audio connection
referring to “Connecting a TV” (vpage18).
TV sound can be played on this unit.
NOTE
• Do not plug in the power cord until all connections have been completed.
• Do not bundle power cords together with connection cables. Doing so can result in humming or noise.
Connect
FL FR
C
SL
SR
SW
SBL SBR
Speaker cables
(sold separately)
Audio cable
(sold separately)
Subwoofer with
built-in amplifi er
The “Simple version” section provides the speaker installation, connection, and setup methods for the 7.1-channel system with surround back speakers.
For the installing, connecting, and setup methods of speakers other than the 7.1-channel system (with surround back speakers), see page 50 .
