SpecificationsConnections
Component with Multi-channel Output
connectors
46#
800'&3
$&/5&3 463306/%
3-
'30/5
3-
"6%*0
R
L
R
L
R
L
R
L
DVD player / External decoder

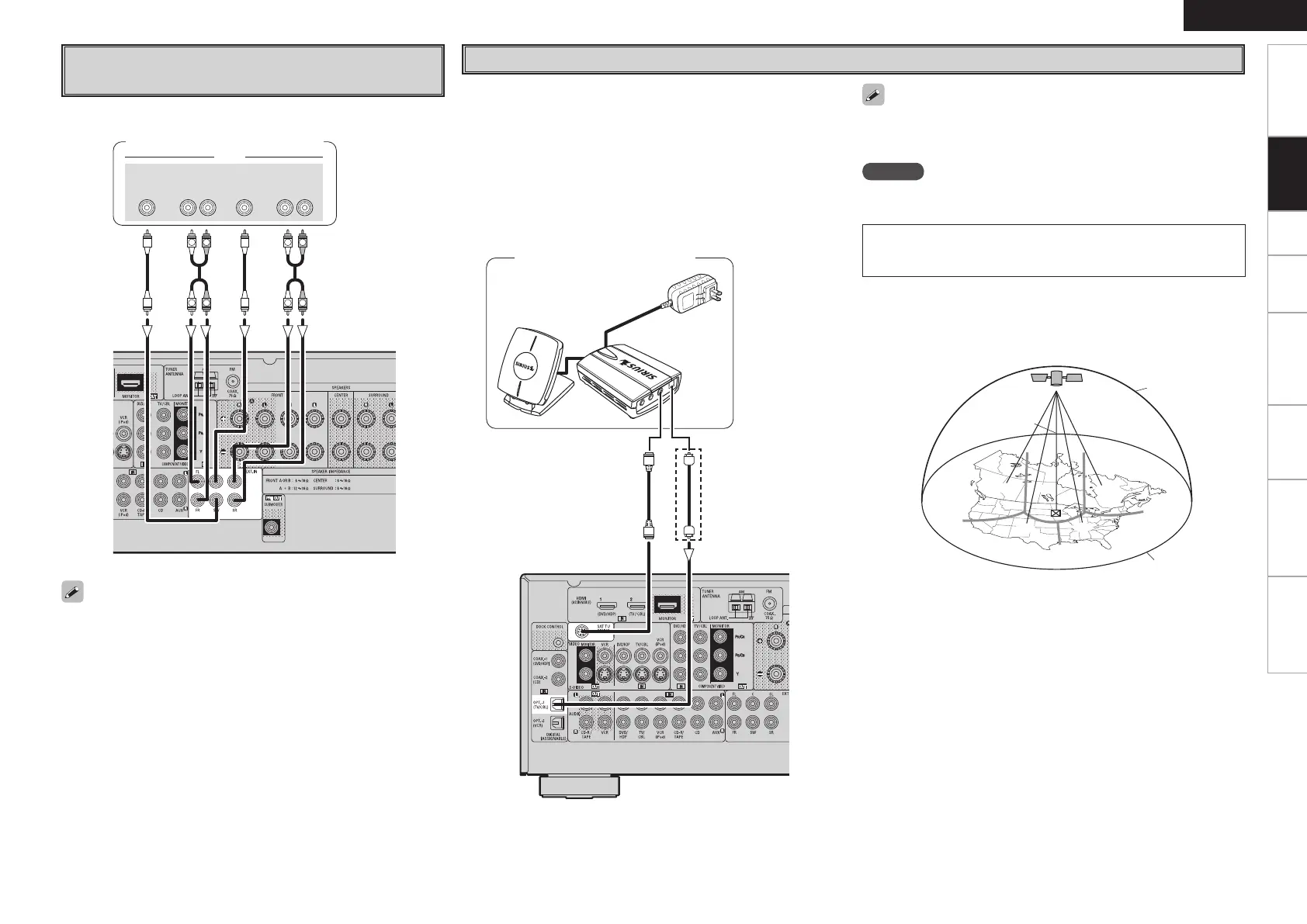

• To play the analog input signals input to the EXT. IN connectors,
press the INPUT MODE button on the main unit or the INPUT button
on the remote control unit and select “EXT. IN” (vpage 34).
• The video signal can be connected in the same way as a DVD player
(vpage 11).
• To play copyright-protected discs, connect the AVR-589’s EXT.
IN connector with the DVD player’s analog multi-channel output
connector.
Select the terminal to use and connect the device.
SIRIUS connector
• The AVR-589 is a SIRIUS Satellite Radio Ready
®
receiver. You can
receive SIRIUS
®
Satellite Radio by connecting to the SiriusConnect
Home Tuner and subscribing to the SIRIUS service.
• Plug the SIRIUS connector on the rear panel.
• Position the Home Tuner antenna near a south-facing window to
receive the best signal.
For details, see “Listening to SIRIUS Satellite Radio Programs”
(vpage 37).
When making connections, also refer to the operating instructions of
the SiriusConnect Home Tuner.
SiriusConnect Home Tuner
b When connecting
digital audio.
NOTE
Keep the power cord unplugged until the SiriusConnect Home Tuner
connection have been completed.
©2006 SIRIUS Satellite Radio Inc. “SIRIUS”, the SIRIUS dog logo,
and channel names and logos are trademarks of SIRIUS Satellite
Radio Inc.
n Positioning the Antenna
For a consistent satellite signal, the antenna must be positioned
correctly. Use the following map to determine which area you are in
and position the antenna accordingly.
q
w
e
r
t
SOUTH
NORTH
WEST
SKY
EAST
HORIZON
Area 1 : Point the antenna toward the sky in the east, northeast, or
southeast, either through a window or outside.
Area 2 : Point the antenna toward the sky in the north or northeast,
either through a window or outside.
Area 3 : Point the antenna toward the sky in the north or northwest,
either through a window or outside.
Area 4 : Point the antenna toward the sky in the west, northwest, or
southwest, either through a window or outside.
Area 5 : Put the antenna outside and point it straight up. The antenna
cannot be used indoors.
When connecting the Optical terminal, set the input Optical terminal
allocations for “System Setup” – “Input Setup” – “Digital In Assign”,
in “SIRIUS”.
