Connecting multi-zone speakers
o

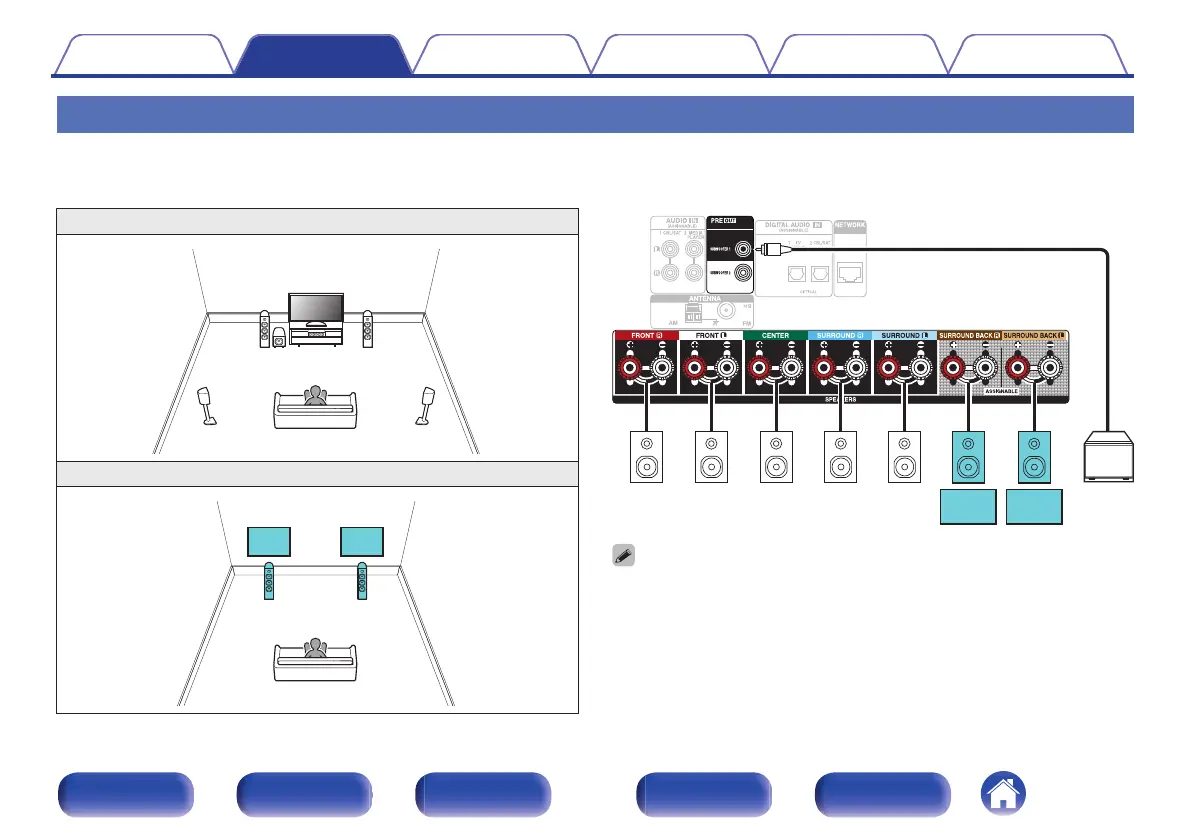

5.1-channel (MAIN ZONE) + 2-channel (ZONE2) speaker connection
This connection method constructs a 5.1-channel speaker system in the MAIN ZONE and a 2-channel system in ZONE2.
MAIN ZONE
FL
SW
C
SL
FR
SR
ZONE2
ZONE2
L
ZONE2
R
ZONE2
R
ZONE2
L
FL
FR
C
SR
SL
SW
0
Set “Amp Assign” to “5.1ch + ZONE2” in the menu. (
v
p. 188)
